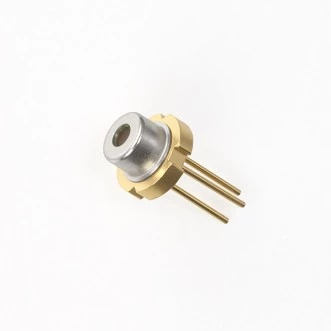

USHIO HL6501MG 658nm 35mW AlGaInP Laser Diode
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2020
Description
The HL6501MG is a high-performance AlGaInP laser diode designed to deliver exceptional visible light output at a typical wavelength of 658 nm. This laser diode is engineered to provide a stable and reliable optical output power of 30mW in continuous wave (CW) mode, making it an ideal choice for applications requiring precise and consistent light emission. Its robust construction and advanced design ensure optimal performance across a wide range of operating conditions.
One of the standout features of the HL6501MG is its ability to maintain performance in varying temperatures, with an operating range from -10°C to +60°C. This versatility makes it suitable for use in diverse environments, ensuring that it can meet the demands of both industrial and consumer applications. Additionally, the built-in monitor diode enhances the reliability of the laser diode by providing real-time feedback on its performance, allowing for precise control and adjustment as needed.
The HL6501MG operates in a single transverse mode with TE mode oscillation, which contributes to its high-quality beam profile. This characteristic is particularly beneficial for applications that require a focused and coherent light source. The laser diode's compact design, combined with its high efficiency and low power consumption, makes it an excellent choice for integration into various optical systems and devices.
Overall, the HL6501MG laser diode is a versatile and reliable component that offers exceptional performance for a wide range of optical applications. Its combination of high output power, stability, and advanced features makes it a valuable addition to any project requiring precise and efficient light emission.
USHIO HL6501MG 658nm 35mW AlGaInP Laser Diode
Specifications |
|
|---|---|
| Center Wavelength: | 0.658 um |
| Output Power: | 35 mW |
| Operating Temperature: | -10 ~ +60 °C |
| Storage Temperature: | -40 ~ +85 °C |
| Threshold Current: | 30-70 mA |
| Operating Current: | 70-120 mA |
| Operating Voltage: | 2.1-3.0 V |
| Beam Divergence Parallel To The Junction: | 7-10.5° |
| Beam Divergence Perpendicular To The Junction: | 18-26° |
| Lasing Wavelength: | 645-665 nm |
| Monitor Current: | 0.05-1.5 mA |
Features
- Visible Red Light Output: Typical 658 nm wavelength for clear, high-visibility applications.
- High Optical Power: Up to 35 mW continuous wave output, 50 mW pulsed.
- Single Transverse Mode: Delivers a stable, clean beam profile for precision applications.
- Built-in Monitor Diode: Enables output stability through feedback control.
- Compact Package: Easy integration into various optical instruments.
- Wide Operating Range: Reliable performance from –10°C to +60°C
Applications
- Laser Leveler: Provides precise, visible reference lines for alignment tasks.
- Laser Scanner: Ideal for barcode and industrial scanning systems.
- Optical Equipment Light Source: Suitable for measurement and analysis tools.
- TE Mode Oscillation Systems: Ensures stable transverse electric mode operation.
Frequently Asked Questions
Yes, the USHIO HL6501MG laser diode has a built-in monitor diode.
The USHIO HL6501MG laser diode can be used as a laser leveler, laser scanner, and light source of optical equipment.
The maximum optical output power of the USHIO HL6501MG laser diode is 35mW.
The operating temperature range for the USHIO HL6501MG laser diode is +60°C.
The wavelength of the USHIO HL6501MG laser diode is 658nm.
