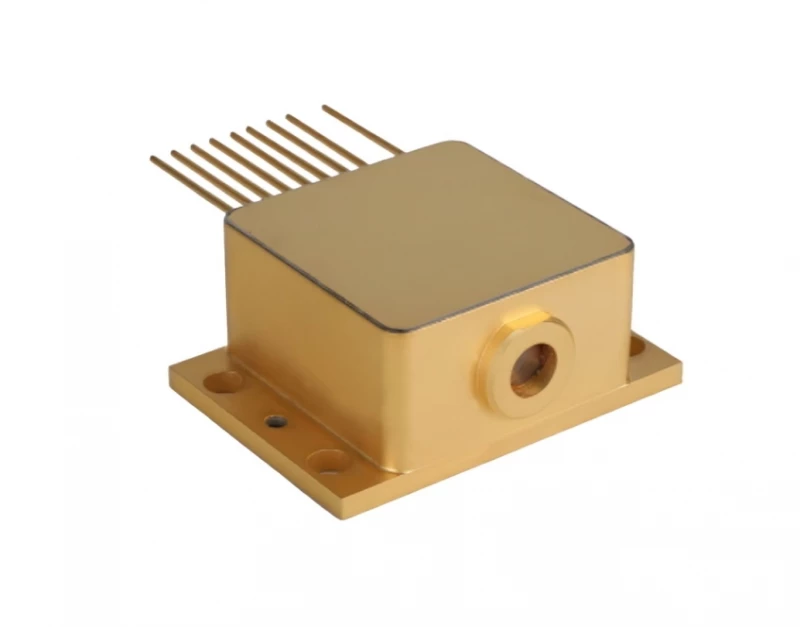

UniMir 14.0um Narrow Linewidth Gas Sensing Quantum Cascade Laser

Name: UniMir 14.0um Narrow Linewidth Gas Sensing Quantum Cascade Laser
Brand: RPMC Lasers, Inc.
Availability: InStock

Description

The UniMir 14.0um Quantum Cascade Laser (QCL) is a cutting-edge solution tailored for hydrogen cyanide (HCN) detection applications. Operating in continuous-wave (CW) mode, it delivers a stable output power of 5mW with remarkable precision and reliability. Featuring a narrow linewidth of <100MHz and a mode-hop-free tuning range of >1cm-1, this laser ensures highly accurate and sensitive gas sensing capabilities. With a vertically linearly polarized beam and <10mrad divergence, it offers superior beam quality and precise targeting.

Its compact design and integrated collimating lens make it suitable for integration into various systems or as a standalone turnkey solution for research and development purposes. The UniMir 14.0um QCL is the ideal choice for applications requiring precise and efficient detection of HCN gas, including environmental monitoring, industrial process control, and gas analysis in diverse settings.

Specifications

Center Wavelength:	14 um
Output Power:	5 mW
Laser Type:	QCL single mode DFB
Mode Of Operation:	CW
Full Accessible Wavelength Range:	~3 cm-1
Continuous Tuning Range:	>1 cm-1
Side Mode Suppression Ratio:	> 25 dB
Linewidth (FWHM):	< 100 MHz
Divergence:	<10 mrad
Beam Quality:	TM00
Polarization:	Linear vertical
Operating Temperature Of The Laser HHL Casing:	+10 to +50 °C
Operating Temperature Of The QCL Chip (for Casing Temperature Of 20°C:	-10 to +10 °C
Storage Temperature:	+10 to +50 °C

Download Data Sheet

Features

DFB Single-Mode QCL

Designed for HCN detection (14µm or 713 cm-1)

5mW CW output power

<100MHz linewidth

1cm-1 Mode-Hop-Free tuning range

Vertically linearly polarized with <10mrad divergence

TEM00 beam quality with 4mm beam diameter

Applications

Hydrogen cyanide (HCN) monitoring

Gas sensing and analysis

Environmental monitoring

Industrial process control

Name

Work Email

Organization (recommended)

Country

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

RPMC Lasers, Inc.

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the operating mode of the UniMir 14.0um Quantum Cascade Laser (QCL)?

The UniMir 14.0µm quantum cascade laser operates in continuous-wave (CW) mode, providing a stable output power of 5mW.

What is the wavelength range of the UniMir 14.0um QCL?

This laser emits at a wavelength of 14.0µm (713 cm-1), specifically designed for hydrogen cyanide (HCN) detection.

What is the linewidth of the UniMir 14.0um QCL?

The linewidth of the UniMir 14.0µm QCL is less than 100MHz, ensuring precise and accurate gas sensing capabilities.

Can the UniMir 14.0um QCL be tuned without mode hopping?

Yes, the UniMir 14.0µm QCL offers a mode-hop-free tuning range of more than 1cm-1, enabling precise wavelength tuning without any mode hopping.

What are the applications of the UniMir 14.0um QCL?

The UniMir 14.0µm QCL is ideal for gas sensing applications, particularly for the detection of hydrogen cyanide (HCN). It can be used in environmental monitoring, industrial process control, and gas analysis tasks.

Is the UniMir 14.0um QCL suitable for integration into systems?

Yes, the UniMir 14.0µm QCL is designed for integration into various systems, thanks to its compact design and integrated collimating lens. It can also serve as a standalone turnkey solution for research and development purposes.
