Description

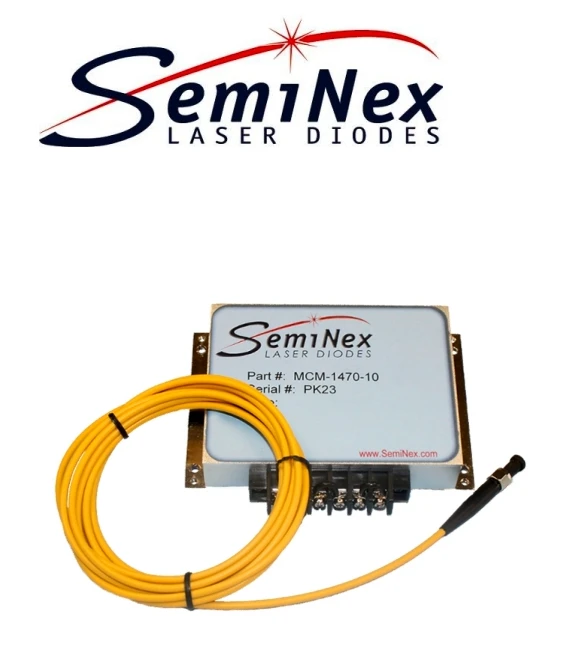

The SemiNex IR Multimode Multi-Chip Module series offers unparalleled power output at infrared wavelengths between 1300 nm and 1700 nm, supporting applications demanding high optical performance. These modules deliver output powers ranging from 10 W to 50 W, with standard center wavelengths at 1470 nm, 1532 nm, and 1550 nm, while custom wavelengths are also available to suit specific system requirements. Each module is designed with monitor photodetectors to ensure reliable lasing operation, and options include bundled or single-core fiber terminations with SMA905 connectors for seamless integration.
SemiNex optimizes its InP laser chip design to achieve superior slope efficiencies up to 2.8 W/A and power conversion efficiencies up to 22%. Integrated red aiming beams with >2 mW output at 650 nm is standard on most models for precision targeting. These high-performance modules are ideal for medical, military, thermal processing, and DPSS pump laser applications, ensuring stable operation with consistent output under demanding conditions. For customized solutions, SemiNex provides engineering support to align with unique optical and electrical specifications, meeting stringent market and customer performance demands.
Multi-Chip Module
Specifications |
|
|---|---|
| Center Wavelength: | 1.5 um |
| Output Power: | 20000 mW |
| Spectral Width: | 10 nm |
| Threshold Current: | 0.7 A |
| Operating Current: | 7.5 A |
| Operating Voltage: | 6 V |
| Bundled Fiber Outer Dia.: | 375 µm |
| Optical Fiber NA: | 0.22 |
| Fiber Length: | 1.5 m |
| Fiber Termination: | SMA905 |
Features
- Wide Wavelength Range: Supports 1300–1700 nm with standard 1470, 1532, and 1550 nm options.
- High Output Power: Available in 10 W, 15 W, 20 W, 25 W, and 50 W configurations.
- Monitor Photodetectors: Integrated for stable lasing operation and performance monitoring.
- Red Aiming Beam: >2 mW at 650 nm for precise targeting and alignment.
- Optimized Slope Efficiency: Up to 2.8 W/A for efficient optical output.
- Flexible Fiber Options: Bundled or single-core fibers with SMA905 terminations.
- Custom Wavelengths Available: Tailored to specific customer application needs.
- Robust Build Quality: Designed for consistent performance with a lead soldering temperature of 250°C.
Applications
- Medical Applications: Suitable for surgical, therapeutic, and diagnostic laser systems requiring reliable IR power.
- Military Systems: Ideal for targeting, range finding, and illumination applications with rugged performance.
- Thermal Processing: Effective for industrial heating, soldering, and material treatment using controlled IR radiation.
- DPSS Pump Lasers: Functions as an efficient pump source for diode-pumped solid-state lasers in high-precision applications.
Frequently Asked Questions
The SemiNex Multi-Chip Module is a combination of multimode, infrared laser diodes into a single module.
The available power options for the SemiNex Multi-Chip Module are 10, 15, 20, 25, and 50 watts.
The standard wavelengths available for the SemiNex Multi-Chip Module are 1470, 1532, and 1550.
The SemiNex Multi-Chip Module is suitable for medical, military, thermal processing, and DPSS pump lasers applications.
Yes, custom wavelengths are available for the SemiNex Multi-Chip Module. Customers can contact SemiNex for additional details.
