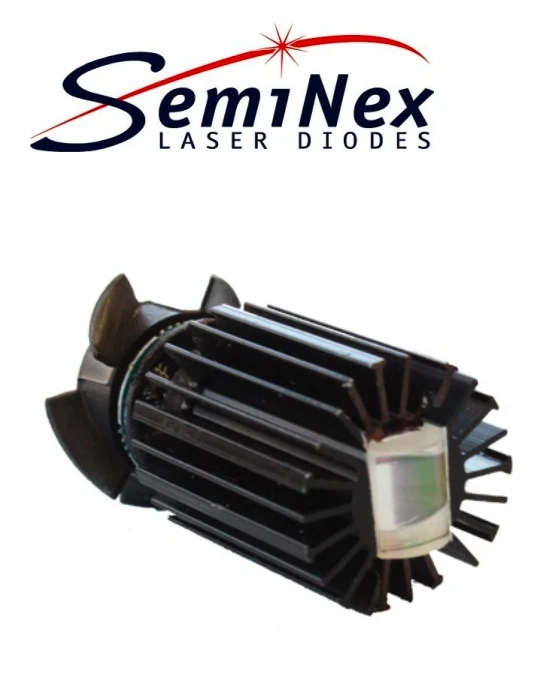

High Power Multi-Mode Laser Engine
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The SemiNex High Power Multi-Mode Laser is engineered to deliver exceptional performance at infrared wavelengths ranging from 13xx to 17xx nm. As a leader in laser technology, SemiNex Corporation specializes in providing the highest available power within this spectrum. Our commitment to innovation ensures that, when necessary, we can further optimize the design of our InP laser chips to meet specific optical and electrical performance needs. This dedication to customization allows us to cater to the unique requirements of our diverse clientele, ensuring that each product is tailored to deliver optimal results.
At the core of our product offering is the ability to produce up to 2 watts of continuous wave (CW) power, with standard wavelengths available at 1460, 1480, 1565, and 1575 nm. For those with specialized needs, custom wavelengths are also available, providing flexibility and adaptability to suit a wide range of applications.
Our lasers are designed with cost-effectiveness in mind, offering low-cost packaging options without compromising on performance or quality. This makes our lasers an ideal choice for businesses seeking high-powered solutions that offer excellent value. Every diode, bar, and package is rigorously tested to ensure it meets the high performance demands of both customers and the market. Our stringent testing protocols guarantee that each product not only meets but exceeds industry standards, providing reliability and durability in various applications.
Whether you require a laser for medical equipment, home applications, or low-cost sensors, the SemiNex High Power Multi-Mode Laser is engineered to deliver superior performance, ensuring that your specific requirements are met with precision and efficiency. For further customization or to discuss your specific needs, our team is ready to assist in tailoring a solution that aligns perfectly with your objectives.
High Power Multi-Mode Laser Engine
Specifications |
|
|---|---|
| Center Wavelength: | 1.46 um |
| Output Power: | 1800 mW |
| Center Wavelength: | 1460 nm |
| Spectral Width: | 10 nm |
| X Axis Divergence: | 9 deg |
| Y Axis Divergence: | <6 deg |
| Threshold Current: | 0.5 A |
| Operating Current: | 6 A |
| Operating Voltage: | 1.4 V |
| Fan Voltage (DC): | 5 VDC |
| Fan Power: | 0.4 W |
| Air Flow: | 3 CFM |
Features
- High Output Power: Delivers up to 2.6 W CW power for demanding infrared applications.
- Multiple Wavelength Options: Available at 1460, 1480, 1565, 1575 nm, and custom wavelengths.
- Low-Cost Packaging: Designed for high volume, cost-effective integration.
- High Efficiency: Power conversion efficiency up to 0.3 W/W in QCW mode.
- Compact P and Q Packages: Suitable for OEM and custom system integration.
- Customizable Divergence: Divergence angles tailored to specific lens and system requirements.
- QCW Capability: Provides higher peak power for pulsed applications with low thermal load.
Applications
- Medical Laser Equipment: Ideal for therapeutic, surgical, and dermatological laser systems requiring high infrared power.
- Home Laser Applications: Supports consumer laser products with reliable, low-cost infrared sources.
- Low-Cost Sensors: Enables high performance in infrared sensing applications with minimal integration cost.
- Range Finding Systems: Suitable for LIDAR and range finding requiring stable and powerful infrared beams.
Frequently Asked Questions
The SemiNex Laser Engine can output up to 2 Watts of CW power.
The standard wavelengths of the SemiNex Laser Engine are 1460, 1480, 1565, and 1575nm.
Yes, custom wavelengths are available for the SemiNex Laser Engine.
The SemiNex Laser Engine can be used in medical laser equipment, home laser applications, low-cost sensors, and range finding.
The SemiNex Laser Engine is available in two package options: Package P with a rectangular heat sink and Package Q with a radial fin heat sink and incorporated fan. An Air Flow Tube for the Laser Engine is also available.
