SCW Series High Power Instrument Laser Modules
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
OSI Laser Diode, Inc. presents its High Power SMF coupled laser modules, meticulously engineered to cater to the stringent performance demands of the optical test equipment industry. The SCW Series lasers, known for their high peak optical power, are adept at serving wavelengths ranging from 1310nm to 1650nm. These lasers are housed in fully hermetic, laser-welded packages, enhancing their reliability and durability in various environments. Additionally, these modules can be equipped with TEC (Thermoelectric Coolers), temperature-sensing thermistors, and back facet monitors, ensuring superior wavelength stability across a broad temperature range.
The design of these laser modules reflects a commitment to quality and precision. With characteristics that perform optimally with and without TEC, they are adaptable to diverse operational conditions. The modules are configured with a single-mode fiber (SMF) 28e, providing a minimum fiber length of one meter for unconnectorized parts, and a precise one meter +/- 0.1 for connectorized pigtails. Such specifications ensure that the modules are versatile and meet the exacting standards required for high-performance optical applications.
Located at 4 Olsen Avenue, Edison, NJ, OSI Laser Diode, Inc. is ISO 9001:2008 certified, underscoring its dedication to quality management and customer satisfaction. The company can be reached via voice at (732) 549-9001 or fax at (732) 906-1559. Their commitment to innovation and excellence is evident in the robust design and reliable performance of their laser modules, making them a trusted partner in the optical test equipment marketplace.
SCW Series High Power Instrument Laser Modules
Specifications |
|
|---|---|
| Center Wavelength: | 1.665 um |
| Output Power: | 180 mW |
| Forward Current: | 1200 mA |
| Center Wavelength: | nm |
| Spectral Width: | nm |
| Operating Temperature Range: | oC |
Features
- Wavelengths: Available in 1310nm, 1550nm, 1625nm, and 1650nm for versatile applications
- High Peak Optical Power: Delivers a pulsed optical power of 180mW for demanding performance requirements
- RoHS Compliant: Environmentally friendly design adhering to global safety standards
- Singlemode Fiber: Equipped with SMF 28e fiber for high precision and stability
- Typical Applications: Ideal for OTDR Instruments, Spectroscopy, Photon Counting, Optical and LOS Sensors, and Talk Sets
- Temperature Options: Available in temperature-controlled or uncooled versions for flexibility in various environments
- Custom Packaging: Options for custom packaging to meet specific needs
- Hermetic Packaging: Fully hermetic laser welded packages ensure durability and performance integrity
- Temperature Stability: Features TEC and temperature sensing thermistors for superior wavelength stability over a wide temperature range

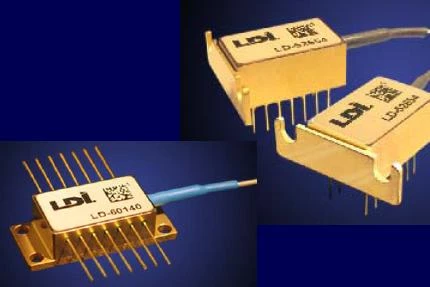

- Multiple Package Options: Available in 14-pin Butterfly and 14-pin DIP Packages, with Floating or Ground Thermistor configurations
Applications
- OTDR Instruments: Enables precise backscatter measurement over fiber networks
- Spectroscopy: Ideal for applications requiring narrow-linewidth, high-intensity pulsed light
- Photon Counting Systems: Provides reliable pulsed sources for low-light detection
- Optical and Line-of-Sight Sensors: Suited for detection and ranging in complex environments
- Fiber Optic Talk Sets: Enhances voice communication over fiber using pulsed light sources
Frequently Asked Questions
The SCW Series High Power Instrument Laser Module is a laser module designed to meet the performance demands of the optical test equipment marketplace. It serves 1310nm through 1650nm wavelengths and is available in fully hermetic laser welded packages.
The SCW Series High Power Instrument Laser Module has options for temperature controlled or uncooled versions and custom packaging. It also includes both TEC and temperature sensing thermistors and back facet monitors for superior wavelength stability over a wide temperature range.
The typical applications of the SCW Series High Power Instrument Laser Module include OTDR Instruments, Spectroscopy, Photon Counting, Optical and LOS Sensors, and Talk Sets.
The characteristics of the SCW Series High Power Instrument Laser Module include a forward current of 1000-1200 mA, a threshold current of 30-45 mA, a forward voltage of 2.2V, and a center wavelength of 1290-1665 nm.
The cooling capacity of the SCW Series High Power Instrument Laser Module is 45oC for cooled modules only.
