SCW 1532-500R High Power Pulsed Laser Diode Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description

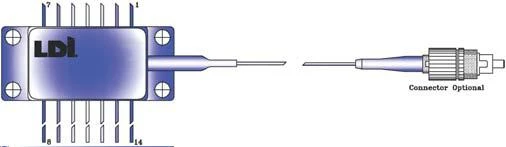

The SCW 1532-500R laser diode module is a sophisticated and high-performance device designed for demanding optical test equipment applications. This module operates at a wavelength of 1550 nm and is built using an Aluminum Ridge Waveguide (RWG) Fabry-Pérot (F/P) laser diode. It is encased in a robust 14-pin butterfly package, ensuring durability and reliability. The laser diode is optically coupled to a single-mode fiber (SMF) pigtail, which facilitates efficient light transmission. Additionally, the module integrates a thermoelectric cooler and an electrically isolated temperature sensing thermistor, providing precise thermal management to maintain optimal operating conditions.
Designed with high peak pulsed optical power in mind, the SCW 1532-500R is ideal for applications requiring robust performance and reliability. The module is fully compliant with the Restriction of Hazardous Substances (RoHS) directive, underscoring its environmentally friendly design. It is engineered to operate efficiently within a wide temperature range, making it suitable for various environments and conditions.
Safety and handling precautions are paramount for the SCW 1532-500R laser diode module. Electrostatic discharge (ESD) precautions are necessary to protect the device from potential damage. The module is classified as IEC Class 1 when operated under rated conditions, ensuring that normal aversion reactions will mitigate any radiation hazards to the eyes. Users are advised to consult their product purchase agreement or contact their LDI sales representative for warranty details and additional information. Please note that OSI Laser Diode Incorporated reserves the right to modify product specifications and information without prior notice.
SCW 1532-500R High Power Pulsed Laser Diode Module
Specifications |
|
|---|---|
| Center Wavelength: | 1.55 um |
| Output Power: | 500 mW |
| Operating Temp. Range: | oC |
| Threshold Current: | 70 mA |
| Forward Voltage: | 3 V |
| Spectral Width (RMS): | 12 nm |
| Pulse Droop: | 20 % |
| Cooling Capacity: | 40 oC |
| Monitor Dark Current: | 100 nA |
Features
- High Power 1550 nm Laser Diode Module: The SCW 1532-500R is a high power pulsed laser diode module operating at a wavelength of 1550 nm, ideal for optical test equipment applications.
- 14-Pin Butterfly Package: Packaged in a compact 14-pin butterfly package, ensuring reliable performance and easy integration.
- Optically Coupled to SMF Fiber Pigtail: Provides a stable optical output through single-mode fiber, suitable for precise applications.
- Thermoelectric Cooler and Thermistor: Includes a thermoelectric cooler and an electrically isolated temperature sensing thermistor for optimal temperature management.
- RoHS Compliant: Environmentally friendly design adhering to RoHS standards.
- Peak Pulsed Optical Power: Delivers high peak pulsed optical power, essential for demanding test equipment applications.
- IEC Class 1 Safety: Safe to operate under rated conditions, adhering to IEC Class 1 standards.
- Wide Operating Temperature Range: Functions efficiently between 0°C to 65°C, with a storage temperature range of -40°C to 85°C.
- Cooling Capacity: Offers a cooling capacity of up to 40°C, ensuring stable performance under various conditions.
Applications
- Optical Spectrum Analyzers (OSA): Ideal for generating precise test signals in optical measurements.
- Optical Time Domain Reflectometry (OTDR): Suitable for high-resolution fiber characterization.
- Optical Test and Measurement Systems: Provides high-power pulsed output for equipment calibration and validation.
- Fiber Optic Component Testing: Enables detailed evaluation of passive and active optical components.
- Telecommunication Labs and R&D: Supports next-gen telecom hardware testing and prototyping.
Frequently Asked Questions
The SCW 1532-500R laser diode module is specifically designed for optical test equipment applications where high peak pulsed optical power is desired.
The laser diode is optically coupled to an SMF fiber pigtail and includes a thermoelectric cooler and an electrically isolated temperature sensing thermistor.
Yes, the device is RoHS compliant.
Please refer to your product purchase agreement for complete details or check with your LDI sales representative.
The characteristics of the SCW 1532-500R laser diode module include a high power 1550 nm Al RWG F/P laser diode packaged in a 14 pin butterfly package, with optical power of 500 mW, threshold current of 70 mA, and forward voltage of 23V. Detailed package drawing is available upon request.
