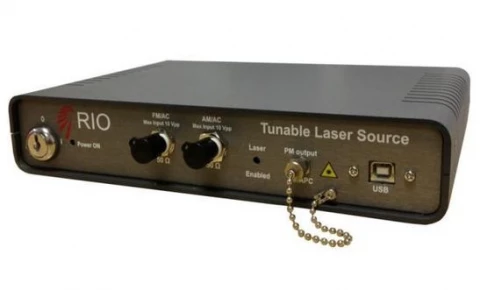

RIO COLORADO Widely Tunable 1550nm Narrow Linewidth Laser Source (L-Band)
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
RIO (OptaSense, Inc) -
On FindLight:
since 2015
Description
The RIO COLORADO laser source is a state-of-the-art, compact benchtop solution that leverages semiconductor external cavity laser technology. Designed to deliver exceptional performance, this laser source offers a wide wavelength tuning range across both the C-band (1530nm-1565nm) and L-band, making it an ideal choice for a variety of advanced applications. Its single longitudinal mode ensures precision, while its low phase and frequency noise contribute to its high stability and reliability.
One of the standout features of the RIO COLORADO laser source is its narrow linewidth, which allows for a long coherence length. This characteristic, combined with ultra-low relative intensity noise (RIN) and excellent side mode suppression ratio (SMSR), ensures superior performance in demanding environments. The laser's polarization-maintaining (PM) output and fast frequency modulation capabilities further enhance its versatility and usability.
Designed with user convenience in mind, the RIO COLORADO laser source is easy to set up and operate. It includes a digital controller and firmware, with an intuitive USB interface and graphical user interface (GUI) provided by RIO. This makes external monitoring and control straightforward, facilitating seamless integration into various systems. The compact size and low power consumption of the laser source make it an efficient and practical choice for research and development in fields such as fiber optic sensing, metrology, and coherent communications.
RIO COLORADO Widely Tunable 1550nm Narrow Linewidth Laser Source (L-Band)
Specifications |
|
|---|---|
| Center Wavelength: | 1.55 um |
| Output Power: | 20 mW |
| Output Power Range: | mW |
| Wavelength Tuning Range (L-Band): | nm |
| Side Mode Suppression Ratio: | 55 dB |
| Optical Signal To Noise Ratio: | 60 dB |
| Relative Intensity Noise (> 10kHz): | -140 dB/Hz |
| Relative Intensity Noise (25MHz To 1GHz): | -165 dB/Hz |
| Optical Isolation: | 30 dB |
| Linewidth, FWHM: | 25 kHz |
Features
- Wide Wavelength Tuning Range: Covers both C-band (1530nm-1565nm) and L-band, including ITU wavelengths
- Single Longitudinal Mode: Ensures precise and stable laser output
- Low Phase and Frequency Noise: Delivers superior signal quality
- Narrow Linewidth and Long Coherence Length: Ideal for high-resolution applications.
- Ultra Low RIN: Provides exceptional signal integrity
- Excellent SMSR: Delivers high side-mode suppression ratio for cleaner signals
- PM Output: Polarization-maintaining output for consistent performance
- Fast FM Modulation: Supports rapid frequency modulation for dynamic applications
- Compact Size and Low Power Consumption: Easy to integrate into various setups
- Easy to Set-Up and Use: User-friendly with digital controller, firmware, USB interface, and GUI
- High Wavelength Stability: Maintains consistent performance over time
- Reliable and Proven Components: Utilizes Telcordia qualified and industry-proven parts for durability
- External Monitoring and Control: Accessible via USB interface with RIO-supplied software and GUI
- Versatile Applications: Suitable for R&D, fiber optic sensing, metrology, laser spectroscopy, LIDAR, and more
Applications
- Interferometric fiber optic sensing
- Acoustic sensing
- LIDAR
- Laser spectroscopy
- Metrology
- Coherent Communication
- Test & Measurement
Frequently Asked Questions
The wavelength tuning range is C-band, 1530nm-1565nm, including ITU wavelength. L-band is also available.
The key characteristics include low phase/frequency noise, narrow linewidth, long coherence length, low relative intensity noise (RIN), high wavelength stability, frequency modulation, and AM trace tone.
The RIO COLORADO laser source is ideal for R&D and development of advanced fiber optic sensing and metrology applications, such as laser spectroscopy, interferometric/acoustic sensing, coherent communications, LIDAR, and others.
Yes, the RIO COLORADO laser source comes with a digital controller and firmware, USB interface, and GUI for easy set-up and use.
The RIO COLORADO laser source is compact in size and has low power consumption.
