Description
The C-band Narrow Linewidth Laser Module houses a proprietary driver/controller and the OEwaves laser source which is based on a high quality factor (Q) Whispering Gallery Mode (WGM) micro-resonator. The laser is scalable to a variety of wavelengths within 780-2200 nm range.
The unique technology of the OEwaves Narrow Linewidth Laser Module leverages the self-injection locking of a suitable commercially available laser diode via a resonant optical feedback from a high-Q WGM micro-resonator. Its monolithically integrated approach, along with micro-scale mass and volume, make the laser virtually insensitive to environmental vibrations.

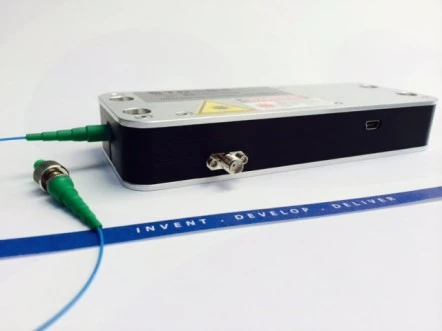

OEwaves Ultra-Narrow Linewidth C-Band Lasers
Specifications
Center Wavelength: | 1.55 um |
---|---|
Output Power: | 10 mW |
Frequency Noise Floor: | < 1 Hz/rt-Hz |
Module Size: | 2.3 x 6 x 1 in^3 |
Thermal Tuning Range: | 30-50 GHz |
FM Bandwidth-Optional: | DC-100 kHz |
Instantaneous Linewidth: | <30 Hz |
Features
- Ultra-Narrow Instantaneous and Dynamic Laser Linewidth
- Ultra-Low Phase/Frequency Noise
- 1530-1565nm Support
- Wide Thermal Tuning Range
- Low Vibration Sensitivity
- Low Residual Amplitude Modulation
- Wavelength Stability
- Compact Package
- Integrated Driver/Controller
- USB or RS232 Control Interface
Applications
- Interferometric Optical Sensing
- LIDAR
- B-OTDR Temperature and Strain Gas Sensing
- Optical Metrology and Spectroscopy
- Acoustic Sensing
- Oil and Gas Exploration
- Coherent Communication
- Test and Measurement
Frequently Asked Questions
What is the wavelength range of the OEwaves Ultra-Narrow Linewidth C-Band Lasers?
The laser is scalable to a variety of wavelengths within 780-2200 nm range.
What is the technology used in the OEwaves Narrow Linewidth Laser Module?
The unique technology of the OEwaves Narrow Linewidth Laser Module leverages the self-injection locking of a suitable commercially available laser diode via a resonant optical feedback from a high-Q WGM micro-resonator.
What are the applications of the OEwaves Ultra-Narrow Linewidth Laser Module?
The applications of the OEwaves Ultra-Narrow Linewidth Laser Module include Interferometric Optical Sensing, LIDAR, B-OTDR Temperature and Strain Gas Sensing, Optical Metrology and Spectroscopy, Acoustic Sensing, Oil and Gas Exploration, Coherent Communication, Test and Measurement.
What is the Laser Safety standard for the OEwaves Ultra-Narrow Linewidth Laser Module?
This product meets the appropriate standard in Title 21 of the Code of Federal Regulations (CFR) 1040 and is classified as a FDA/CDRH Class 3b laser product.
What is the Short Term Stability of the OEwaves Ultra-Narrow Linewidth Laser Module?
The Short Term Stability of the OEwaves Ultra-Narrow Linewidth Laser Module is 10-10 Ν 1 Ý At.
