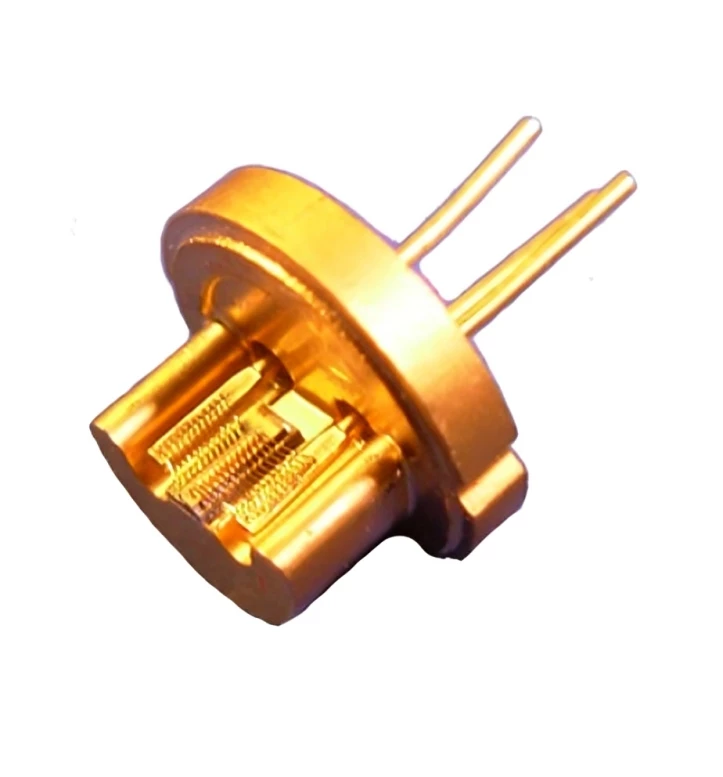

Non-Pulsed TO9-126 High Power Single-Mode and Multi-Mode Laser Diode

Name: Non-Pulsed TO9-126 High Power Single-Mode and Multi-Mode Laser Diode
Brand: RPMC Lasers, Inc.
Availability: InStock

Description

The Non-Pulsed TO9 High Power Single-Mode and Multi-Mode Laser Diode by SemiNex represents a pinnacle of performance in the infrared spectrum, spanning wavelengths from 12xx to 19xx nm.

Engineered with meticulous attention to detail, these laser diodes are optimized to meet the specific optical and electrical requirements of diverse applications. Boasting exceptional features such as high output power, efficiency, and dynamic range, they offer a cost-effective solution for a range of industries, including OEM and professional medical, LiDAR, military/aerospace, and illumination.

With custom wavelength options available, users can tailor the diodes to suit their precise needs. Packaged in a standard low-cost TO9 package, these laser diodes are designed to deliver consistent performance and reliability. Whether used in medical diagnostics, remote sensing, or defense applications, the Non-Pulsed TO9 laser diode ensures superior performance and versatility, making it an indispensable component in cutting-edge technologies.

Specifications

Center Wavelength:	1.48 um
Output Power:	1800 mW
Chip Cavity Length:	2500 μm
Emitter Width:	95 μm
Emitter Height:	1 μm
Spectral Width:	10 nm 3dB
Slope Efficiency:	0.30 W/A
Fast Axis Divergence FWHM:	28 deg
Slow Axis Divergence FWHM:	9 deg
Power Conversion Eff.:	13 %
Operating Current:	8.0 A
Threshold Current:	0.5 A
Operating Voltage:	1.7 V
Weight:	1.5 g
Operating Temperature:	-40 to +60 °C
Storage Temperature:	-40 to +80 °C

Download Data Sheet

Features

Cost-effective solution
High output power
High dynamic range
High efficiency
Standard low-cost package
Custom wavelengths available
Lensed options available

Applications

OEM Medical
Professional Medical
LiDAR
Military/Aerospace
Illumination

Name

Work Email

Organization (recommended)

Country

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

RPMC Lasers, Inc.

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the typical output power of the Non-Pulsed TO9 laser diode?

The typical output power of the Non-Pulsed TO9 laser diode is 1.80 watts, with a variance of ±10%.

What are the primary applications of this laser diode?

This laser diode is commonly used in OEM medical devices, professional medical equipment, LiDAR systems, military/aerospace technologies, and illumination solutions.

Can the wavelength of the laser diode be customized?

Yes, the laser diode offers custom wavelength options within the range of 12xx to 19xx nm to suit specific application requirements.

What are the key features of the Non-Pulsed TO9 laser diode?

The laser diode is known for its cost-effectiveness, high output power, high efficiency, high dynamic range, and standard low-cost TO9 packaging.

What is the operating temperature range of the laser diode?

The laser diode operates within a temperature range of -40 to 60 °C, ensuring reliability in various environmental conditions.

Does the laser diode come with any heat sink options?

The specifications assume a constant heat sink temperature of 20°C. Heat sinking options vary based on whether the TO9 package is capped or uncapped.

What is the electrical power conversion efficiency of the laser diode?

The electrical power conversion efficiency of the Non-Pulsed TO9 laser diode is rated at 13%.

Is there a minimum threshold current required for operation?

Yes, the minimum threshold current required for operation is 0.5 A.

Can the laser diode withstand high temperatures during operation?

The laser diode is designed to operate within specified temperature limits, and exceeding these limits may reduce performance and mean time to failure (MTTF).
