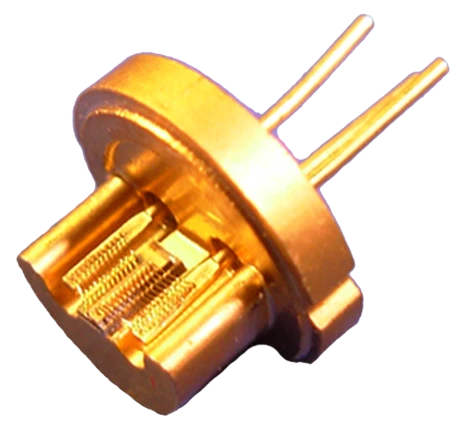

Non-Pulsed TO9-105 High Power Single-Mode and Multi-Mode Laser Diode
Description
SemiNex SMX15XX Laser Diode delivers exceptional power and precision with wavelengths ranging from 12xx to 19xx nm, catering to various industrial and medical applications. Engineered for reliability, these laser diodes undergo rigorous testing to meet the highest performance standards.
With customizable options available, SemiNex ensures that each diode is optimized to meet specific optical and electrical requirements. The diodes feature a standard low-cost package, making them cost-effective without compromising on quality or performance.
With high output power, efficiency, and dynamic range, these diodes are ideal for OEM and professional medical devices, LiDAR systems, military/aerospace applications, and illumination tasks. Whether used in medical diagnostics, environmental sensing, or defense systems, SemiNex laser diodes offer unparalleled performance and versatility. Backed by SemiNex's commitment to innovation and quality, these laser diodes provide reliable and efficient solutions for a wide range of applications.
Non-Pulsed TO9-105 High Power Single-Mode and Multi-Mode Laser Diode
Specifications |
|
|---|---|
| Center Wavelength: | 1.565 um |
| Output Power: | 400 mW |
| Chip Cavity Length: | 2500 μm |
| Emitter Width: | 4 μm |
| Emitter Height: | 1 μm |
| Spectral Width: | 10 nm 3dB |
| Slope Efficiency: | 0.30 W/A |
| Fast Axis Divergence FWHM: | 30 deg |
| Slow Axis Divergence FWHM: | 10 deg |
| Power Conversion Eff.: | 10 % |
| Operating Current: | 1.2 A |
| Threshold Current: | 0.05 A |
| Operating Voltage: | 2.5 V |
| Weight: | 1.5 g |
| Operating Temperature: | -40 to +60 °C |
| Storage Temperature: | -40 to +80 °C |
Features
- Cost effective
- High Output Power
- High Dynamic Range
- High Efficiency
- Standard Low-Cost Package
Applications
- OEM Medical
- Professional Medical
- LiDAR
- Military / Aerospace
- Illumination
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The SMX15XX Laser Diode operates within the wavelength range of 12xx to 19xx nm.
The SMX15XX Laser Diode is suitable for various applications including OEM medical devices, professional medical equipment, LiDAR systems, military/aerospace applications, and illumination tasks.
The key features include high output power, high efficiency, high dynamic range, and a standard low-cost package.
Yes, the wavelength of the SMX15XX Laser Diode can be customized to meet specific optical and electrical requirements.
The laser diodes undergo rigorous testing to meet customer and market performance demands.
The SMX15XX Laser Diode operates within a temperature range of -40 to 60°C.
Users should adhere to safety guidelines provided by SemiNex Corporation and ensure proper handling to prevent accidents or injuries.
For additional details or to discuss specific requirements, please contact RPMC Lasers using the "Contact Supplier" button.
