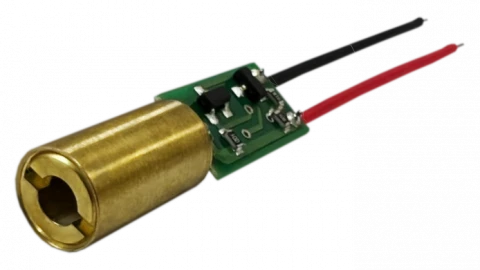

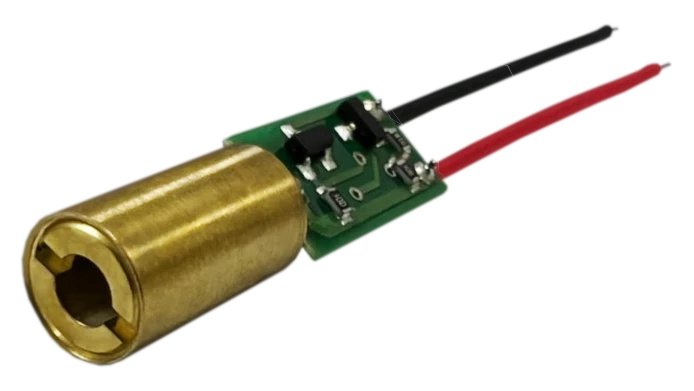

Thumbnail of 650nm 0.9mW Laser Module - AD65010010 photo 1

Description

The EEL M6.5 is a premier 650nm diode laser module known for its unmatched optical quality and clarity. Designed for precision, this module guarantees high stability and delivers a consistently robust optical output power, making it a leader in the 650nm category. One of its standout features is its remarkable shock resistance coefficient, ensuring it remains unfazed by external disruptions.

With a Mean Time To Failure (MTTF) that exceeds 20,000 hours, this 650nm diode laser module promises both durability and extended operational life. Its compact and lightweight design not only ensures easy integration but also underlines its advanced engineering. The meticulous design also ensures minimal optical axis deviation, which, in turn, results in heightened measurement accuracy for users.

The universally recognized M6.5 dimension is especially tailored for businesses keen on leveraging the benefits of a standard 650nm diode laser module size. Perfect for initial product development stages, the EEL M6.5 accelerates the production process, ensuring your product achieves market readiness swiftly.

650nm 0.9mW Laser Module - AD65010010

Visit the LECC Technology Co., Ltd. Store

Specifications

Center Wavelength: 0.65 um
Output Power: 0.5 mW
CW Optical Power Range: 0.5 - 0.9 mW
Wavelength At Peak Emission: 640 - 660 nm
Operating Current: 20 mA
Operating Voltage: 2.4 V
Operating Temp. Range: -10 to 50 °C
Storage Temp. Range: -40 to 85 °C
Spot Size At 5m: 8 mm
Driving Circuit: APC
Lens Material: Plastic Lens

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Common public version, saving development costs
  • High stability
  • High seismic coefficient

Applications

  • Sensing Devices: Perfect for sensors of various kinds.
  • Robotics: Appropriate for use in sweeper robots.
  • Scanning: Ideal for barcode scanning applications.
  • Mapping: Suitable for SLAM (Simultaneous Localization and Mapping).

Frequently Asked Questions

What makes the EEL M6.5 stand out in terms of optical quality?
It offers exceptional optical performance, high stability, and stable optical output.
How long is the expected lifespan of this product?
The Mean Time To Failure (MTTF) is greater than 20,000 hours.
What are the primary applications for the EEL M6.5?
It is mainly used in sensors, sweeper robots, barcode scanning, and SLAM.
How does the standard size of M6.5 benefit developers?
M6.5 being a common standard size accelerates the product development and production process, reducing lead times.
Is there any specific safety gear recommended while working with this laser?
Yes, safety goggles are essential when observing or working directly with the laser to avoid potential eye damage.
What is the typical emission wavelength of EEL M6.5?
The typical emission wavelength is 650nm, with a range from 640nm to 660nm.
What precautions should be observed during soldering?
The die-pad temperature should remain below 160°C. The iron temperature should be kept below 180°C and should only be applied for a maximum of 3 seconds.
Can the laser diode handle surges or static electricity?
The laser diode is sensitive to ESD and surges. It's imperative to ground the device, wear anti-static clothing, use recommended power supplies, and follow other precautions to ensure its safety.
What material is the lens made of?
The lens is crafted from plastic.
Is there a specific focus on the size or weight for the EEL M6.5?
Yes, the EEL M6.5 is designed to be small in size and lightweight, making it versatile for a range of applications.

Got more questions? Use the inquiry form to ask the supplier directly.
