The EEL M10 (FD65506530A) is a compact 650nm red laser diode module engineered for industrial environments where reliability, stability, and precision are critical. Delivering a continuous-wave optical output of 1.8 to 2.5mW, it is well-suited for applications that require a clearly visible red spot at medium distances, such as tool alignment, industrial positioning, and auxiliary aiming. The design focuses on providing a robust, long-lifetime solution that can withstand the electrical, thermal, and mechanical stresses commonly encountered in factory and field use.

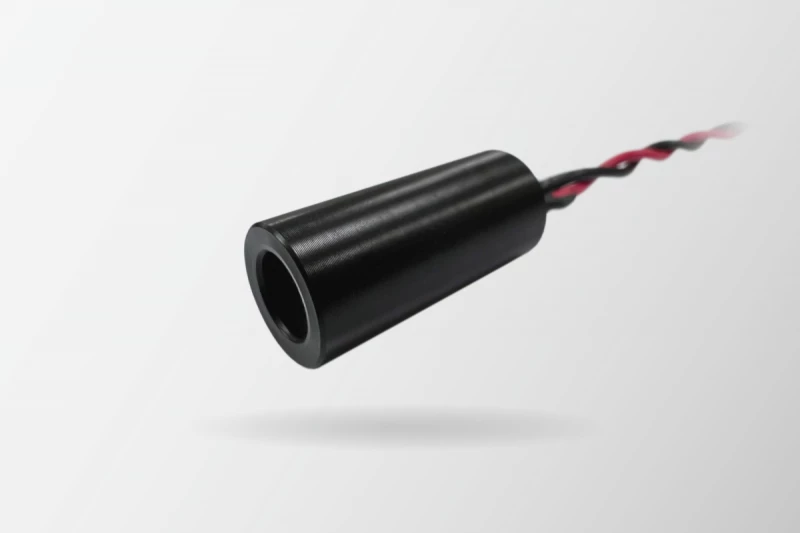

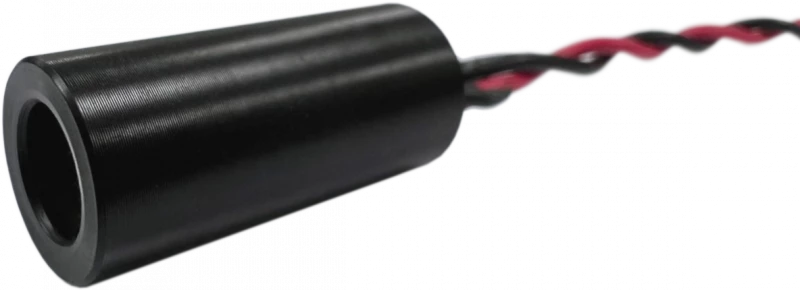

This laser module features an aluminum housing with an anode surface treatment that significantly improves scratch resistance, corrosion resistance, and overall durability. The aluminum construction, combined with good thermal conduction, allows efficient heat dissipation from the laser diode, supporting longer operating life and stable performance over time. Compared with many entry-level plastic-encapsulated modules on the market, the EEL M10 offers a more rugged construction and enhanced protection for the internal optics and electronics, making it highly suitable for integration into handheld power tools and industrial instruments.

Operating at a nominal 3 V and up to 35 mA, the EEL M10 is designed with an APC (Automatic Power Control) driving circuit. This integrated circuit monitors and automatically regulates the optical output, helping maintain a steady 1.8–2.5mW power level despite variations in supply voltage or temperature. The result is more consistent brightness, reduced risk of overdrive conditions, and extended diode lifetime. The use of a glass lens, rather than resin optics, contributes to stable optical performance over a wide temperature range, reduced susceptibility to yellowing or deformation, and improved resistance to cleaning agents and environmental contaminants.

With a peak emission wavelength centered at 650nm, the EEL M10 produces a bright, clearly visible red beam that is easy to detect against a wide variety of surfaces. At a distance of 5 meters, the typical spot size is approximately 5mm, offering a clean, well-defined point that is ideal for alignment and targeting applications. This balance of power and spot size makes the module suitable as a visual guide in production lines, machine vision aiding, and hand tool alignment, while maintaining an output level that facilitates easier integration into systems requiring laser safety considerations.

The EEL M10 is built to operate in environments where temperature fluctuations and mechanical stress are expected. It supports a broad operating temperature range from -10°C to +50°C, ensuring dependable performance in typical indoor industrial conditions as well as many semi-outdoor uses. Storage is possible from -40°C up to +80°C, allowing the module to survive warehouse, transport, and equipment shipping conditions without performance degradation when used within its specified limits. The structure and materials offer good insulation and a high temperature resistance coefficient, giving it an advantage in demanding tool and equipment assemblies.

Typical application areas for the EEL M10 650nm laser module include power tools and hand tools that require an integrated red sight line or point, industrial tool positioning systems that need a stable reference spot, and auxiliary positioning in specialized equipment such as pet CT and MRI systems where a visible beam helps operators quickly and accurately align subjects or components. Its strong adaptability to diverse environments, together with a cost-effective design, makes this module a compelling choice for OEMs and system integrators looking to add reliable laser targeting or indication functionality to their products.

By combining a robust aluminum housing, glass optics, integrated APC drive, and carefully defined electrical and thermal characteristics, the EEL M10 delivers an optimal balance of durability, performance, and price. It is designed to meet the requirements of modern industrial and tool manufacturers that need a compact red laser module capable of long-term, stable operation in real-world conditions.
