Description

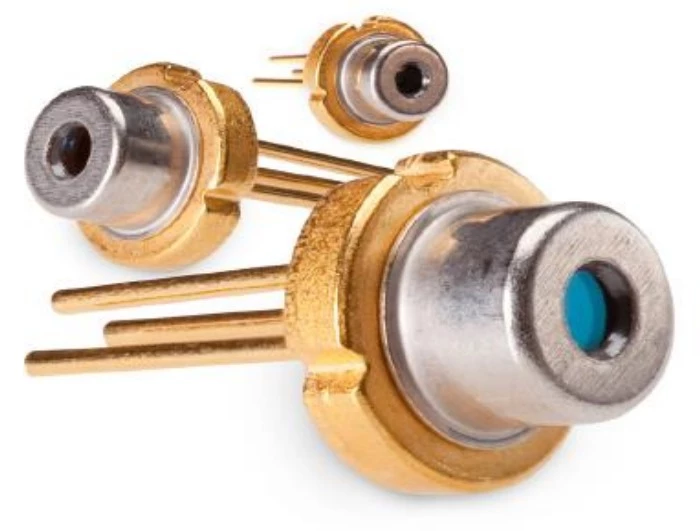

The LASER DIODE FOLD-640-32S-VBG offered by Frankfurt Laser Company is a single-mode semiconductor laser diode with a fixed wavelength of 640nm and a narrow spectral width. With a continuous wave (CW) output power of 32mW, this laser diode is designed for various opto-electronic applications.
Its integrated VBG (Volume Bragg Grating) ensures wavelength stabilization, providing consistent and reliable performance. The LASER DIODE FOLD-640-32S-VBG is suitable for applications such as HeNe replacement, Raman spectroscopy, metrology, bio-instrumentation, graphic arts, sensing, and analytical instrumentation.
Laser Diode FOLD-640-32S-VBG
Specifications
Center Wavelength: | 0.64 um |
---|---|
Output Power: | 32 mW |
Coherence Length: | >0.5 m |
Emitter Size: | 1x2 µm |
Storage Temperature: | -40 to +80 °C |
Central Stabilized Temperature: | 15-45 °C |
Operating Temperature: | -10 to +50 °C |
Beam Divergence, Parallel: | 10 |
Beam Divergence, Perpendicular: | 24° |
Slope Efficiency: | 1.0 mW/mA |
Monitoring Output Current: | 0.2 mA |
Photodiode Reverse Voltage: | 30 V |
Reverse Voltage: | 2 V |
Forward Voltage: | 2.6 V |
Forward Current: | 105 mA |
Threshold Current: | 60 mA |
Line Width: | 300 MHz |
Features
- Single-mode semiconductor laser diode
- Fixed wavelength of 640nm with narrow spectral width
- 32mW CW output power
- Integrated VBG for wavelength stabilization
- High performance and reliability
- Suitable for various opto-electronic applications
Applications
- HeNe Replacement
- Raman Spectroscopy
- Metrology
- Bio-Instrumentation
- Graphic Arts
- Sensing
- Analytical Instrumentation
Frequently Asked Questions
What are some applications of the Laser Diode FOLD-640-32S-VBG?
The Laser Diode FOLD-640-32S-VBG is suitable for use in HeNe replacement, Raman spectroscopy, metrology, bio-instrumentation, graphic arts, sensing, and analytical instrumentation.
Is the Laser Diode FOLD-640-32S-VBG suitable for optoelectronic applications?
Yes, the Laser Diode FOLD-640-32S-VBG is suitable for use in various optoelectronic applications.
What is the spectral width of the Laser Diode FOLD-640-32S-VBG?
The spectral width of the Laser Diode FOLD-640-32S-VBG is very narrow due to the integrated VBG.
What is the wavelength of the Laser Diode FOLD-640-32S-VBG?
The Laser Diode FOLD-640-32S-VBG has a fixed wavelength of 640nm due to the integrated VBG.
What is the output power of the Laser Diode FOLD-640-32S-VBG?
The Laser Diode FOLD-640-32S-VBG has a 32mW CW output power at 640nm.
