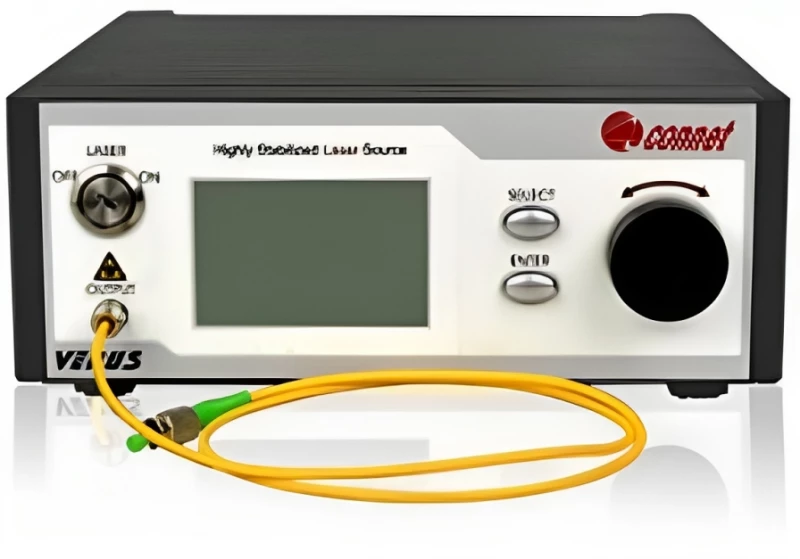

Thumbnail of Connet VENUS High Stability Diode Laser Source photo 1

Description

Connet's VENUS series High Stability Diode Laser Source offers versatile solutions by accommodating different diode lasers, including F-P, DFB, and ECL, tailored to user requirements. Operating across typical wavelengths such as 750nm, 808nm, 852nm, 1035nm, 1064nm, 1310nm, and 1550nm, this laser source provides options for single-mode fiber output or polarization-maintaining fiber output.

The VENUS series stands out as a highly integrated system, featuring a benchtop package with a high-definition LCD for synchronized display of current, voltage, and continuously tunable output power. It caters to scientific research and manufacturing testing needs, offering a compact structure, DC supply, and system integration convenience.

Connet VENUS High Stability Diode Laser Source

Visit the Connet Laser Technology Co., Ltd. Store

Specifications

Center Wavelength: 0.6 um
Output Power: 10 mW
Dimensions: 340(L) x 240(W) x 100(H) mm
Storage Temperature: -40 to +85 ℃
Operating Temperature: 0 to +50 ℃
Power Consumption: 10 W
Power Supply: 100-240 V
Optical Connector: FC/APC (other options available)
Output Fiber Length: >1 m
Output Fiber Type: SM fiber (PM optional)
Output Power Tunable Mode: Coarse / Fine
Output Power Tunable Range: 0 to 100%
Output Power Stability (8h, Typ.): ±1.0%
Output Power Stability (15mins, Typ.): ±0.5%
Spectral Width (FWHM): FP-LD: <1nm; DFB-LD: <3MHZ
Operating Wavelength: 600 to 1650 nm
Radiation Source: FP-LD or DFB-LD
Part No.: VLSS-XXXX-B

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Power, Single-Mode Output
  • Adjustable Output Power
  • Wavelength Stabilization with FBG
  • High Stability and Reliability
  • Precision ACC & ATC Control

Applications

  • Testing and Measurement
  • Optical Fiber Communication
  • Optical Fiber Sensing
  • Spectrum Analysis
  • Research & Development

Frequently Asked Questions

What applications is the VENUS series diode laser source suitable for?
The VENUS series diode laser source is suitable for testing and measurement, optical fiber communication, optical fiber sensing, spectrum analysis, and research and development.
What are the typical operating wavelengths that can be selected for the VENUS series diode laser source?
The typical operating wavelengths that can be selected for the VENUS series diode laser source are 750nm, 808nm, 852nm, 1035nm, 1064nm, 1310nm and 1550nm.
What is the output power tunable range for the VENUS series diode laser source?
The output power tunable range for the VENUS series diode laser source is 0-100%.
What kind of diode lasers can the VENUS series diode laser source adopt?
The VENUS series diode laser source can adopt different kinds of diode lasers according to the requirement of the user, including F-P, DFB and ECL.
What kind of fiber output is optional for the VENUS series diode laser source?
The VENUS series diode laser source offers optional single-mode fiber output or polarization-maintaining fiber output.
