REP1512-DM-B: 1512nm Stabilized Narrow-Linewidth Laser Diode 1490-1530nm

Name: REP1512-DM-B: 1512nm Stabilized Narrow-Linewidth Laser Diode 1490-1530nm
Brand: RPMC Lasers, Inc.
Availability: InStock

Description

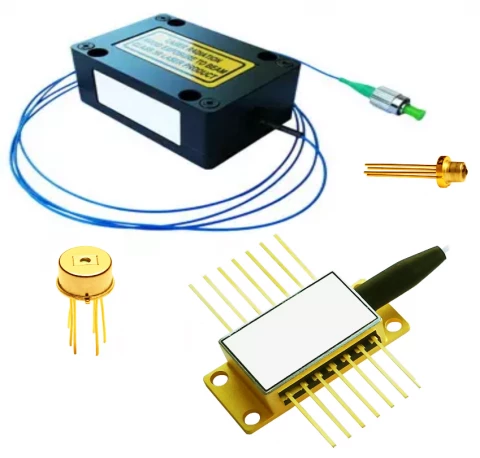

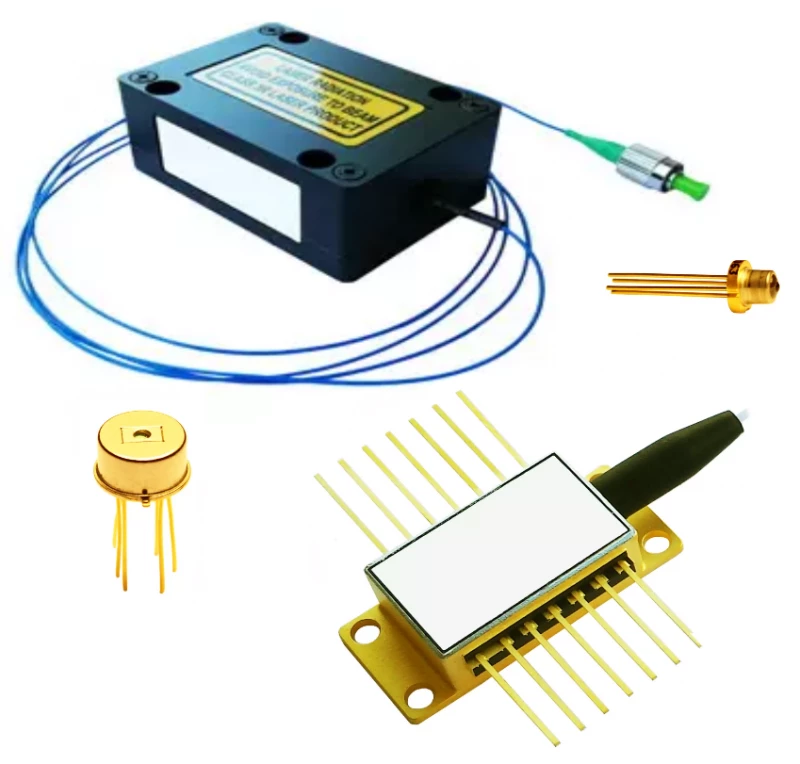

The REP series includes high-performance, tunable, single-frequency (DFB-like) diode lasers and Fabry-Perot laser diodes in wavelengths from 1270nm thru 2350nm, designed to address challenges in Gas Sensing, LIDAR, Spectroscopy, and Telecom. The REP series includes high-power and narrow linewidth options, covering various product ranges at the most popular wavelengths, and providing customizable units with multiple packaging options, including the Fiber coupled 14-pin butterfly, TO39 (w/TEC), and TO56.

Benefits:

Discrete-Mode manufacturing technology provides industry-leading performance and fully scalable, consistent production and integration capability.
Highly customizable units with several package options enable customers to choose the right product for their specific needs.
High-power and narrow linewidth options allow customers to optimize performance for their particular applications.
Various product ranges at the most popular wavelengths provide customers with a wide range of options to choose from.

Specifications

Center Wavelength:	1.512 um
Output Power:	8 mW
Forward Current:	120 mA
Forward Voltage:	2 V
TEC Current:	1.2 A
Reverse Voltage LD:	2 V
Reverse Voltage PD:	20 V
Case Temperature:	-20 to 65 °C
Chip Submount Temperature:	0 to 50 °C
Storage Temperature:	-40 to 85 °C

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Integral TEC
PM/SMF Coupled with FC/APC
Built-in Optical Isolator

Applications

Telecommunications: Ideal for use in fiber optic communication systems, offering high precision and reliability.
Spectroscopy: Suitable for various spectroscopy applications due to its stable wavelength output.
Research and Development: Perfect for R&D environments where precise laser control is required.
Medical Applications: Can be used in medical devices that require laser technology for diagnostics or treatment.
Industrial Manufacturing: Useful in manufacturing processes that require laser precision, such as cutting or engraving.
Environmental Monitoring: Can be employed in systems that monitor environmental conditions using laser technology.
Defense and Aerospace: Suitable for defense applications where robust and reliable laser systems are necessary.

Name

Work Email

Organization (recommended)

Country

Your message to supplier

Ships from:

United States

Sold by:

RPMC Lasers, Inc. ✓ Verified Supplier

On FindLight:

since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the REP1512-DM-B laser diode used for?

The REP1512-DM-B laser diode is ideal for tunable diode laser absorption spectroscopy (TDLAS) for real-time trace gas sensing (ppm or ppb levels) in harsh environments, specifically for Ammonia detection.

What is the wavelength range of the REP1512-DM-B laser diode?

The REP1512-DM-B laser diode is continuously tunable from 1490 nm to 1530 nm.

What is the technology used in the REP1512-DM-B laser diode?

The REP1512-DM-B laser diode takes advantage of Eblana's proprietary discrete-mode (DM) technology which produces a tunable single frequency output with excellent SMSR, similar to traditional DFB lasers without the mode hops inherent to most DFBs.

What is the packaging of the REP1512-DM-B laser diode?

The REP1512-DM-B product series is offered in a 14-pin Butterfly package. Variations may be requested.

Is the REP1512-DM-B laser diode safe to use?

The REP1512-DM-B laser diode is a Class 3R Laser Product as defined by International Standard IEC 60825-1, Edition 3. Invisible Laser radiation.
