Description

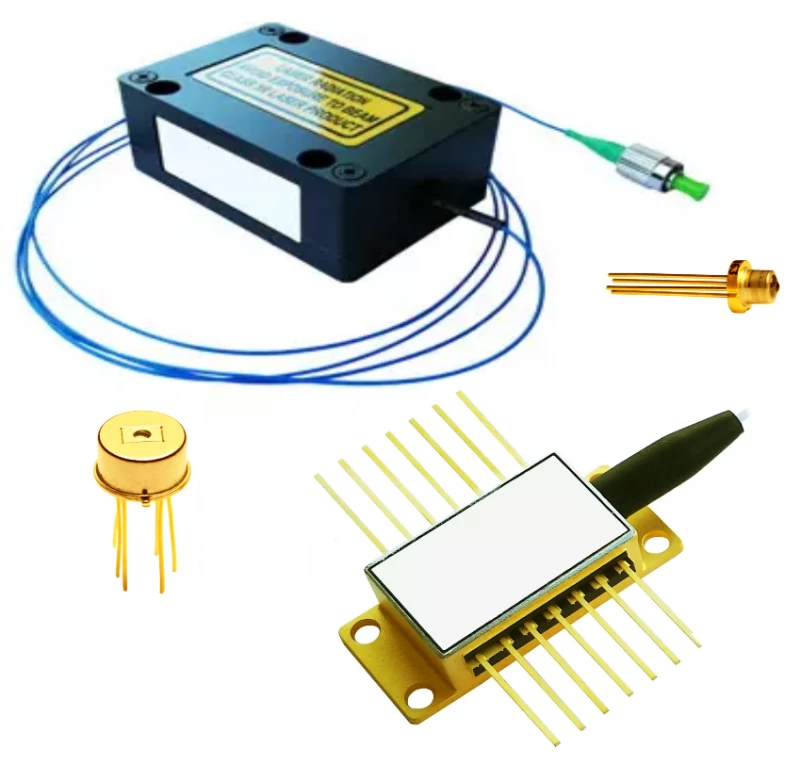

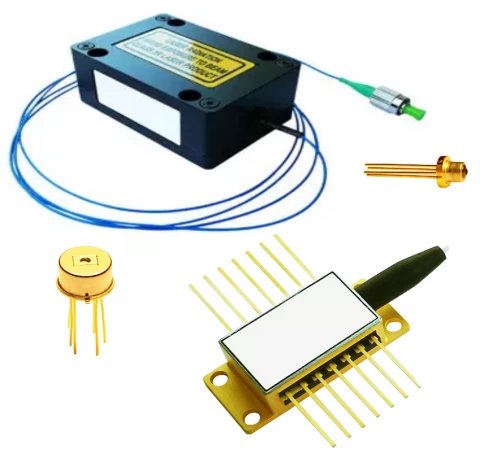

The REP series includes high-performance, tunable, single-frequency (DFB-like) diode lasers and Fabry-Perot laser diodes in wavelengths from 1270nm thru 2350nm, designed to address challenges in Gas Sensing, LIDAR, Spectroscopy, and Telecom. The REP series includes high-power and narrow linewidth options, covering various product ranges at the most popular wavelengths, and providing customizable units with multiple packaging options, including the Fiber coupled 14-pin butterfly, TO39 (w/TEC), and TO56.
Benefits:
- Discrete-Mode manufacturing technology provides industry-leading performance and fully scalable, consistent production and integration capability.
- Highly customizable units with several package options enable customers to choose the right product for their specific needs.
- High-power and narrow linewidth options allow customers to optimize performance for their particular applications.
- Various product ranges at the most popular wavelengths provide customers with a wide range of options to choose from.
REP1278-DM-B: Stabilized Narrow-Linewidth Laser Diode, 1260-1288nm
Specifications
| Center Wavelength: | 1.278 um |
|---|---|
| Output Power: | 8 mW |
Download Data Sheet
Features
- Integral TEC
- PM/SMF Coupled with FC/APC
- Built-in Optical Isolator
Applications
- Hydrogen Fluoride detection
- Spectroscopy
Frequently Asked Questions
What is the REP1278-DM-B laser used for?
The REP1278-DM-B laser is designed specifically for detection of Hydrogen Fluoride and is ideal for tunable diode laser absorption spectroscopy (TDLAS), providing a low maintenance solution for real-time trace gas sensing (ppm or ppb levels) in harsh environments.
What is the wavelength range of the REP1278-DM-B laser?
The REP1278-DM-B laser is continuously tunable from 1260 nm to 1288 nm.
What is the Side Mode Suppression Ratio (SMSR) of the REP1278-DM-B laser?
The SMSR of the REP1278-DM-B laser is between 30-40 dB.
What is the packaging option for the REP1278-DM-B laser?
The REP1278-DM-B product series is offered in a 14-pin Butterfly package, but other packaging options are available upon inquiry.
What laser safety standard does the REP1278-DM-B laser comply with?
The REP1278-DM-B laser is a Class 3R Laser Product as defined by International Standard IEC 60825-1, Edition 3.
