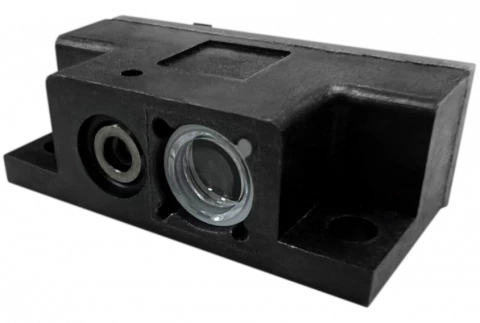

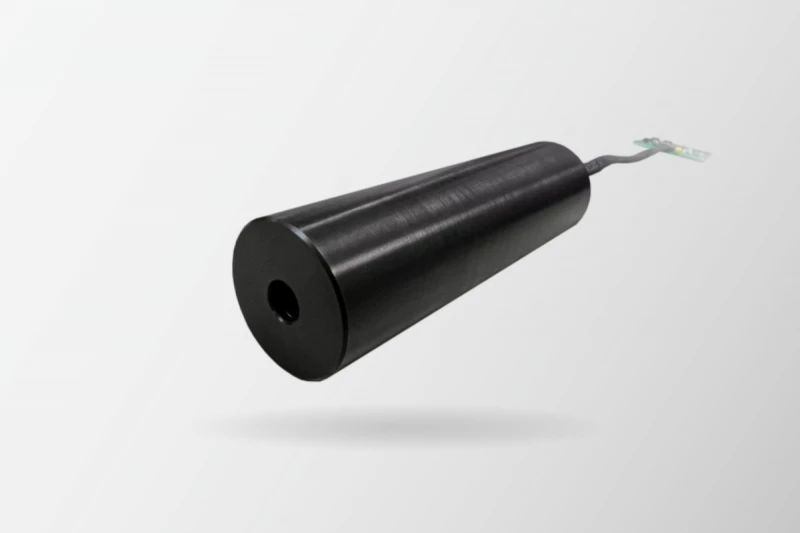

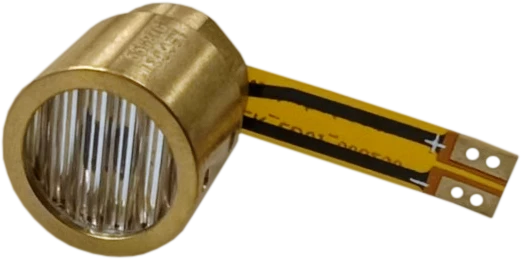

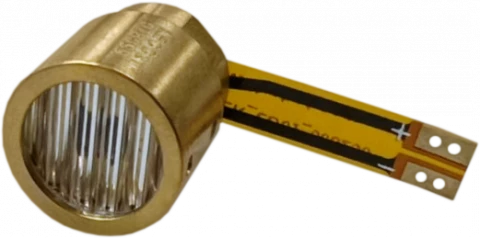

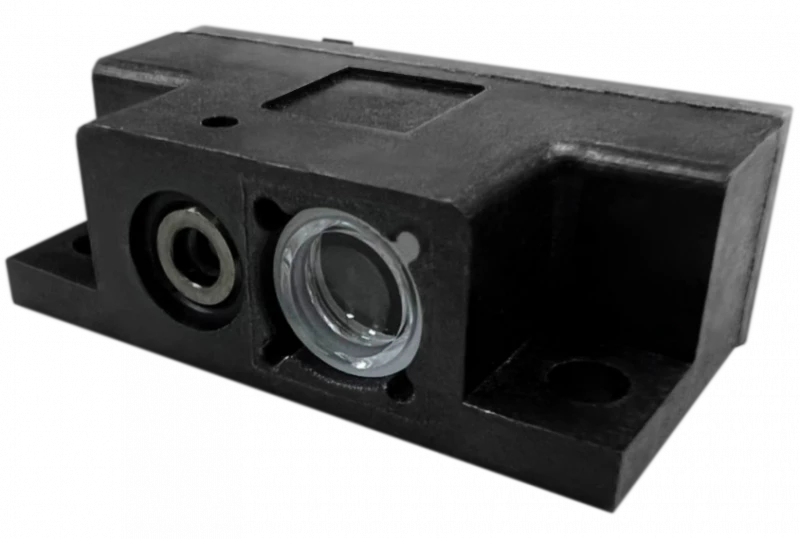

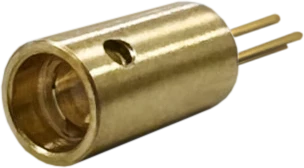

Customized Laser Module (405nm | 50mW) - Get a price quote from LECC Technology Co., Ltd.

Description

Our laser modules are tailored to your unique needs, offering a versatile spectrum of wavelengths from vivid red, green, and blue to even invisible light. Catering to a vast array of applications - be it ranging, positioning, PM2.5 detection, or 3D printing - we've got a product that fits your requirements.

At LECC, we don't just offer off-the-shelf solutions. We understand that every application can have specific needs. Hence, based on your requirements, we can modify optical power, focusing distance, spot size, and mechanism. Not sure about your exact needs? Let us provide a recommendation on the ideal specifications for your application. Alternatively, you can provide your current products for testing. We'll then fine-tune and customize the specifications to ensure optimal performance tailored just for you.

Specifications

Center Wavelength:	0.405 um
Output Power:	50 mW
CW Optical Power:	50 mW
Operating Current:	200 mA
Operating Voltage:	5 V
Wavelength At Peak Emission:	405 nm
Operating Temp. Range:	-10 to 80 °C
Storage Temp. Range:	-40 to 85 °C
Spot Size At 67mm:	25 um
Driving Circuit:	APC
Lens Material:	Glass Lens

Download Data Sheet

Features

Wavelength Flexibility: Capable of producing wavelengths ranging from red, green, blue, to invisible light.

High Optical Power: Maximum continuous wave (CW) optical power of 50mW.

Variable Wavelength: Emission wavelength peak from 400nm to 410nm, with a typical value of 405nm.

Adaptable Operating Parameters: Operating current up to 200mA with an operating voltage of approximately 5V.

Temperature Resilience: Operating temperature range between -10°C to 80°C and storage temperature between -40°C to 85°C.

Spot Precision: Spot size of 20 to 30µm at a distance of 67mm.

High-Quality Lens: Equipped with a glass lens for optimal performance.

Driven by APC Circuit: Ensuring stable output and improved laser diode lifespan.

Applications

Ranging: Accurately measure distances using laser beams.

Positioning: Pinpoint location identification and guidance.

Environmental Sensing: PM2.5 particle detection in the air.

3D Printing: Precision laser-based material processing for additive manufacturing.

Custom Applications: Adjustable optical power, focusing distance, spot size, and mechanism for diverse use cases.

Add to Watchlist (My Watchlist)

Ships from:

Taiwan

Sold by:

LECC Technology Co., Ltd.

On FindLight:

since 2023

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the peak emission wavelength for AP45500001?

The typical emission wavelength is 405nm, but it can range between 400nm to 410nm.

What is the maximum optical power of this module?

The maximum continuous wave (CW) optical power is 50mW.

Can the optical power and other features be customized?

Yes, LECC allows adjustments based on customer's application requirements, including optical power, focusing distance, spot size, and mechanism.

What are some of the primary applications of this laser module?

The module can be used in ranging, positioning, PM2.5 detection, and 3D printing, among other applications.

How should I handle the laser module to ensure its longevity?

It's crucial to protect the module from surge current, electrostatic discharge (ESD), and to follow the provided soldering guidelines.

Is it safe to look directly into the laser beam?

No, looking directly into the laser beam, even through lenses or optical fibers, can cause severe damage to the eyes. It's recommended to use safety goggles when observing laser beams.

What is the operating temperature range of the module?

The operating temperature range is between -10°C to 80°C.

Where can I contact LECC for more details or customization requirements?

You can contact LECC TECHNOLOGY CO., LTD. in Taiwan or SHANGHAI LECC OPTO CO., LTD. in China through the "Contact Supplier" or "Inquire Price" button on this page.

What material is used for the lens in the module?

The module is equipped with a glass lens.
