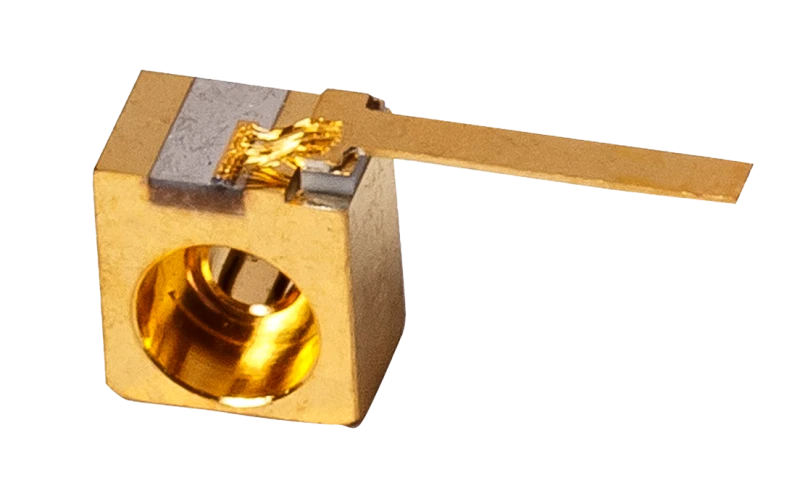

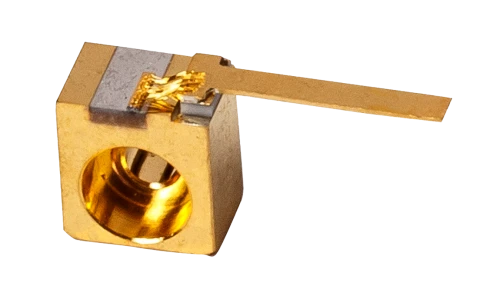

C156 C-Mount High Power Single-mode Laser Diode 1940nm
Description
Experience unparalleled power and precision with the SemiNex SMX19XX Laser Diode (1.9μm) - C-Mount. Crafted to deliver exceptional performance in the infrared spectrum, this laser diode offers a perfect blend of efficiency and cost-effectiveness.
With output power reaching up to 1.10 watts (CW), it meets the demanding requirements of various applications, including OEM Medical, DPSS pump sources, LiDAR, and Military/Aerospace projects. The chip cavity length of 1500 μm ensures optimal functionality, while the emitter width and height are finely tuned for precision. The laser's high slope efficiency of 0.30 W/A and low threshold current of 0.35 A underscore its exceptional performance capabilities.
With a standard low-cost package and customizable lens options, this laser diode is designed to exceed your expectations in terms of both performance and versatility. Whether for medical, industrial, or defense applications, the SemiNex SMX19XX Laser Diode offers unmatched reliability and power.
C156 C-Mount High Power Single-mode Laser Diode 1940nm
Specifications |
|
|---|---|
| Center Wavelength: | 1.940 um |
| Output Power: | 1100 mW |
| Chip Cavity Length: | 1500 μm |
| Emitter Width: | 150 μm |
| Emitter Height: | 1 μm |
| Spectral Width: | 10 nm 3dB |
| Slope Efficiency: | 0.30 W/A |
| Fast Axis Divergence FWHM: | 30 deg |
| Slow Axis Divergence FWHM: | 11 deg |
| Power Conversion Eff.: | 17 % |
| Threshold Current: | 0.35 A |
| Operating Current: | 4 A |
| Operating Voltage: | 1.3 V |
| Weight: | 0.5 g |
| Operating Temperature: | -40 to +80 °C |
| Storage Temperature: | -40 to +80 °C |
Features
- Cost-effective
- High Output Power
- High Dynamic Range
- High Efficiency
- Standard Low Cost Package
Applications
- OEM Medical
- DPSS pump source
- LiDAR
- Military / Aerospace
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The SMX19XX Laser Diode operates in the wavelength range between 12xx and 19xx nm.
The SMX19XX Laser Diode is commonly used in OEM Medical devices, DPSS pump sources, LiDAR systems, and Military/Aerospace applications.
The output power of the SMX19XX Laser Diode is 1.10 watts (CW) with a tolerance of ±10%.
The operating current is 4 A, and the operating voltage is 1.3 V.
Yes, the fast axis divergence can be changed with optional lens configurations.
The operating temperature range is from -40 to 80 °C, and the storage temperature range is also from -40 to 80 °C.
Yes, SemiNex offers custom wavelength options to meet specific customer requirements.
The weight of the SMX19XX Laser Diode is 0.5 grams.
Yes, the SMX19XX Laser Diode is designed to deliver high output power and is suitable for various high-power applications.
