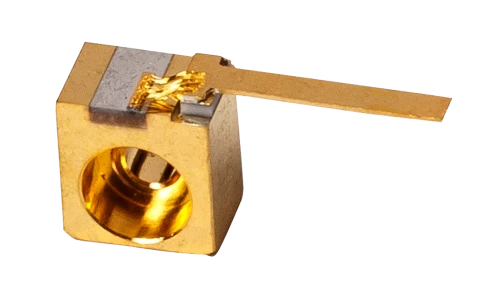

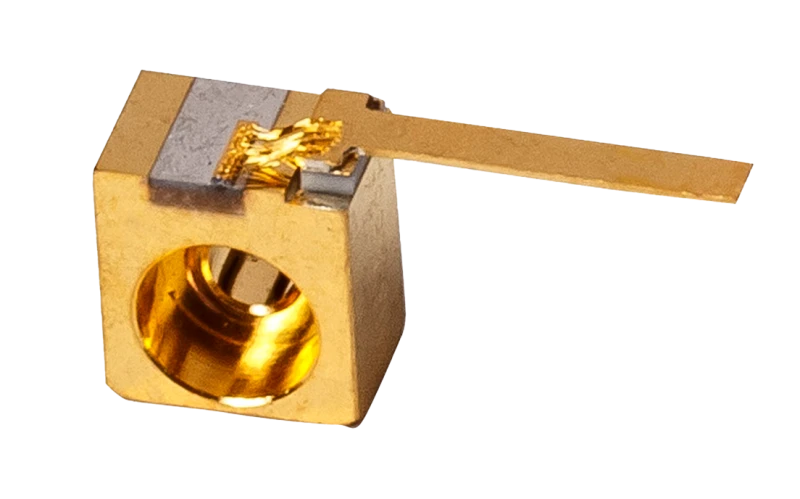

C106 C-Mount High Power Single-mode Laser Diode 1480nm

Name: C106 C-Mount High Power Single-mode Laser Diode 1480nm
Brand: RPMC Lasers, Inc.
Availability: InStock

Description

SemiNex offers high-power infrared lasers with wavelengths ranging from 12xx to 19xx nm. These lasers are designed to deliver superior optical and electrical performance, with options for customization to meet specific customer requirements.

The C-Mount design ensures cost-effectiveness and versatility for various applications, including OEM medical equipment, DPSS pump sources, LiDAR systems, and military/aerospace applications.

With high output power, efficiency, and a standard low-cost package, SemiNex lasers provide reliable and efficient solutions for demanding industrial and research environments.

Specifications

Center Wavelength:	1.48 um
Output Power:	5000 mW
Chip Cavity Length:	2500 μm
Emitter Width:	95 µm
Emitter Height:	1 μm
Slope Efficiency η°:	0.40 W/A
Fast Axis Divergence FWHM:	28 deg
Slow Axis Divergence FWHM:	9 deg
Power Conversion Eff.:	21 %
Threshold Curren:	0.45 A
Operating Current:	14 A
Operating Voltage:	1.7 V
Weight:	1.3 g
Operating Temperature:	-40 to +60 ℃
Storage Temperature:	-40 to +80 °C

Download Data Sheet

Features

Cost-effective

High Output Power

High Dynamic Range

High Efficiency

Standard Low-Cost Package

Applications

OEM Medical

DPSS pump source

LiDAR

Military / Aerospace

Name

Work Email

Organization (recommended)

Country

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

RPMC Lasers, Inc.

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the typical wavelength range for SemiNex lasers?

SemiNex lasers offer wavelengths between 12xx and 19xx nm, with options for custom wavelengths to meet specific requirements.

What are the key features of SemiNex lasers?

SemiNex lasers are known for their cost-effectiveness, high output power, high dynamic range, high efficiency, and standard low-cost package.

What applications are suitable for SemiNex lasers?

These lasers find applications in various fields including OEM medical equipment, DPSS pump sources, LiDAR systems, and military/aerospace applications.

What are the specifications of the C-106 model?

The C-106 model operates at a wavelength of 1480 nm (±20 nm) with an output power of 5.00 watts (±10%). It has a chip cavity length of 2500 μm, emitter width of 95 μm, and spectral width of 15 nm 3dB, among other specifications.

Can the fast axis divergence be adjusted?

Yes, the fast axis divergence can be changed with a lens option, providing flexibility in beam characteristics.

What are the electrical specifications of SemiNex lasers?

The C-106 model has a power conversion efficiency of 21%, a threshold current of 0.45 A, and operates at an operating current of 14 A and operating voltage of 1.7 V.

What are the operating and storage temperature ranges for SemiNex lasers?

SemiNex lasers can operate in temperatures ranging from -40 to 60°C, with a storage temperature range of -40 to 80°C.
