High-Powered SDL-980-LM-XXXT 980nm Diode Laser for Precision Applications
Description
Introducing the SDL-980-LM-XXXT 980nm Diode Laser from Shanghai Dream Lasers Technology Co., Ltd. This powerful and versatile laser offers an output power range of 8000-15000mW with a wavelength of 980±5nm, making it ideal for a range of precision applications.
The SDL-980-LM-XXXT model features multi-mode LD mode and operates in CW mode with a power stability of less than 5% over 2 hours after warm-up. The laser's beam divergence is approximately 5mrad (1/e2, full angle), and the beam diameter at the aperture is approximately 8.8mm. The beam spot outline is round, ensuring uniformity and precision.
With a warm-up time of less than 5 minutes and pointing stability of less than 0.05 mrad after warm-up, the SDL-980-LM-XXXT is ready to use quickly and offers highly accurate performance.

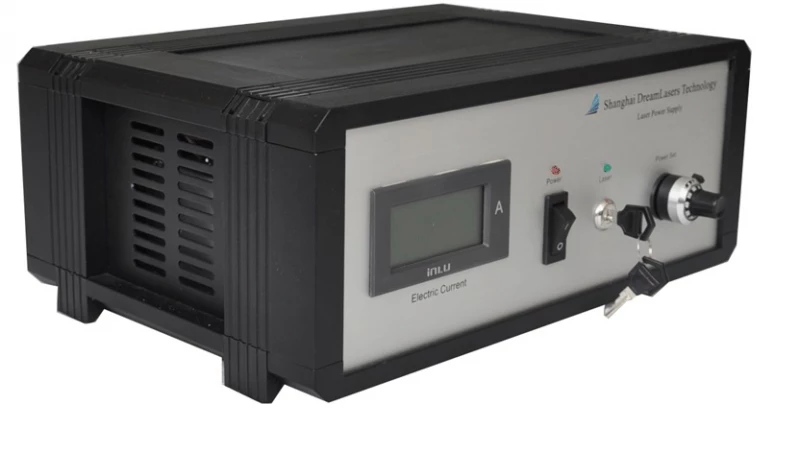

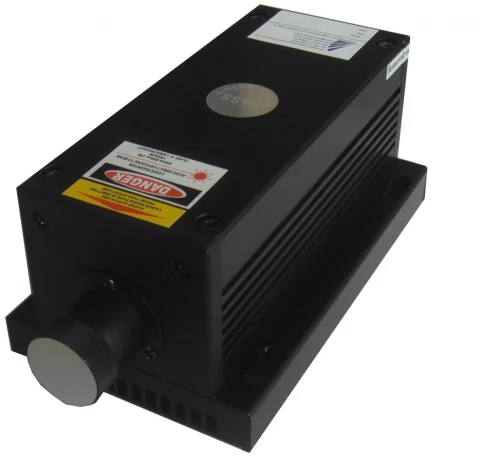

The laser is equipped with a compact SDL-LH-900 laser head measuring 212x88x74mm and an SDL-PS-600 power supply measuring 200x290x120mm. The laser's input voltage is 90-265VAC 50/60Hz, and it has TTL modulation capabilities of over 5KHz.
The SDL-980-LM-XXXT has an impressive 10000-hour life expectancy and comes with a 1-year warranty. Customization options for this laser include longer operation period output power stability, better power stability (<3%, <1%), analog modulation >2KHz or higher, up to 30Khz TTL modulation, line output versions, fiber-coupled versions, longer warranties, and other custom-made designs.
High-Powered SDL-980-LM-XXXT 980nm Diode Laser for Precision Applications
Specifications |
|
|---|---|
| Center Wavelength: | 980 um |
| Output Power: | 15000 mW |
Features
- 4 or 8 hours Longer operation period output power stability are available on request.
- Better (<3%,<1%) power stability are available on request.
- Analog Modulation >2KHz or higher as option.
- Up to 30Khz TTL modulation on request.
- Line output version are available on request.
- Fiber coupled version are available on request.
- Longer warranty on request.
- Other custom-made design is available, please contact us for details.
Applications
- Medical treatments, including hair removal and skin rejuvenation
- Scientific research, including spectroscopy and fluorescence excitation
- Industrial manufacturing, including welding and soldering
- Material processing, including cutting, drilling, and engraving
- Defense and security applications, including laser targeting and range finding
- Telecommunications and data communications, including optical pumping and signal amplification
- Biomedical imaging and microscopy
- Laser pumping for other lasers or nonlinear optics
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2023
Frequently Asked Questions
The output power range of the SDL-980-LM-XXXT 980nm Diode Laser is 8000-15000mW.
The warm-up time for the SDL-980-LM-XXXT is less than 5 minutes.
The power stability of the SDL-980-LM-XXXT after warm-up is less than 5%.
The SDL-LH-900 laser head measures 212x88x74mm.
The SDL-980-LM-XXXT has an impressive 10000-hour life expectancy.
