Description
Introducing the 1550nm Wide Band Super Luminescent Diode, model SGSLD-1550-XX-XX-XX-14-HC. This cutting-edge component is designed to meet the high demands of modern optical systems, delivering exceptional performance and reliability. The super luminescent diode is engineered to provide a broad spectrum output, making it an ideal choice for a variety of advanced optical applications.

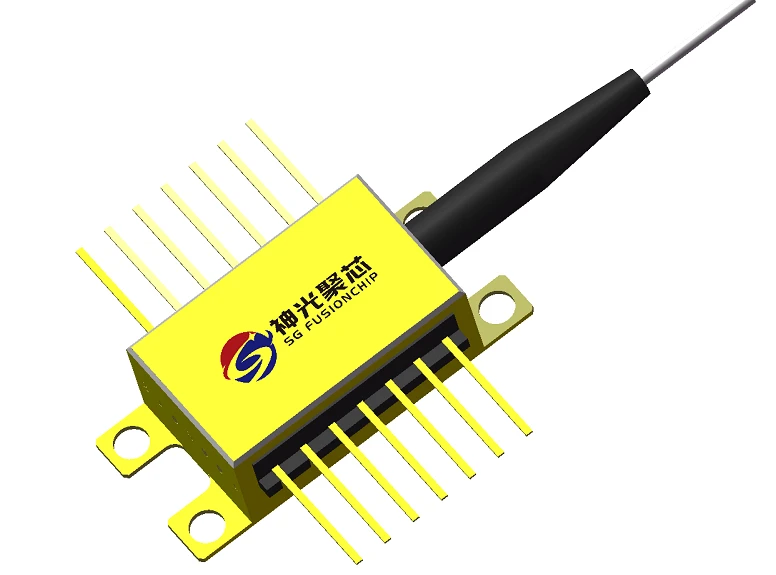

The SGSLD-1550-XX-XX-XX-14-HC is housed in a robust 14-pin BTF package, ensuring durability and ease of integration into existing systems. With its high power output and typical 3dB bandwidth of 70nm, this diode offers superior spectral performance. The inclusion of a single-mode or polarization-maintaining fiber pigtail greater than 1 meter enhances its versatility, allowing for seamless integration into diverse optical setups.
Designed with precision, the SGSLD-1550-XX-XX-XX-14-HC maintains optimal performance across a wide range of operating conditions. Its state-of-the-art design ensures minimal spectral modulation, making it a reliable component for critical applications. We are committed to delivering high-quality optical components that meet the rigorous standards of today's technology-driven industries.
1550 nm Wide Band 70nm Superluminescent LED-SGSLD-1550-XX-XX-XX-14-HC
Specifications |
|
|---|---|
| Center Wavelength: | 1550 um |
| Output Power: | 15 mW |
| Central Wavelength: | 1550 nm |
| Optical Output Power: | 15 mW |
| Bandwidth: | 70 nm |
| Spectrum Modulation: | 1 dB |
| Thermistor Resistance: | 10 kΩ |
Features
- High power output
- Typical 3dB bandwidth of 70nm
- Spectral modulation of <1dB
- 14-pin BTF package
- Single-mode/PM fiber pigtail ＞1M
Applications
- Fiber Optic Gyroscope
- Optical Test Instrument
- Fiber Optic Sensors
- Fiber Optic Communications
- Optical Coherence Tomography
- Biomedical Imaging Device
- Clinical Healing Equipment
Frequently Asked Questions
The SGSLD-1550-XX-XX-XX-14-HC is a 1550nm wide band super luminescent diode manufactured by SG FusionChip Technology Co., Ltd. It features high power output and a typical 3dB bandwidth of 70nm.
The main applications include fiber optic gyroscope, optical test instruments, fiber optic sensors, fiber optic communications, optical coherence tomography, biomedical imaging devices, and clinical healing equipment.
The typical 3dB bandwidth of the SGSLD-1550-XX-XX-XX-14-HC is 70nm.
The absolute maximum ratings include a reverse voltage of 2V, a forward current of 450mA, an operating case temperature range of -20 to 70℃, and a storage temperature range of -40 to 85℃.
The optical output power at operating current is 15mW.
The SGSLD-1550-XX-XX-XX-14-HC is an ESD-sensitive device, so proper ESD handling procedures should be followed.
The central wavelength range is from 1530nm to 1570nm.
