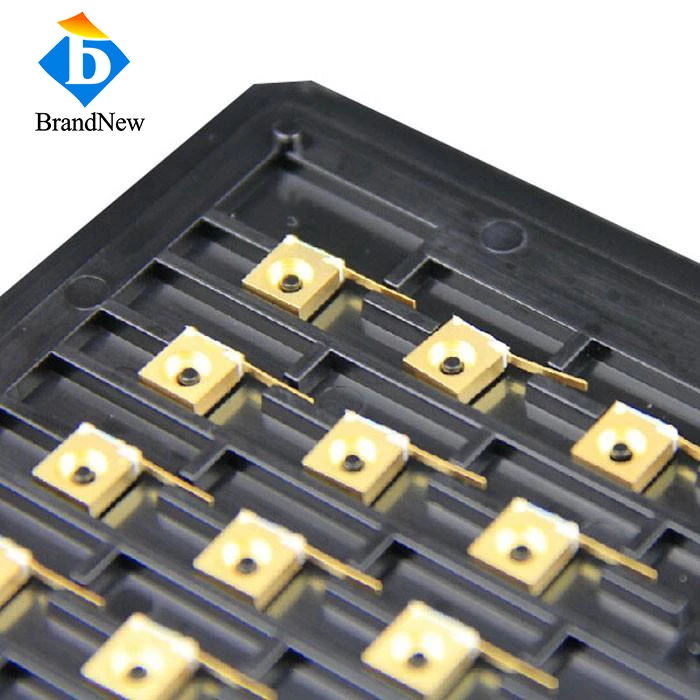

Thumbnail of 10W 808nm C-mount Single Emitter Diode Laser photo 1

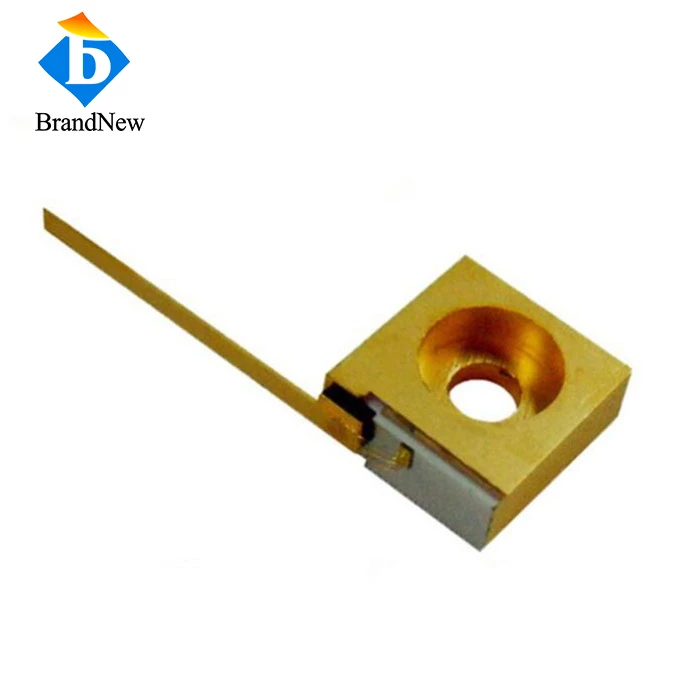

Thumbnail of 10W 808nm C-mount Single Emitter Diode Laser photo 2

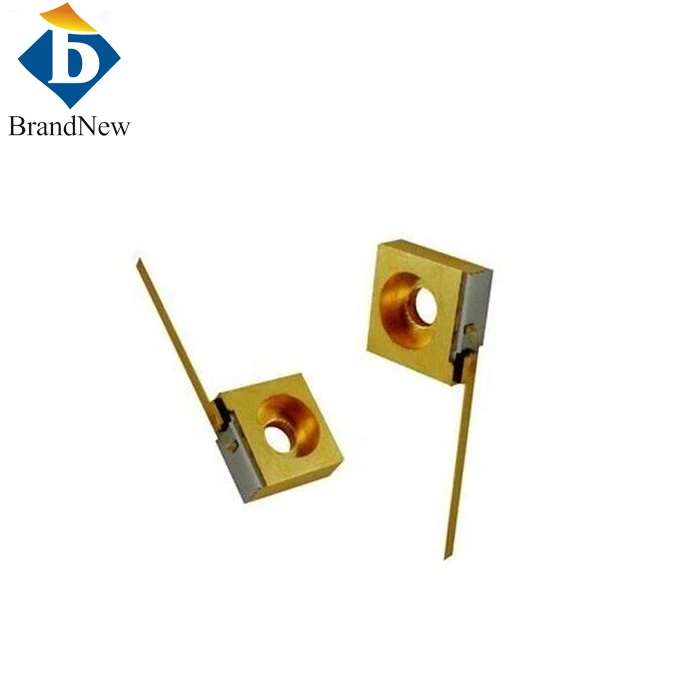

Thumbnail of 10W 808nm C-mount Single Emitter Diode Laser photo 3

Description

CM808DL10 is a high-quality C-mount package laser diode, which Fabry-Perot laser based on state-of-the-art, quantum-well epitaxial layer growth and reliable ridge waveguide structure.

CM808DL5/CM808DL10 is easy to mount and provides good thermal contact, making it an ideal choice for high power and OEM applications.  C-mount package has two welled gold contacts to the n- and p- doped semiconductor layers.

CM808DL10 single emitter laser diode series, which based on Quantum-well epitaxy and ridge waveguide structure design. C-Mount packaged single emitters provide excellent reliability and performance.

Center wavelength includes 635nm, 650nm, 670nm, 785nm, 808nm, 830nm, 9xxnm and 1064 nm. Package designs include TO mounts, CoS mounts, C-mounts and F-mounts. Provide beam shaping services like fast-axis compression according to customer demands.

10W 808nm C-mount Single Emitter Diode Laser

Visit the Hangzhou Brandnew Technology Co., Ltd. Store

Specifications

Center Wavelength: 0.808 um
Output Power: 10000 mW
Operating Current Iop: 5 A
Threshold Current Ith: 0.3 A
Operating Voltage Vop: 2 V
Operating Temperature: 15~35 ℃
Storage Temperature: 40~80 ℃

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 10W output power, 808nm central wavlength
  • FAC available
  • Proprietary mirror coating enables high reliability
  • High Stability
  • Long service life

Applications

  • OEM Medical
  • Consumer Medical
  • Military targeting
  • Range finding and illumination

Frequently Asked Questions

What is the output power of the CM808DL10 laser diode?
The CM808DL10 laser diode has an output power of 10W.
What is the center wavelength of the CM808DL10 laser diode?
The center wavelength of the CM808DL10 laser diode is 808nm±10nm.
What are the applications of the CM808DL10 laser diode?
The CM808DL10 laser diode is commonly used in OEM, medical, consumer, and military applications such as targeting, range finding, and illumination.
What is the thermal test temperature range for the CM808DL10 laser diode?
The thermal test temperature range for the CM808DL10 laser diode is 25℃.
Does the CM808DL10 laser diode provide beam shaping services?
Yes, the CM808DL10 laser diode can provide beam shaping services like fast-axis compression according to customer demands.
