PYFL-PICO - 1 µm picosecond pulses
Description

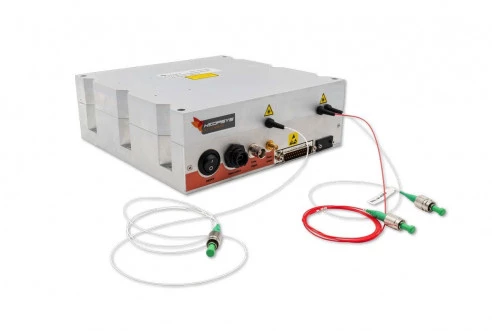

The PYFL-PICO is a picosecond pulsed Ytterbium fiber laser operating at 1064 nm, with a 100 MHz pulse repetition frequency and ~ 50 ps pulse length. The laser can be used as a seeder for high-energy amplifiers in applications such as material processing. The compact laser module can also be integrated into confocal microscopy and Raman spectroscopy systems.
The 10 µm LMA output fiber provides a diffraction-limited beam with excellent beam quality M² < 1.1 perfectly suited for these applications. For a quick setup, the short-pulse laser is delivered with an interface cable and easy to use control software. The module incorporates a microcontroller, for internal control and alarms, with RS232 communication making this laser widely compatible. The all-in-fiber design requires no maintenance.
PYFL-PICO - 1 µm picosecond pulses
Specifications |
|
|---|---|
| Wavelength: | 1064 nm |
| Average Output Power: | 1 W |
| Pulse Duration: | 0-50ns |
| Beam Quality (M^2): | <1.1 |
| Max Pulse Repetition Rate: | 100000 kHz |
| Energy Per Pulse: | 10 nJ |
| Peak Power: | 0.2 kW |
| Pulse Repetition Frequency: | 100 MHz |
Features
• 1064 nm operating wavelength
• 100 MHz pulse repetition frequency
• 50 ps typical pulse duration
• Linear polarization
• Diffraction-limited beam
Applications
- Seed laser for high energy amplifier
- Material processing
- Confocal microscopy
- Raman spectroscopy
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
France
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The PYFL-PICO laser operates at 1064 nm.
The PYFL-PICO laser has a pulse repetition frequency of 100 MHz.
The typical pulse duration of the PYFL-PICO laser is ~ 50 ps.
The PYFL-PICO laser can be used as a seeder for high-energy amplifiers in applications such as material processing, and can also be integrated into confocal microscopy and Raman spectroscopy systems.
No, the all-in-fiber design of the PYFL-PICO laser requires no maintenance.
