Description
PEFL-EOLA are pulsed Erbium fiber doped lasers delivering Fourier transform limited pulses. These eye-safe pulsed lasers are coming linearly polarized. These lasers have excellent RIN and phase noise characteristics. The Keopsys design allows the lasers to deliver energy pulse up to 10 µJ, pulsewidth ranges from 100 to 500 ns, and an output beam diffraction limited (M²<1.1). The laser system is highly integrated, saving space and cost of integration, which makes it ideal for Doppler heterodyne LIDAR systems.

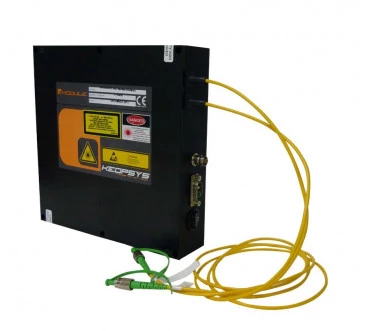

PEFL-EOLA SERIES - 1.5 µm Long Pulse Fiber Laser
Specifications
Wavelength: | 1550 nm |
---|---|
Average Output Power: | 4 W |
Pulse Duration: | 100 – 800 ns |
Beam Quality (M^2): | 1.1 |
Max Pulse Repetition Rate: | 10 kHz |
Energy Per Pulse: | Up to 400 µJ |
Features
- Eye-safe 1.5 μm operating wavelength
- Energy per pulse up to 400 μJ
- Peak power up to 900 W
- Pulse duration from 100 to 800 ns
- Pulse repetition frequency from 10 kHz to 20 kHz
- Low RIN and low phase noise
- Linear Polarization
- Fourier transform limited linewidth operation
- Diffraction limited M² <1.1 or <1.5
- Wide operating temperature range from 10°C to +65°C
- Highly integrated design
Applications
- Aerosol detection
- 2D/3D wind profiler
- Weather monitoring
- Pollution monitoring
- Turbine mounted LiDAR
- Wind hazard and wake vortices monitoring
- Wind farm optimization
Frequently Asked Questions
What is the operating wavelength of the PEFL-EOLA series laser?
The operating wavelength of the PEFL-EOLA series laser is 1.5 µm.
What is the maximum energy per pulse that the laser can deliver?
The laser can deliver energy pulse up to 400 µJ.
What is the pulse duration range of the laser?
The pulse duration ranges from 100 to 800 ns.
What applications is the PEFL-EOLA series laser suitable for?
The laser is suitable for various wind measurement applications such as turbine mounted LiDAR, wind farm optimization, and wind hazard and wake vortices monitoring, as well as aerosol detection, 2D/3D wind profiler, weather monitoring, and pollution monitoring.
What is the temperature range that the laser can operate in?
The laser can operate in a wide temperature range from 10°C to +65°C.
