Description
Our High Power CW Fiber Laser is a testament to cutting-edge photonics technology, designed to illuminate the path forward in industrial applications. Manufactured under a HKQAA ISO 9001 certified quality management system, our product guarantees the highest standards of quality and reliability. Please note that the ISO 9001:2015 certification applies specifically to our Hong Kong production site, ensuring that our manufacturing processes meet rigorous international standards.

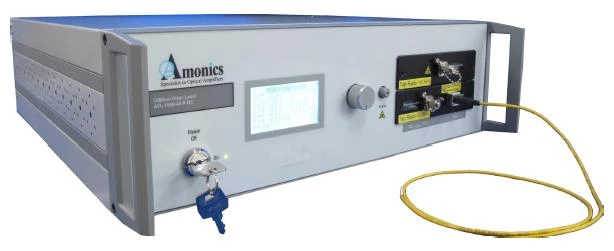

The Amonics Fiber Laser (AFL) is a compact, standalone turnkey solution engineered to deliver up to 30W of output power in the 1550nm range under continuous wave (CW) operation. This innovative laser system features a proprietary all-fiber design, which makes it maintenance-free and eliminates the need for post-installation service. With its master oscillator power amplifier (MOPA) design, the AFL provides high power output with various linewidth levels, making it an ideal choice for a diverse range of industrial applications.
Our fiber laser system is housed in a robust 2U rackmount casing, ensuring durability and reliability in demanding environments. The AFL offers versatility with options for linear or random polarization, and additional features such as narrow linewidth operation, optical feedback protection, and back reflection monitoring are available to enhance performance. Whether used for micro-machining, marking, scribing, fiber optic sensing, or laboratory applications, the AFL is engineered to meet the highest technical standards and deliver exceptional results.
At Amonics, we are committed to continuous and intensive product development to ensure our products remain at the forefront of technology. As a result, specifications may change without notice, reflecting our dedication to innovation and excellence in the field of photonics.
High Power Fiber Laser - AFL-1550-30-R
Specifications |
|
|---|---|
| Wavelength: | 1550 nm |
| Average Output Power: | 30 W |
| Pulse Duration: | 10 – 20 ns |
| Beam Quality (M^2): | 1.1 |
| Max Pulse Repetition Rate: | 100 kHz |
| Fiber Output: | Collimator or Bare Fiber |
Features
- Up to 30W Output Power: Deliver high power in the 1550nm range for various industrial applications.
- Turnkey Device: Ready-to-use equipment with minimal setup required.
- Maintenance Free: Proprietary all-fiber design ensures no post-installation service is needed.
- Linear or Random Polarization: Offers flexibility in polarization options.
- Highly Reliable and Durable: Built to withstand rigorous industrial environments.
- Narrow Linewidth Operation (Optional): Provides precision for specific applications.
- Optical Feedback Protection (Optional): Protects the laser from potential feedback issues.
- Back Reflection Monitoring (Optional): Ensures optimal performance by monitoring reflections.
- Compact 2U Rackmount Casing: Efficient use of space with a compact design.
- Wide Range of Applications: Ideal for micro-machining, marking, scribing, fiber optic sensing, and laboratory use.
- ISO 9001 Certified: Manufactured under a certified quality management system at the Hong Kong production site.
Applications
- Micro-Machining: Enables precise material processing with high power stability.
- Marking and Scribing: Suitable for industrial marking and fine scribing operations.
- Fiber Optic Sensing: Ideal for distributed sensing systems requiring stable CW laser sources.
- Laboratory Research: Reliable high-power source for optical research and testing applications.
Frequently Asked Questions
The laser can deliver up to 30W output power and 1mJ pulse energy in 1064 nm and 1550 nm range in pulsed or CW operation.
Yes, the laser is a compact standalone, turnkey equipment that is easy to operate.
The pulse repetition rate can be triggered by external TTL signal.
The laser is an ideal candidate for a wide range of industrial applications such as micro-machining, marking, scribing, fiber optic sensing, and research.
Yes, the laser comes with a two year warranty.
