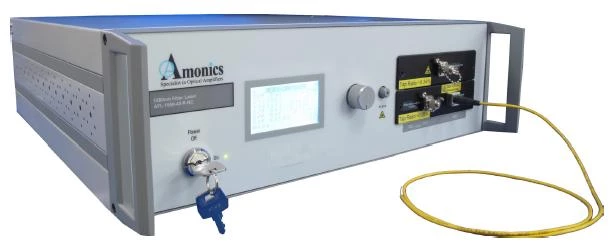

Amonics - High Power Fiber Laser - AFL-1064-10-R
Description
Amonics’ specialized fiber laser (AFL) series, is a compact standalone, turnkey equipment to deliver up to 30W output power and 1mJ pulse energy in 1064 nm and 1550 nm range in pulsed or CW operation. Based on proprietary all fiber design, Amonics fiber lasers are maintenance free. No after installation service is required.
In pulse operation, the laser delivers up to 20kW peak power with 10ns to 20ns adjustable pulse width. The pulse repetition rate can be triggered by external TTL signal.
Amonics fiber laser are ideal candidate for wide range industrial applications.
Amonics - High Power Fiber Laser - AFL-1064-10-R
Specifications |
|
|---|---|
| Wavelength: | 1064 nm |
| Average Output Power: | 10 W |
| Pulse Duration: | 10-20ns |
| Beam Quality (M^2): | 1.1 |
| Max Pulse Repetition Rate: | 100 kHz |
| Fiber Output: | Collimator or Bare Fiber |
Features
- CW and Pulse operation
- Up to 1mJ pulse energy
- 10 to 20ns tunable pulse width
- Up to 50W output power
- Optical feedback protection
- Back reflection monitoring
- Turnkey operation
- Maintenance free
- Linear polarization
- Highly reliability
- Two year warranty
Applications
- Micro-machining
- Marking
- Scribing
- Fiber Optic Sensing
- Research
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Amonics High Power Fiber Laser can deliver up to 30W output power and 1mJ pulse energy in 1064 nm and 1550 nm range in pulsed or CW operation.
The Amonics High Power Fiber Laser has a pulse width range of 10 to 20ns, which is tunable.
The Amonics High Power Fiber Laser is suitable for a wide range of industrial applications, including micro-machining, marking, scribing, fiber optic sensing, and research.
Yes, the Amonics High Power Fiber Laser is maintenance-free. No after installation service is required.
The Amonics High Power Fiber Laser comes with a two-year warranty.
