Semiconductor Optical Amplifier - ASOA13-20
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2014
Description
The Semiconductor Optical Amplifier (SOA) from Amonics is a cutting-edge solution designed to enhance optical signal strength in various network systems. This polarization-maintaining optical amplifier is engineered to deliver high fiber-to-fiber gain, making it ideal for applications that require increased optical launch power to counteract the loss from other optical devices. The SOA is a versatile product, suitable for both booster and in-line amplification in WDM metro network systems, as well as network loss compensation.

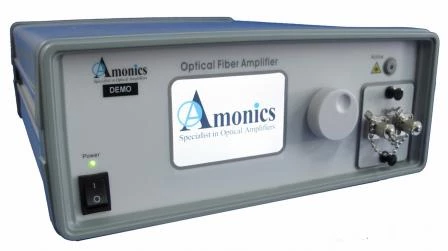

Available in both benchtop and OEM module versions, the SOA offers flexibility for different operational needs. The benchtop version features a user-friendly interface with an LCD monitor display, key switch, power control knob, and optical connectors, ensuring ease of use. Additionally, it includes an RS232 computer interface for enhanced connectivity. The OEM module version is compact and requires only a single +5V power supply, making it an ideal choice for system integration in optical communication networks and CATV applications.
Manufactured under a HKQAA ISO 9001 certified quality management system, the SOA guarantees high-quality performance and reliability. The product is available in various configurations, covering wavelengths from 915nm to 1565nm, and offers options such as input/output isolators and intensity modulation. With its compact size, good spectral stability, and excellent performance cost ratio, the Amonics SOA is a robust and reliable choice for enhancing optical signal strength in demanding network environments.
Semiconductor Optical Amplifier - ASOA13-20
Specifications |
|
|---|---|
| Amplifier Type: | SOA - Semiconductor Optical Amplifier |
| Wavelength Range: | 1300 – 1360 nm |
| Max Output Power: | 13 dBm |
| Nominal Gain: | 20 dB |
Features
- Wavelength Coverage: 1310nm and 1550nm
- High Fiber-to-Fiber Gain: Efficient amplification for optimal performance
- Pulse Width: 1MHz with 10ns pulse width
- Modulation: Available for enhanced signal control
- Polarization Maintaining (PM) Panda Fiber Input: Ensures signal integrity
- Good Spectral Stability: Consistent performance across wavelengths
- Compact Size: Easy integration into existing systems
- Good Performance Cost Ratio: High value for investment
Applications
- Booster and In-line Amplification: Enhances launch power and compensates loss in WDM metro network systems
- Network Loss Compensation: Restores signal strength in optical links
- Optical Communication Systems: Suitable for transmitter and preamplifier stages
- CATV Distribution: Reliable amplification for broadband optical signals
- System Integration: Compact modules for OEM product development
Frequently Asked Questions
The Amonics SOA is a polarization maintaining optical amplifier designed for transmitter applications to increase optical launch power to compensate for the loss of other optical devices.
The benchtop version incorporates a user-friendly front panel housing with a LCD monitor display, key switch, power adjust control knob and optical connectors, while the OEM module version is an ideal building block for OEM system integrators, especially in optical communication network and CATV applications. It requires only a single +5V power supply with low power consumption.
The Amonics SOA has a wavelength coverage of 1310nm and 1550nm.
The noise figure of the Amonics SOA is typically 12dB, with a maximum of 14dB for the 1300nm version, and typically 8dB, with a maximum of 9dB for the 1550nm version.
The fiber-to-fiber gain of the Amonics SOA is a minimum of 15dB for the 1550nm version and a minimum of 20dB for the 1300nm and 1550nm versions.
