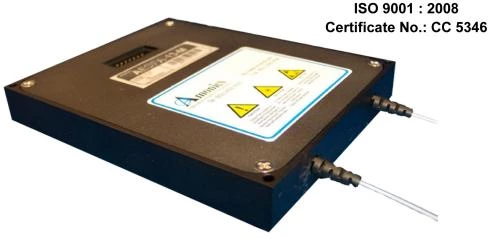

Amonics - OEM EDFA Module - AEDFA-23
Description
Amonics EDFA module version is an ideal building block for OEM system integrators as it performs all the functions of an EDFA ready for system integration. This includes photodetection of output signal and /or input signal. Three different control modes including ACC, APC and AGC are offered to meet different requirements. Pump laser protection and alarm are equipped as well. It requires only a single +5V power supply.
Amonics - OEM EDFA Module - AEDFA-23
Specifications |
|
|---|---|
| Amplifier Type: | EDFA - Erbium-Doped Fiber Amplifier |
| Wavelength Range: | 1528-1563nm |
| Max Output Power: | 23 dBm |
| Nominal Gain: | 37 dB |
Features
- Gain Flattening Filtering
- APC or AGC Control Mode
- Input Power Monitoring
Applications
- SONET/SDH Systems
- LAN and MANs
- Fiber Optic Sensing
- CATV Networks
- Laboratory
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Amonics OEM EDFA Module is an ideal building block for OEM system integrators as it performs all the functions of an EDFA ready for system integration.
The Amonics OEM EDFA Module offers three different control modes including ACC, APC and AGC to meet different requirements.
The Amonics OEM EDFA Module is used in SONET/SDH Systems, LAN and MANs, Fiber Optic Sensing, CATV Networks, and Laboratory.
The operating wavelength range of the Amonics OEM EDFA Module is 1528nm – 1563nm.
The Amonics OEM EDFA Module requires only a single +5V power supply.
