Extended L-Band DWDM EDFA - AEDFA-L-EX2-DWDM
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2014
Description
L-Band and Extended L-Band DWDM EDFA devices from Amonics are expertly crafted under a HKQAA ISO 9001 certified quality management system, ensuring high standards in production quality. Please note that the ISO 9001:2008 certification is specific to the Hong Kong production site. These Erbium-doped Fiber Amplifiers (EDFA) are designed to deliver exceptional performance with their high-power pump lasers and high-stability pump combiners, making them robust solutions for high power boosting requirements.
These EDFAs are characterized by their high output power and high gain, coupled with very low noise levels. They are highly customizable to accommodate a variety of input signal levels, making them versatile for numerous demanding applications. The devices are microprocessor-controlled and offer turnkey operation, providing users with illustrative alarms and status indicators for easy monitoring. An integrated RS232 computer interface facilitates straightforward control, diagnostic functions, and data acquisition.
Available in both benchtop and rackmount casings, these EDFAs are designed for convenience and flexibility in different settings. The devices are equipped with a range of features that enhance their reliability and durability, ensuring they meet the rigorous demands of optical communication systems. The EDFAs are an excellent choice for those seeking a high-performance solution in L-band and extended L-band DWDM applications.

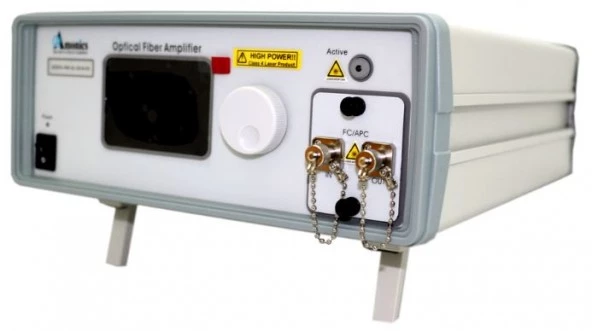

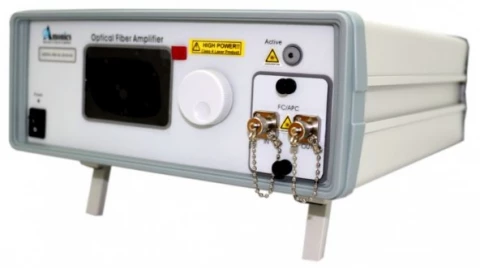

Extended L-Band DWDM EDFA - AEDFA-L-EX2-DWDM
Specifications |
|
|---|---|
| Amplifier Type: | EDFA - Erbium-Doped Fiber Amplifier |
| Wavelength Range: | 1570 – 1620 nm |
| Max Output Power: | 22 dBm |
| Nominal Gain: | 25 dB |
| Output Fiber Type: | SMF-28 |
Features
- Turnkey Device: Easy to operate with a user-friendly interface.
- RS232/Ethernet Computer Interface: Allows for seamless control, diagnostics, and data acquisition.
- High Output Power: Capable of delivering robust performance for demanding applications.
- High Gain: Provides significant amplification for a wide range of input signals.
- Low Noise Figure: Ensures minimal signal distortion and high-quality output.
- Highly Reliable and Durable: Built to withstand rigorous use and provide long-lasting performance.
- Mechanical Safety Control: Features a key-lock switch and BNC interlock key for enhanced safety.
- Optical Power Monitoring: Monitors both output and optional input power for precise control.
Applications
- DWDM Systems: Enhances wavelength-division multiplexing networks with stable amplification.
- SONET/SDH Systems: Supports synchronous optical networking for long-distance transmissions.
- Optical Communication Networks: Ideal for high-capacity optical transport networks.
- Fiber Optic Sensing: Provides reliable amplification for distributed sensing applications.
Frequently Asked Questions
The Amonics Extended L-Band DWDM EDFA is used for DWDM applications, SONET/SDH systems, optical communication, fiber optic sensing, booster, in-line, pre-amp, and scientific applications.
The key features of the Amonics Extended L-Band DWDM EDFA include a turnkey device, RS232/Ethernet computer interface, high output power, high gain, low noise figure, and high reliability and durability.
The specifications of the Amonics Extended L-Band DWDM EDFA include an operation temperature of 0 to +40 degrees Celsius, a storage temperature of -10 to +70 degrees Celsius, and a power supply of VAC 90 – 240, 47 – 63Hz.
The ordering options for the Amonics Extended L-Band DWDM EDFA include the AEDFA-L-DWDM, AEDFA-L-EX1-DWDM, and AEDFA-L-EX2-DWDM.
The Amonics Extended L-Band DWDM EDFA is manufactured under a HKQAA ISO 9001 certified quality management system. The ISO 9001:2008 certification applies to the Hong Kong production site only.
