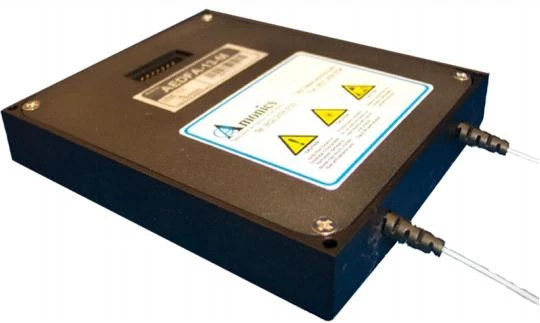

Amonics - CATV EDFA Module - AEDFA-CA-13
Amonics Limited
OVERVIEW
Amonics EDFA module version is an ideal building block for OEM systems integrators as it performs all the functions of an EDFA ready for system integration.This includes photo detection of output signal and/or input signal. Pump laser protection and alarms are equipped as well. It requires only a single +5V power supply.
SPECIFICATION
- Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
- Wavelength Range: 1535 - 1560 nm
- Max Output Power: 13 dBm
- Nominal Gain: - dB
- Polarization Dependent Gain: 0.5 dB
Applications
- SONET/SDH Systems
- LANs and MANs
- Fiber Optic Sensing
- CATV Networks
- Laboratory
KEY FEATURES
- Gain Flattening Filtering
- APC or AGC Control Mode
- Output Power Monitoring
