Description

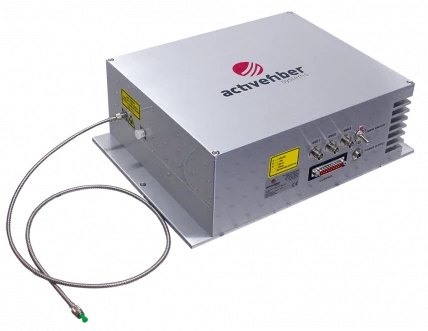

Compact, alignment-free and all-fiber picosecond laser source for CARS microscopy delivering synchronized pump and Stokes pulses from a single fiber end. This air-cooled and turn-key CARS laser source has a great benefit for the user as the fiber delivery eliminates alignment of the spatial and temporal pulse overlap.

High-quality and high-speed microscopic multimodal nonlinear imaging is possible by e.g. simultaneously probing the CARS CH-vibrational-levels of lipids around 2850 cm-1, the second harmonic generation (SHG) and the two-photon excited fluorescence (TPEF) signals.

Dual-Wavelength Picosecond Fiber Laser for Nonlinear Microscopy - CARS and SRS

Visit the Active Fiber Systems GmbH Store

Specifications

Bandwidth: 1400 nm
Center Wavelength: 1037.5 nm
Output Power: 250 mW
Polarization: Linear
Wavelength Range 1: 1025-1050 nm
Wavelength Range 2: 770-960 nm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

The following specs show only our exemplary main platforms. We happily customize a system exactly to your needs. We show the specs for the CARS standard version / CARS high-resolution version / SRS version

  • Tuning range:
    2700 cm-1 to 3300 cm-1 /
    2700 cm-1 to 3300 cm-1 /
    1400 cm-1 to 3800 cm-1
    (further extendable with large bandwidth options)
  • Tuning speed:
    < 1 s (full-range) /
    < 2 s (full-range) /
    < 8 s (full-range)
  • Output wavelength 1: 1015 nm ... 1070 nm
  • Output wavelength 2: 750 nm ... 960 nm
  • Spectral width wavelength 1 (FWHM):
    < 15 cm-1 /
    < 15 cm-1 /
    < 15 cm-1 (>2000cm-1) and < 20 cm-1 (<2000cm-1)
  • Spectral width wavelength 2 (FWHM):
    < 40 cm-1 /
    < 15 cm-1 /
    < 15 cm-1 (>2000cm-1) and < 20 cm-1 (<2000cm-1)
  • Repetition rate wavelength 1:
    1 MHz ... 3 MHz /
    1 MHz ... 4 MHz /
    18 MHz
  • Repetition rate wavelength 2:
    1 MHz ... 3 MHz /
    1 MHz ... 4 MHz /
    9 MHz
  • Pulse duration wavelength 1 (FWHM) : < 60 ps
  • Pulse duration wavelength 2 (FWHM) : < 30 ps
  • Average power wavelength 1:
    > 100 mW @ 1 MHz and > 300 mW @ 3 MHz /
    >  50 mW @ 1 MHz and > 200 mW @ 4 MHz /
    > 200 mW @ 18 MHz
  • Average power wavelength 2:
    > 10 mW @ 1 MHz and > 30 mW @ 3MHz /
    > 15 mW @ 1 MHz and > 60 mW @ 4 MHz /
    > 50 mW @ 9 MHz
  • RIN of wavelength 1: - / - / < -145 dBc/Hz @9 MHz
  • Polarization: Linear
  • Beam quality: Fiber-coupled or free space (M^2 < 1.2) / Free space (M^2 < 1.2)
  • Dimensions laser (W×D×H):
    260 mm × 320 mm × 150 mm /
    560 mm × 410 mm × 140 mm /
    710 mm × 410 mm × 140 mm
  • Mass: < 15kg / < 35kg / <35kg
  • Power consumption: < 100 W (24 V power supply)
  • Cooling: air-cooled

Applications

  • CARS spectroscopy and microscopy
  • Microscopic multi-modal nonlinear imaging (CARS, SHG, TPEF)
  • SRS microscopy

Frequently Asked Questions

What are the features of the Dual-Wavelength Picosecond Fiber Laser?
The features of the Dual-Wavelength Picosecond Fiber Laser include a tuning range of 2700 cm-1 to 3300 cm-1 for the CARS standard version, a tuning speed of less than 1 second for the full range, and a linear polarization.
What is the average power of the Dual-Wavelength Picosecond Fiber Laser?
The average power of the Dual-Wavelength Picosecond Fiber Laser is greater than 100 mW at 1 MHz and greater than 300 mW at 3 MHz for wavelength 1, and greater than 10 mW at 1 MHz and greater than 30 mW at 3 MHz for wavelength 2.
What is the cooling system of the Dual-Wavelength Picosecond Fiber Laser?
The cooling system of the Dual-Wavelength Picosecond Fiber Laser is air-cooled.
What is the Dual-Wavelength Picosecond Fiber Laser used for?
The Dual-Wavelength Picosecond Fiber Laser is used for CARS spectroscopy and microscopy, microscopic multi-modal nonlinear imaging (CARS, SHG, TPEF), and SRS microscopy.
What is the pulse duration of the Dual-Wavelength Picosecond Fiber Laser?
The pulse duration of wavelength 1 is less than 60 ps and the pulse duration of wavelength 2 is less than 30 ps.
