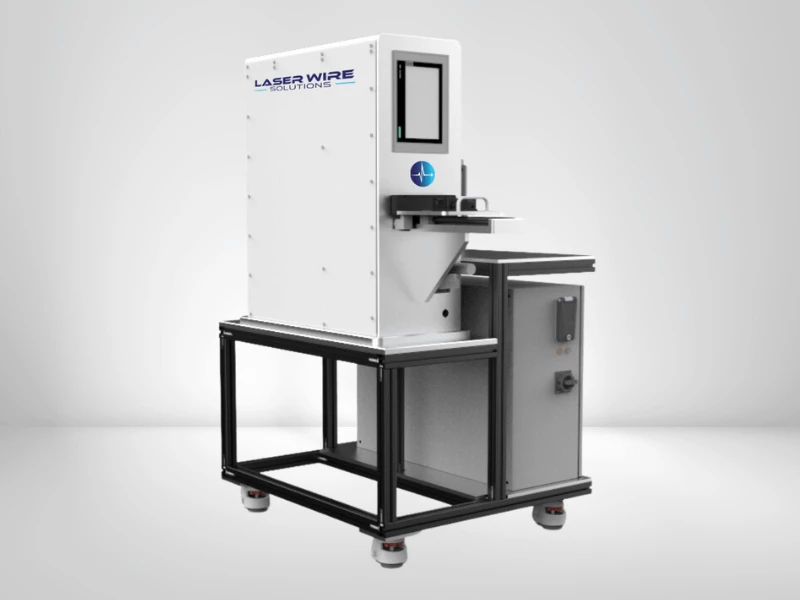

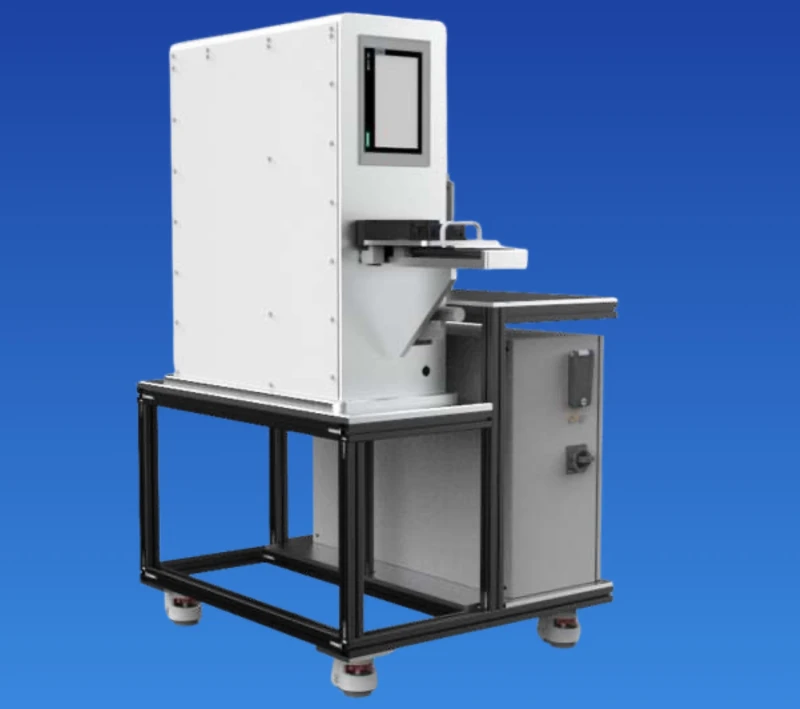

Odyssey-4 Laser Wire Stripping Machine

Name: Odyssey-4 Laser Wire Stripping Machine
Brand: Laser Wire Solutions
Availability: InStock

No photo

Description

The Odyssey-4 is a high precision system for the stripping of enamels from small gauge wires down to 58 AWG and even smaller. It is the perfect solution for medical device manufacturing.

The Odyssey 4.3 is the next generation, a true game-changer in the world of wire stripping. The improved design allows you to strip an astounding 40 wires of 40AWG simultaneously. Find out more below about how we’ve improved this iconic machine.

Specifications

Wire Coating Type:	Polyimide
Max Strip Length:	70 mm
Max Wire Diameter:	0.2 mm
Processing Speed:	3000 mm/sec
Fume Extraction Unit:	Included
Laser Type:	DPSS
Laser Safety Class:	Class 4

Download Data Sheet

Features

65 x 65 mm processing area

Mobile system with ergonomic design

Improved fixture plate capable of holding more wires

Quiet operation

Improved HMI interface

Connect recipes for bespoke processing

Applications

Micro Wires

Medical Wires

Catheter Wiring

Polyurathane Enamel

Polyester Enamel

Polyester-imide

Polyamide-imide

Kapton

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United Kingdom

Sold by:

Laser Wire Solutions

On FindLight:

since 2022

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

Is this safe to use on the production shop floor?

Yes it is! With the ergonomic design and the included trolley system, the Odyssey-4.3 can be used in any area of the production shop floor and moved around to suit your requirements.

How many wires can be stripped at once and how are the wires loaded?

With the Odyssey-4.3, you can process up to 40 wires simultaneously, once loaded this can take up to 3000 mm/s (120″/s) to process. The wires are loaded via a fixture plate which is then placed into the machine.

Can you provide my team with training?

Of course. We supply a training video with the machine order which we recommend watching before first using the machine; you'll also have the option to purchase additional training packages for your team if required.
