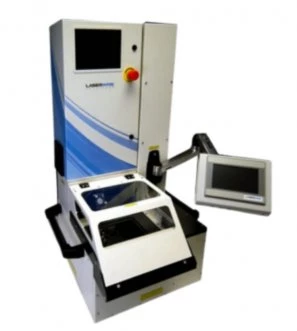

Mercury-2 Laser Stripping Machine
Description
The Laser Wire Solutions Mercury 2 strips wires and shielded cable ranging in size from 0.025 – 5 mm OD (0.001" – 0.2"). The laser is strongly absorbed by the wire/cable insulation causing it to melt or vaporize.
By stripping from above and below a slug of insulation can be separated from the main wire/cable insulation. The slug can be left on to keep the wire strands together, only being pulled off by the Operator immediately before termination.
The laser light fully reflects from the wire conductor ensuring there can never be nicked or scraped. In the case of shielded cables, the laser can be used to cut off the jacket, the laser light reflecting from the shield or aluminized foil. The shield needs to be reasonably complete (>80% coverage) in order to protect the inner wire insulation.
Mercury-2 Laser Stripping Machine
Specifications |
|
|---|---|
| Wire Coating Type: | Polyimide, Urethane, Lacquer, Formvar, Other |
| Max Strip Length: | 125 mm |
| Max Wire Diameter: | 5 mm |
| Processing Speed: | 250 mm/sec |
| Fume Extraction Unit: | Unspecified |
| Laser Type: | Unspecified |
| Laser Safety Class: | Not classified |
Features
- A large 5″ x 7″ (127 mm x 178 mm) working area, allowing multiple wires to be stripped in one go.
- A standard fixture plate to position wires for improved accuracy. However, if required a custom fixture can be designed to meet your particular wire configuration.
- Dual laser focus nozzles to give a 360 degree strip around the wire (wires are stripped from above and below sequentially).
- Dual axis (X & Y) motion allows cross-cuts, window strips, cross-cuts with slits (for easy jacket removal).
- Sealed laser technology and therefore safe to use on an open shop floor.
- Simple to operate by means of a touchscreen with pre-programmed strip parameters.
- Virtually no maintenance and runs from standard electrical supply.
Applications
- Fluoropolymers, such as PTFE, ETFE, PFA
- Polyethylene
- Nylon
- Silicone
- PVC
- Rubber
- Mylar
- Fiberglass
- Polyurethane
- Polyester
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2022
Frequently Asked Questions
The Mercury-2 Laser Stripping Machine can handle wires and shielded cables ranging in size from 0.025 – 5 mm OD (0.001" – 0.2").
The laser is strongly absorbed by the wire/cable insulation, causing it to melt or vaporize. By stripping from above and below, a slug of insulation can be separated from the main wire/cable insulation.
Yes, the laser can be used to cut off the jacket of shielded cables, with the laser light reflecting from the shield or aluminized foil. The shield needs to be reasonably complete (>80% coverage) to protect the inner wire insulation.
The features of the Mercury-2 Laser Stripping Machine include a large working area, a standard fixture plate for improved accuracy, dual laser focus nozzles for a 360-degree strip around the wire, dual axis motion for various strip types, sealed laser technology for safety, simple operation via touchscreen, and virtually no maintenance requirements.
The Mercury-2 Laser Stripping Machine can strip a wide range of materials including fluoropolymers, polyethylene, nylon, silicone, PVC, rubber, Mylar, fiberglass, polyurethane, and polyester.
