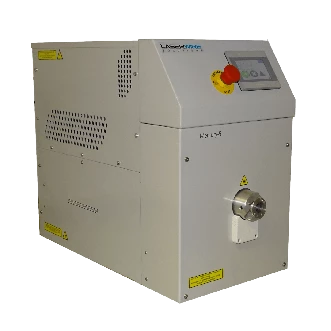

Mercury-5 Laser Stripping Machine

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: 280 mm
Max Wire Diameter: 6 mm
Processing Speed: 100 mm/sec
Fume Extraction Unit: Unspecified
Laser Type: Excimer, Unspecified
Laser Safety Class: Not classified
Document icon Download Data Sheet Download icon

Features

  • Compact size: can be placed on a bench and operated from a sitting position with space for other tools and parts
  • Versatile: strips single conductor cables with outer diameters ranging between 0.24″ (6 mm) and 0.79″ (20 mm) and up to 11″ (280 mm) strip length
  • Reliable: proven laser source and optics
  • Clean and precise: ​nick-free stripping with no damage to underlying conductor
  • Flexible and fast: fast loading of single wires / cable with auto-focus to enable rapid change-over between wire sizes
  • Automatic cable centralizer to ensure repeatability
  • Ease of use: operator selects via touchscreen the desired stripping parameters.

Applications

  • Fluoropolymers, such as PTFE, ETFE, PFA
  • Polyethylene
  • Nylons
  • Silicone
  • PVC
  • Rubber
  • Mylar
  • Fiberglass
  • Polyurethane
  • Polyester
