Odyssey-8 Laser Wire Stripping Machine
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2022
Description

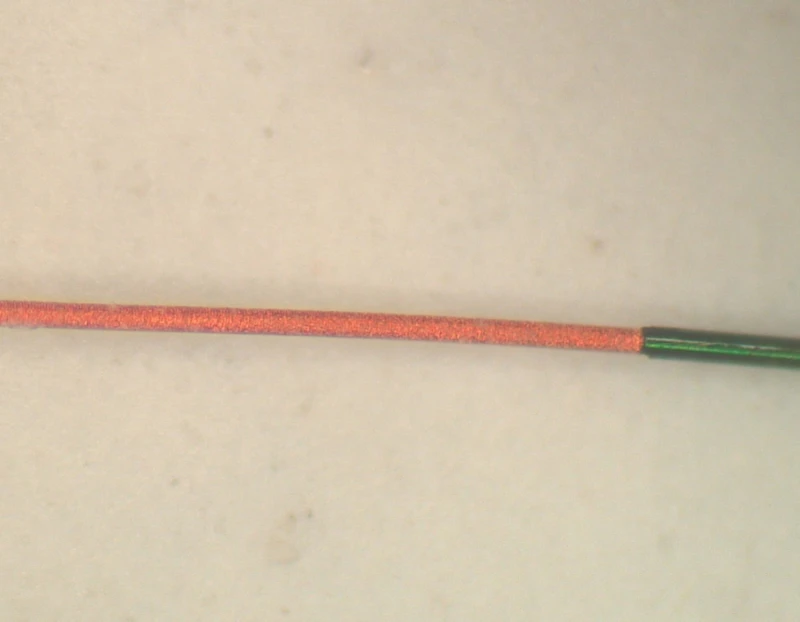

Whether you’re handling single, bifilar, or trifilar, the Odyssey-8 is the versatile wire processor that will make your production line smoother. The easy-to-use, recipe controlled system requires minimal training with your operators while ensuring consistent results in seconds. The machine can handle wires with a diameter of less than 0.2 mm (24 AWG) with a variety of materials with ease so it can be used for a wide range of applications.

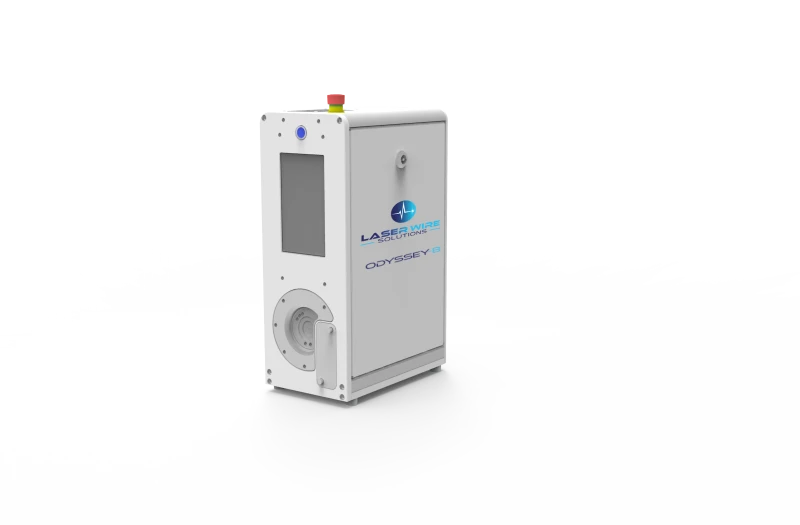

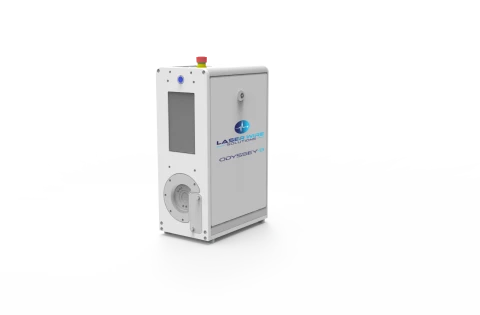

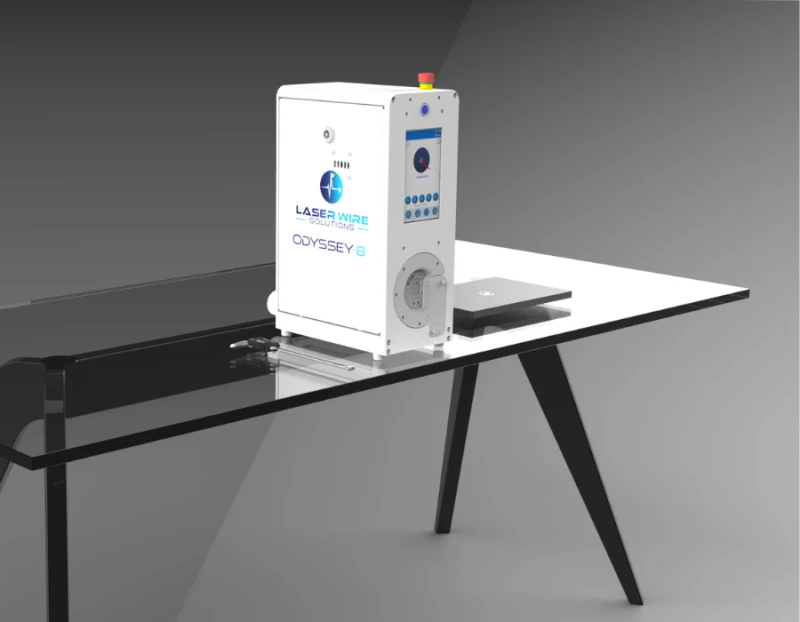

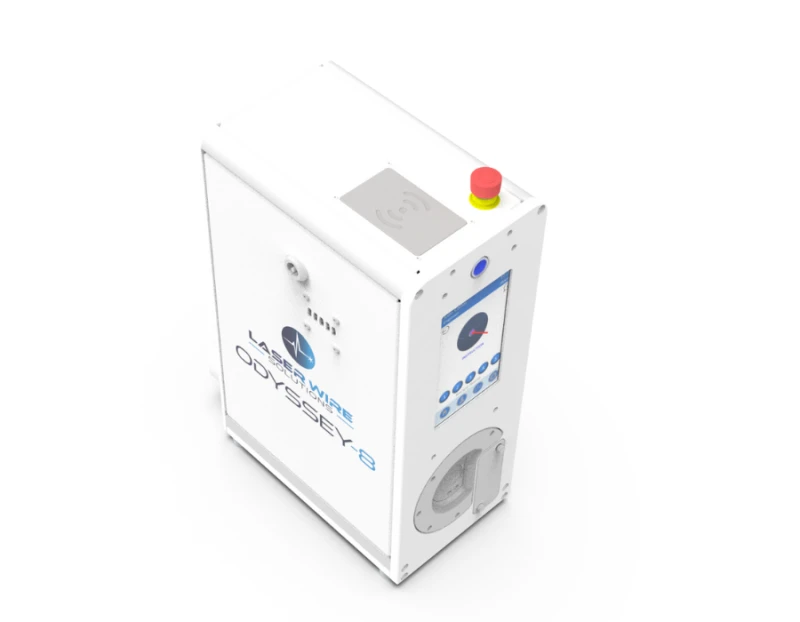

No more heavy-duty machinery that takes up vital space in your factory. With a small footprint of 200 x 320 x 470 mm (LxWxH), the Odyssey-8 will slot straight into your production line on any bench wherever it is required. It comes with an integrated extractor, with a piece and laser hour counter to help guide servicing so you can keep your production line running.
By utilizing the power of laser processing you’ll be able to achieve high quality results, without having to rely on operator capability. It makes wire processing an easy task that can be easily completed in a matter of seconds.
While lasers can process most wire and cable materials, we recommend producing a small sample of wire for testing to ensure processing suitability.
All Features
Ease of Use
– Automatic wire detection
– Auto start sensor
– Benchtop system
Fast Process
– 3 second cycle time
– 360 degree strip
– Up to 6 mm processing length
Spares & Accessories
– Easily available, contact sales@laserwiresolutions.com
Odyssey-8 Laser Wire Stripping Machine
Specifications |
|
|---|---|
| Wire Coating Type: | Polyimide, Other |
| Max Strip Length: | 6 mm |
| Max Wire Diameter: | 0.15 mm |
| Processing Speed: | 3000 mm/sec |
| Fume Extraction Unit: | Included |
| Laser Type: | DPSS |
| Laser Safety Class: | Class 4 |
Features

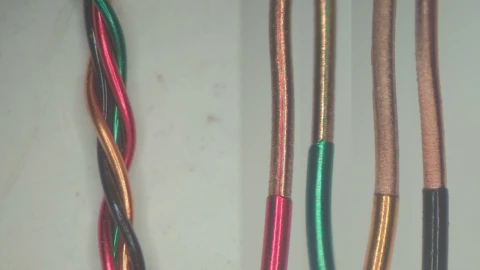

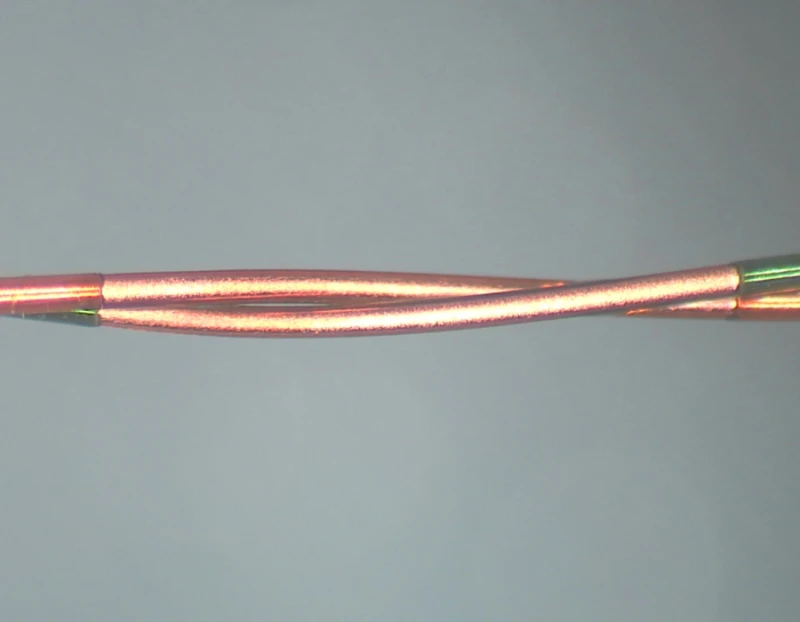

- Suitable for single conductors, twisted pairs, bifilar, and trifilar wires
- Under 3 second cycle time
- Up to 6 mm* Processing Length
- 1-Year Warranty
- Automatic wire detection
- Auto start sensor
- Benchtop system
Applications
- Micro Wires
- Medical Wires
- Catheter Wiring
- Aerospace Wiring
- Polyurathane Enamel
- Polyester Enamel
- Polyester-imide
- Polyamide-imide
- Kapton
Frequently Asked Questions
The Odyssey-8 is best suited to end wire strips via the hand insert to strip the end of the wire but an integrated version of the Odyssey-8 is available on request.
The Odyssey-8 is capable of processing lengths of up to 6 mm, but longer parameters may be available on request.

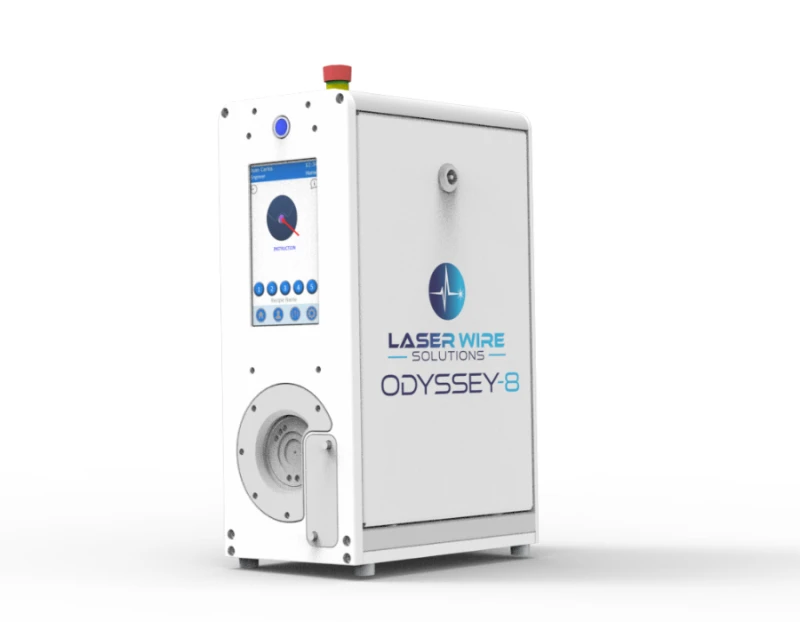

The Odyssey-8 utilizes a 7-inch touchscreen display which can be accessed using an RFID badge login.
Email sales@laserwiresolutions.com to discuss your requirements. We recommend sending a sample of your wire for us to process and check the suitability, we’ll then provide you with a report to ensure the results meet your requirements.

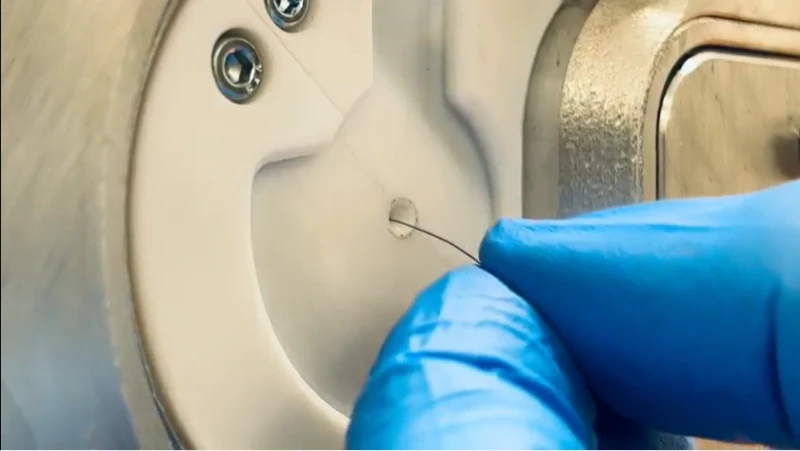

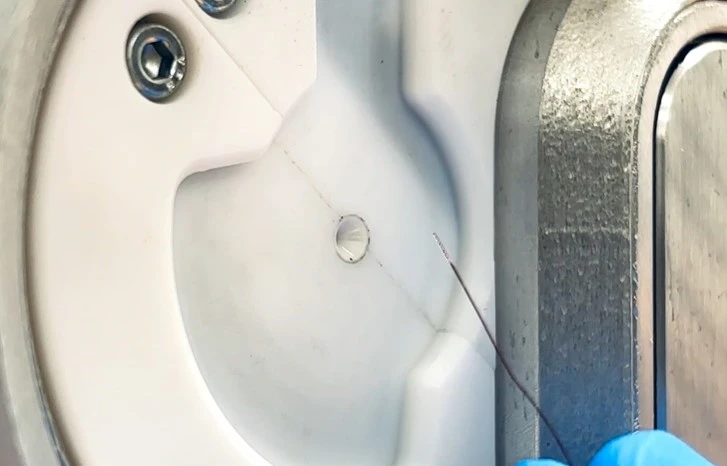

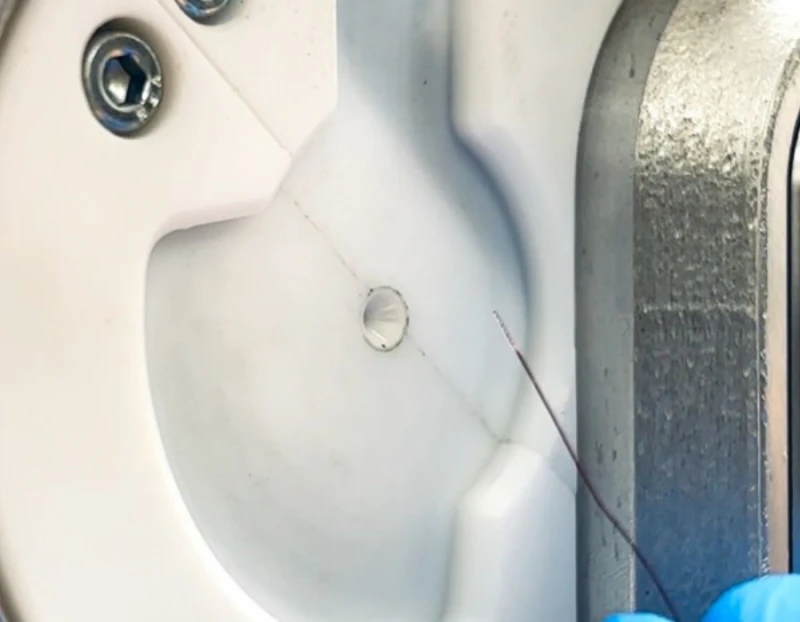

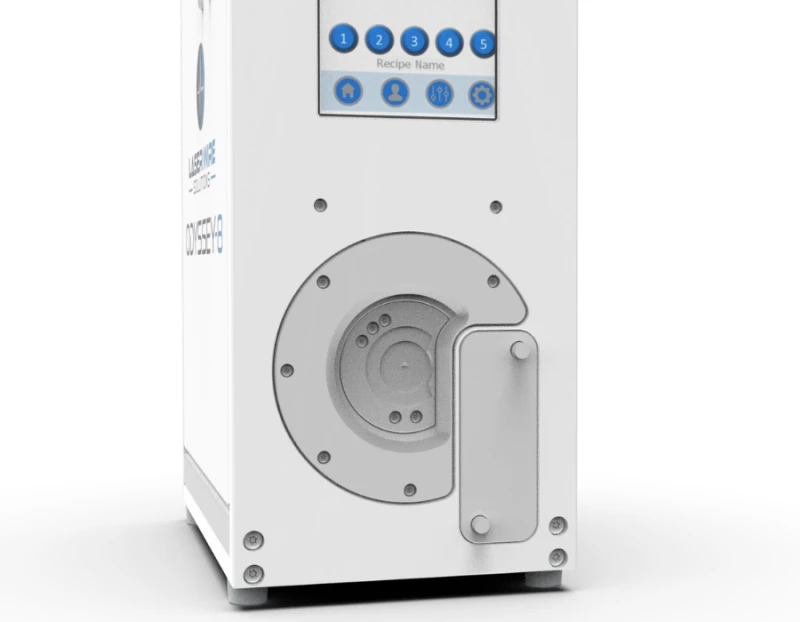

The Odyssey-8 is designed for low wire counts where the technician manually inserts the wire to the aperture at the front of the machine, the Odyssey-4 is designed for high volume applications where the technician can load multiple wires on a fixture plate and process all at once.
