Laser Wire Strippers

The Gemini-4E.1 redefines wire stripping by allowing the processing of a greater number of wires simultaneously and with our improved model, you’ll have the option of three different processing setups to choose from.  Get the visibility you prefer when processing your wires and cables. These laser wire strippers offer an ...

Specifications

Wire Coating Type: Polyimide
Max Strip Length: 100 mm
Max Wire Diameter: 2mm mm
Processing Speed: 2000 mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet

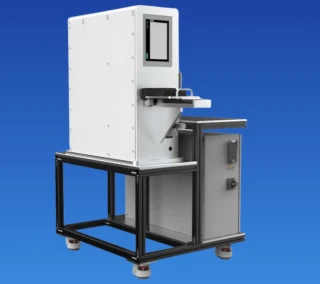

The Odyssey-4 is a high precision system for the stripping of enamels from small gauge wires down to 58 AWG and even smaller. It is the perfect solution for medical device manufacturing.  The Odyssey 4.3 is the next generation, a true game-changer in the world of wire stripping. The improved design allows you to strip an ...

Specifications

Wire Coating Type: Polyimide
Max Strip Length: 70 mm
Max Wire Diameter: 0.2 mm
Processing Speed: 3000 mm/sec
Fume Extraction Unit: Included
...
Data Sheet
Enameled Wire Laser Layer Stripping Machine with Low Power Consumption
Sinolaser System & Equipment Co Ltd
This laser cutting machine can remove the enamel or other coatings of enameled wires, magnet wire, inductors, coils and other electronic components, which can effectively solve the bottleneck of production efficiency to meet the requirement of the pipeline operation. Consisting of diode side-pumped laser, optical scanning ...

Specifications

Wire Coating Type: Lacquer, Formvar, Other
Max Strip Length: mm
Max Wire Diameter: mm
Processing Speed: -- mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
Double Head Laser Wire Stripping Machine QA-C30-2H
QUESTT ASIA Technology Co., Ltd
The traditional processing for wire stripping is realized by wire stripping pliers or a knife. As a result that mechanical stripping might cause an extrusion and cutting force to wire core due to jaw contact, and as such, damage to the wire core. If the jaw does not touch metal wire, the insulation layer can't be cut cleanly. ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: -- mm
Max Wire Diameter: -- mm
Processing Speed: 300 mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
Four Head Laser Wire Stripping Machine QA-FL20-4H
QUESTT ASIA Technology Co., Ltd
The traditional processing for wire stripping is realized by wire stripping pliers or a knife. As a result mechanical stripping might cause an extrusion and cutting force to wire core due to jaw contact, and as such, damage to the wire core. If the jaw does not touch metal wire, the insulation layer can't be cut cleanly. ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: -- mm
Max Wire Diameter: -- mm
Processing Speed: 300 mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
Automation Two Head Laser Wire Stripping Machine QA-FL20-2H
QUESTT ASIA Technology Co., Ltd
The traditional processing for wire stripping is realized by wire stripping pliers or a knife. As a result mechanical stripping might cause an extrusion and cutting force to wire core due to jaw contact, and such damage to the wire core. If the jaw does not touch metal wire, the insulation layer can't be cut cleanly. ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: -- mm
Max Wire Diameter: 0.01 mm
Processing Speed: 200 mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
DECA Laser Wire Stripping Machine
DECA Manufacturing, LLC
Some projects require more precise wire stripping because​nicking the wires can cannot be tolerated by the design requirements and specification. Moreover, tiny gauge wires cannot be reliably stripped with metal blades, while complex strip patterns, wire coverings are difficult to remove with hand or ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: -- mm
Max Wire Diameter: -- mm
Processing Speed: -- mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
CO2 Laser Wire Stripping Machine - Metal Laser Cutting Machine SD-062A-063A
COMOSS ELECTRONIC CO., LTD.
This machine is capable of removing wire insulation or coatings, ablating different shapes of magnet wires or stripping composite wires in fast and precise fashion. For the strip of composite wires such as flexible flat cables (FFC), USB 3.1 and USB4 coaxial cables, the outer aluminum foil of the core wire and the insulating ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: -- mm
Max Wire Diameter: -- mm
Processing Speed: -- mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
CO2 Laser Wire Stripping Machine
Aohua Laser Technology Co., Ltd
This CO2 laser wire stripping machine is designed for stripping wire from metal shielding layer. Works especially well for processing micro coaxial cables. With high performance German IPG fiber laser, this four-path laser completely strips metal shielding layer without hurting the insulator. The machine is stable and reliable ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: 100 mm
Max Wire Diameter: -- mm
Processing Speed: 7000 mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
Fiber Laser Wire Stripping Machine
Aohua Laser Technology Co., Ltd
Fiber laser wire stripping machines are designed to strip wire away from the metal shielding layers in a number of wire applications, though most often for processing micro coaxial cables. With the use of a high performance German IPG fiber laser, the four-path laser will completely strip away the metal shielding layer wire ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: 0.4 mm
Max Wire Diameter: 0.02 mm
Processing Speed: 7000 mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
The Mercury-6 bench-top rotary laser wire stripper heralds the latest breakthrough in stripping multi-layer cables. It is particularly suited for stripping high voltage electric vehicle cables. It features a 2-D optical system that has both a linear and rotary axis to allow circumferential and length slit. This also gives it the ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: 200 mm
Max Wire Diameter: 2 mm
Processing Speed: 250 mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
The Mercury-5 bench-top laser wire stripper identifies a gap in the market for an affordable laser method of stripping large gauge wires, especially outer jackets of high voltage cables. It also has the capability to strip longer lengths of wires/cables, up to 11″ (280 mm). It grips, strips and releases the cable with a unique ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: 280 mm
Max Wire Diameter: 6 mm
Processing Speed: 100 mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet

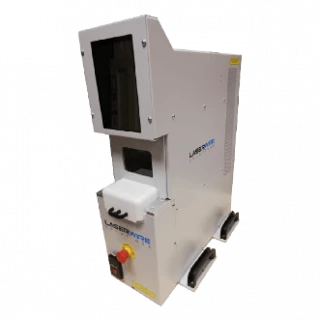

The Mercury-4E is an extended version of our highly popular Mercury-4 laser wire stripper. It remains a relatively compact bench-top unit, but provides a processing area of 2.75″ (70mm) x 4″ (100 mm) to allow a greater quantity of cables to be processed at one time.  The Mercury-4E is suited for: removing jackets from shielded ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: 100 mm
Max Wire Diameter: 6 mm
Processing Speed: 2000 mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
NoNic Benchtop Handheld Wire Stripping System
Gaotec Solutions Pte Ltd
Developed by NASA in the 1970s – 1980s as part of the space shuttle program, as the risk of damaging the delicate electrical conductor was apparent with traditional stripping methods/systems. The NoNic™ Benchtop provides the most accurate tools to strip and slit wire insulation successfully. No other product on the market can ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: -- mm
Max Wire Diameter: 0.762 mm
Processing Speed: -- mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
The Mercury-4 is the culmination of years of research into laser stripping of wires and cables. It has been developed in partnership with Schleuniger and optimized in every way for your production needs.  The Mercury-4 strips wires and shielded cable ranging in size from 0.001" to 0.24" (0.025 mm to 6 mm) outer diameter.The ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: 2000 mm
Max Wire Diameter: 6 mm
Processing Speed: 2000 mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet

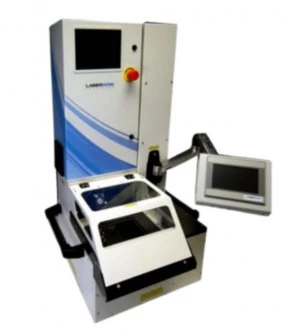

The Laser Wire Solutions Mercury 2 strips wires and shielded cable ranging in size from 0.025 – 5 mm OD (0.001" – 0.2"). The laser is strongly absorbed by the wire/cable insulation causing it to melt or vaporize. By stripping from above and below a slug of insulation can be separated from the main wire/cable insulation. The slug ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: 125 mm
Max Wire Diameter: 5 mm
Processing Speed: 250 mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
Laser Wire Stripper
Suzhou Sholaser Technology Co., Ltd.
The principle of laser wire stripping is: the thermal decomposition effect and the destruction of molecular chain effect of laser are used to process the material to be stripped. According to the material characteristics of different layers, two different laser types can be selected to process the wire.CO2 laser wire stripper can ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: 2 mm
Max Wire Diameter: -- mm
Processing Speed: -- mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
JUPITER LX - Laser Wire Stripper
JUEN Corp.
The JUPITER LX laser wire stripper uses a 10W CO2 laser system. It provides the possibility to strip the wire from either side as well as possibility to strip both sides the wire in forward and return path. This guarantees a precision cut and clean separation of the jacket without any damage to metal conductor. The JUPITER LX ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: -- mm
Max Wire Diameter: -- mm
Processing Speed: -- mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
OPTEC ECHO 360: FINE-WIRE UV LASER STRIPPER
Lasea SA
Conventional lasers, such as a 355 nm YAG, have a focused, Gaussian beam that scans the insulator using the highest intensity ‘point’ of the beam. This makes it difficult to regulate the amount of energy needed to strip the coating without changing the surface of the metal conductor.The Echo 360’s flat-top ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: -- mm
Max Wire Diameter: 1 mm
Processing Speed: -- mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
Laser Wire Stripping Machine WI-1W30-50-2-T-V
Sinolaser System & Equipment Co Ltd
It adopts latest patented technology, which provided excellent solutions for the needs of high speed window making for several lines of antennas in large area.

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: -- mm
Max Wire Diameter: -- mm
Processing Speed: -- mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
Laser Wire Stripping Machine For Large Gauge Wires
Sinolaser System & Equipment Co Ltd
It adopts unique technology, which allows laser beam rotates around the wires that need to process. This machine can quickly process not only insulation but also shield layers of thick cables and coaxial wires. On one hand, the traditional way to process thick cable realized by mechanical knife, which may cause damage to the inner ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: -- mm
Max Wire Diameter: -- mm
Processing Speed: -- mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
Laser Wire Stripping System WI-1K30/50-AR
Sinolaser System & Equipment Co Ltd
It suits irregular section wires processing. The short laser beam focus ensures not only never cause damage to the inner layer, but also covers the processing area which needed. It adopts unique technology, which allows laser beam rotates around the wires that need to process. This machine can quickly process not only insulation ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: -- mm
Max Wire Diameter: -- mm
Processing Speed: -- mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
Fiber Laser Wire Stripper WI01K20-4-T-V
Sinolaser System & Equipment Co Ltd
This laser wire stripper is a newly developed equipment of Lingyun Photoelectronic System Co., Ltd. Three models are available for this equipment: Diode end-pumped Nd: YAG, fiber laser and CO2 laser. The product has such characteristics as high precision, high velocity, easy operation, stable capacity, advanced ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: -- mm
Max Wire Diameter: -- mm
Processing Speed: -- mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
Laser Wire Stripper For Optical Fiber And Cables WF-1W30-2S
Sinolaser System & Equipment Co Ltd
Laser Wire Stripper for optical fiber and cables.

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: -- mm
Max Wire Diameter: -- mm
Processing Speed: -- mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet
Laser Wire Stripping Machine M30RF
MimoWork Laser
MimoWork Laser Wire Stripping Machine M30RF is a desktop model which is simple in appearance but exerts an important effect on stripping insulation layer from the wire. The capability of M30RF for continuous processing and the smart design makes it the first choice for multi-conductor stripping. Wire stripping removes sections ...

Specifications

Wire Coating Type: Polyimide, Urethane, Lacquer, Formvar, Other
Max Strip Length: 50 mm
Max Wire Diameter: -- mm
Processing Speed: 6000 mm/sec
Fume Extraction Unit: Unspecified
...
Data Sheet

Frequently Asked Questions

The laser wire stripping machine removes insulation from wires quickly and cleanly, causing no damage to the conductor itself.

Laser wire strippers typically come equipped with a CO2 laser or a Fiber laser. Both types of lasers offer unique advantages, and both laser technologies have advanced to a high degree of reliability.

Laser wire strippers offer high precision and repeatability, high operating speed, ease of use, and the potential for automation. The latter can be very important in an industrial setting where integration into a production line can save in operating costs.

One of the main uses of laser wire stripping is to cut the shield from coaxial cable, in micro-coaxial cables where precision is important. Laser wire strippers are widely used in electronics manufacturing where reproducibility and precision is of utmost importance.

Yes, mechanical wire stripping uses metal blades to cut through the insulation, allowing it to be pulled away over the end of the conductor. Laser-based wire strippers achieve this simply by utilizing laser beam’s ability to selectively remove nonmetallic insulating materials while leaving the metallic conductor untouched.

The price range for laser wire strippers varies significantly, with smaller units being as low as between $1,000-$2,000 and higher end units with robotic capabilities running upwards of 10’s of thousands of dollars or more.

Fast process times, superb precision, and exceptional process control are all characteristics of laser wire stripping. The most significant benefit of laser wire stripping is the elimination of contact with the wire, and by selecting the right laser, it is possible to completely eliminate the possibility of conductor or shield damage.

One piece of equipment can handle a wide range of wire and insulation types, as well as process a variety of wire types without the need for time-consuming setup changes. The key to the answer is the choice of laser engine. CO2 as well as some fiber and DPSS laser emit IR radiation which is absorbed by most insulating materials. Before making a final choice you should consult the specification data sheet and contact the respective supplier to make sure it will run for your application.

There are 38 different Laser Wire Strippers from suppliers and manufacturers listed in this category. In just a few clicks you can compare different Laser Wire Strippers with each other and get an accurate quote based on your needs and specifications. Please note that the prices of Laser Wire Strippers vary significantly for different products based on various factors including technical parameters, features, brand name, etc. Please contact suppliers directly to inquire about the details and accurate pricing information for any product model. Simply navigate to the product page of interest and use the orange button to directly reach out to the respective supplier with one click.

Did You know?

Laser Wire Strippers are automated machines that quickly and precisely ablate (strip) various types of wire insulations. With the advancement of laser and beam delivery technologies, Laser Wire Strippers have entered into mainstream manufacturing. They can quickly and selectively remove wire coating in the desired location. Depending on the type of wire coating, different laser sources are used. Laser Wire Strippers often come ready for integration into automated assembly lines with gantry or programmable loading platforms. Laser wire strippers come with a number of advantages including precision, processing speed and delicate handling of various grades of electric wires. Depending on the laser source of choice, these machines can work with most wire coating materials PVC and various enamels like THEIC, PAI, PVF, PDA, KAPTON2, ETFE, PFA and FEP. The non-contact approach of laser wire strippers keep the conductive material during the stripping process, thus eliminating weak spots and irregularity of conductivity that can be introduced in other more invasive wire stripping methods.
