Description
The Mercury-6 bench-top rotary laser wire stripper heralds the latest breakthrough in stripping multi-layer cables. It is particularly suited for stripping high voltage electric vehicle cables.
It features a 2-D optical system that has both a linear and rotary axis to allow circumferential and length slit. This also gives it the capability to quickly and automatically adjust focus to strip various sizes of cable at the touch of a button from 0.08″ (2 mm) up to 1.18″ (30 mm) outer diameter.
It not only strips the outer insulation, but also cuts the inner Mylar foil shield. A unique cable end finding system ensures that accurate wire lengths are processed.

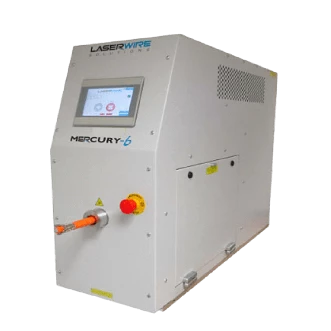

Mercury-6 Laser Stripping Machine
Specifications
| Wire Coating Type: | Polyimide, Urethane, Lacquer, Formvar, Other |
|---|---|
| Max Strip Length: | 200 mm |
| Max Wire Diameter: | 2 mm |
| Processing Speed: | 250 mm/sec |
| Fume Extraction Unit: | Unspecified |
| Laser Type: | Unspecified |
| Laser Safety Class: | Not classified |
Download Data Sheet
Features
- Versatile: strips various sizes of cables, including multi-layer conductor cables, such as outer Coroplast insulation and inner Mylar foil layer on electric vehicle cables, up to 1.18″ (30 mm) outer diameter and up to 7.9″ (200 mm) strip length.
- Flexible and fast: quick loading of single wires / cable with auto-adjustable focus to enable quick change-over between wire sizes
- Powerful: 55-Watt Laser.
- Clean and precise: nick-free stripping with no damage to underlying conductor. Accurate lengths processed with unique wire end locating system.
- Reliable: proven laser source and optics.
- Ease of use: operator selects via touchscreen the desired stripping parameters (including strip lengths, laser power and speed) from the programmed library.
- Compact size: bench-top unit which can be operated from a sitting position with space for other tools and parts.
- Low maintenance: no wear parts on laser or machine itself.
Applications
- Fluoropolymers, such as PTFE, ETFE, PFA
- Polyethylene
- Nylon
- Silicone
- PVC
- Rubber
- Mylar
- Fiberglass
- Polyurethane
- Polyester
Frequently Asked Questions
What sizes of cables can the Mercury-6 Laser Stripping Machine strip?
Can the Mercury-6 strip high voltage electric vehicle cables?
Does the Mercury-6 strip both the outer insulation and the inner Mylar foil shield?
How does the Mercury-6 adjust focus to strip various sizes of cable?
What is the power of the laser used in the Mercury-6?
