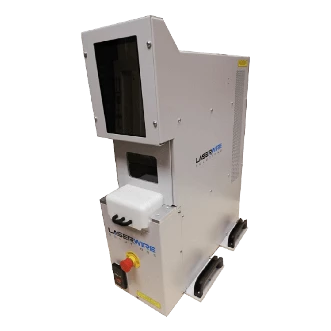

Mercury-4E Laser Stripping Machine
Description
The Mercury-4E is an extended version of our highly popular Mercury-4 laser wire stripper. It remains a relatively compact bench-top unit, but provides a processing area of 2.75″ (70mm) x 4″ (100 mm) to allow a greater quantity of cables to be processed at one time.
The Mercury-4E is suited for:
- removing jackets from shielded multi-conductor cables

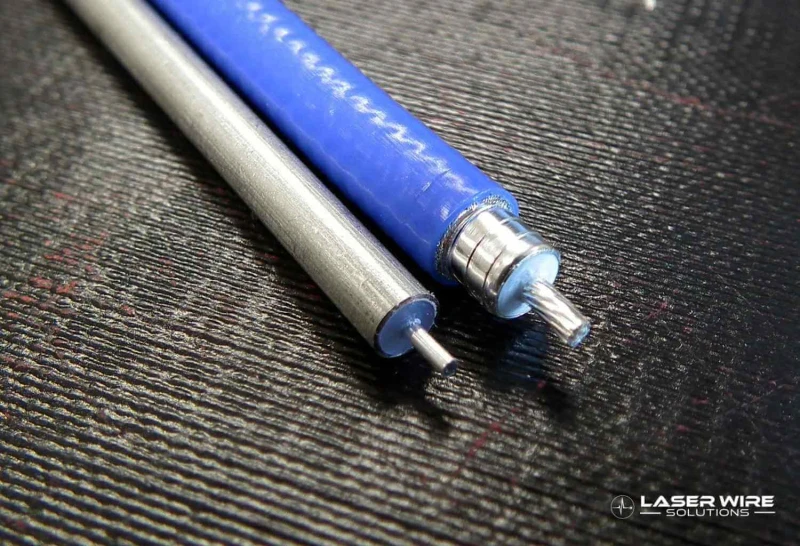

- removing jackets and dielectrics from high performance microwave cables
- cutting aluminized mylar foils of twin-ax cables
- removing bonded insulations.
For bonded materials this may be the best method for insulation removal. In the case of shielded cables, the shield needs to be reasonably complete (>80% coverage) in order to protect the inner wire insulation whilst laser cutting the outer jacket.
Mercury-4E Laser Stripping Machine
Specifications |
|
|---|---|
| Wire Coating Type: | Polyimide, Urethane, Lacquer, Formvar, Other |
| Max Strip Length: | 100 mm |
| Max Wire Diameter: | 6 mm |
| Processing Speed: | 2000 mm/sec |
| Fume Extraction Unit: | Unspecified |
| Laser Type: | Unspecified |
| Laser Safety Class: | Not classified |
Features
- Compact size: bench-top unit that can be used from a seated position with space for other tools and parts.
- Flexibility: strips single conductor, coax and ribbons; 50 AWG to 6 AWG (0.0010 mm2 to 16 mm2).
- Clean and precise: featuring double-sided galvo-scanner technology to allow nick-free stripping, with +/- 0.004” (0.102mm) repeatability for the best quality every time.
- Rapid results: up to 80” (2000 mm) per second stripping speed.
- Dual (X & Y) axis motion – therefore handles all strip types: cross-cut, windows and area ablation; and any shapes: curves and hatched areas, not just straight lines.
- Automation: in-line stripping operation also available.
- Quality checking: in-built camera allows the whole process to be monitored.
- Ease of use: operator selects via touchscreen the desired stripping program from the pre-programmed library and all parameters (strip lengths, laser power and speed, etc) are automatically set.
- Energy efficient: runs from a standard 115 / 230 V electrical supply with no compressed air requirement.
Applications
- Fluoropolymers, such as PTFE, ETFE, PFA
- Polyethylene
- Nylon
- Silicone
- PVC
- Rubber
- Mylar
- Fiberglass
- Polyurethane
- Polyester
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2022
Frequently Asked Questions
The processing area of the Mercury-4E is 2.75" (70mm) x 4" (100mm).
The Mercury-4E can strip single conductor, coax, and ribbons.
The Mercury-4E has a stripping speed of up to 80" (2000mm) per second.
Yes, the Mercury-4E has an in-built camera that allows the whole process to be monitored.
The Mercury-4E runs from a standard 115/230V electrical supply and does not require compressed air.
