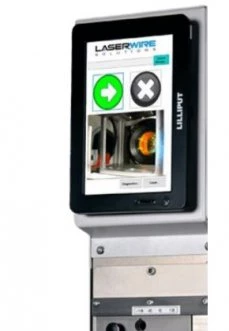

Mercury-4 Laser Stripping Machine
Description
The Mercury-4 is the culmination of years of research into laser stripping of wires and cables. It has been developed in partnership with Schleuniger and optimized in every way for your production needs. The Mercury-4 strips wires and shielded cable ranging in size from 0.001" to 0.24" (0.025 mm to 6 mm) outer diameter.
The Mercury-4 is suited to:
- removing jackets from shielded multi-conductor cables
- removing jackets and dialectrics from high performance microwave cables
- cutting aluminized mylar foils of twin-ax cables
- removing bonded insulations.
Full vaporization can be achieved by passing the laser spot over the wire multiple times at high speed in a hatch pattern. For bonded materials this may be the best method for insulation removal. In the case of shielded cables, the shield needs to be reasonably complete (>80% coverage) in order to protect the inner wire insulation whilst laser cutting the outer jacket.
Mercury-4 Laser Stripping Machine
Specifications |
|
|---|---|
| Wire Coating Type: | Polyimide, Urethane, Lacquer, Formvar, Other |
| Max Strip Length: | 2000 mm |
| Max Wire Diameter: | 6 mm |
| Processing Speed: | 2000 mm/sec |
| Fume Extraction Unit: | Unspecified |
| Laser Type: | Unspecified |
| Laser Safety Class: | Not classified |
Features
- Low cost / excellent ROI: for its functionality lowest cost model available – opens up a massive range of applications. No laser or machine wear parts.
- Compact: lowest footprint model on the market – use from a sitting position with space for other tools and parts.
- Fast: up to 80” (2000mm) per second stripping speed for fastest processing.
- Versatile: strips single conductor, coax and ribbons; 0.0010mm2 to 16mm2 (50 AWG to 6 AWG). All insulations. With dual (X & Y) axis motion it handles all strip types: cross-cut, windows and area ablation; and any shapes: curves and hatched areas, not just straight lines.
- Flexible: fast loading of single wires / cable via a port or use a fixture plate for complex multi-conductors or ultra-thin wires. In-line stripping operation also available.
- Clean and precise: featuring double-sided galvo-scanner technology to allow nick-free stripping, with +/- 0.004” (0.102mm) repeatability for the best quality every time. In-built camera allows the whole process to be monitored.
- Ease of use: operator selects via touchscreen the desired stripping parameters from the programmed library and all parameters (strip lengths, laser power and speed, etc.) are automatically set.
- Energy efficient: runs from a standard 115 / 230 V electrical supply with no compressed air requirement.
Applications
- Fluoropolymers, such as PTFE, ETFE, PFA
- Polyethylene
- Nylon
- Silicone
- PVC
- Rubber
- Mylar
- Fiberglass
- Polyurethane
- Polyester
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2022
Frequently Asked Questions
The Mercury-4 can strip wires and shielded cables ranging in size from 0.001" to 0.24" (0.025 mm to 6 mm) outer diameter.
The Mercury-4 is suited for removing jackets from shielded multi-conductor cables, removing jackets and dialectrics from high-performance microwave cables, cutting aluminized mylar foils of twin-ax cables, and removing bonded insulations.
The laser is strongly absorbed by the wire/cable insulation, causing it to melt or vaporize. By stripping from both sides automatically, a slug of insulation can be separated from the main wire/cable. Full vaporization can be achieved by passing the laser spot over the wire multiple times at high speed in a hatch pattern.
The key features of the Mercury-4 include low cost/excellent ROI, compact size, fast stripping speed, versatility in handling various strip types and shapes, flexibility in loading wires and cables, clean and precise stripping, ease of use with touchscreen controls, and energy efficiency.
The Mercury-4 can strip a wide range of materials including fluoropolymers (such as PTFE, ETFE, PFA), polyethylene, nylon, silicone, PVC, rubber, Mylar, fiberglass, polyurethane, and polyester.
