Description

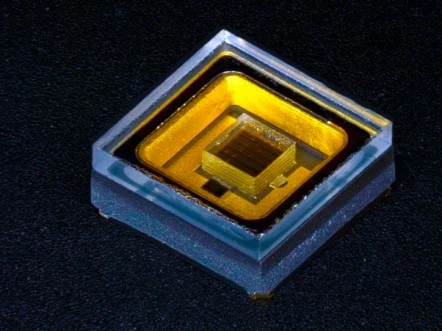

Our all-purpose miniature surface mount device is small – just 3.5 mm square – but packed with power offering 30 mW resulting in superior precision, reliability and efficiency over other models. Custom wavelengths and power levels available upon request.
High Power SMD 300nm
Specifications
| Wavelength: | 300 nm |
|---|---|
| Size (horizontal): | 3.5 mm |
| Size (vertical): | 3.5 mm |
| Output Power (typical): | 30 mW |
| Emission Angle: | 130 degree |
| Driving Current: | 350 mA |
| Driving Voltage: | 6.0 V |
| Expected Lifetime: | > 10,000 hours |
Download Data Sheet
Features
- High Power Output 30 mW (285 nm, 300 nm)
- Standard 3.5 mm x 3.5 mm SMD
- Expected Lifetime >10,000 hours (L70 / 285 nm, 300 nm)
Applications
- Disinfection
- Analytical
- Medical
Frequently Asked Questions
Are custom wavelengths and power levels available for the High Power SMD 300nm?
Yes, custom wavelengths and power levels are available upon request for the High Power SMD 300nm.
What applications is the High Power SMD 300nm suitable for?
The High Power SMD 300nm is suitable for disinfection, analytical, and medical applications.
What is the expected lifetime of the High Power SMD 300nm?
The High Power SMD 300nm has an expected lifetime of >10,000 hours (L70 / 285 nm, 300 nm).
What is the power output of the High Power SMD 300nm?
The High Power SMD 300nm has a power output of 30 mW (285 nm, 300 nm).
What is the size of the High Power SMD 300nm?
The High Power SMD 300nm is 3.5 mm square.
