Description
Our all-purpose miniature surface mounted device (SMD) deep ultraviolet (DUV) LED is small – just 3.5 mm square – but packed with power offering 30 mW resulting in superior precision, reliability and efficiency over other models. Custom wavelengths and power levels available upon request.
*See data sheet for specifications
Advantages:
Mercury-free
Non-Ozone producing
Energy Efficient
Instant on / off Capability
Precision Optical Control
Low Heat Generation
Compact and Rugged
Consistent Output over Time

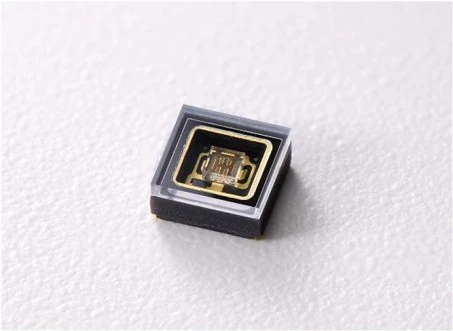

High Power SMD 265nm
Specifications
| Wavelength: | 265 nm |
|---|---|
| Size (horizontal): | 3.5 mm |
| Size (vertical): | 3.5 mm |
| Output Power (typical): | 12 mW |
| Emission Angle: | 130 degree |
| Expected Life: | > 10,000 hours |
| Driving Current: | 350 mA |
| Driving Voltage: | 6.3 V |
Download Data Sheet
Features
Leveraging state-of-the-art epitaxy, wafer
fabrication and packaging, Nikkiso delivers
unmatched performance and reliability in the UVB and UVC portions of the spectrum.
Compact 3.5 x 3.5 mm footprint
Proven reliability exceeding 10,000 hours
Industry leading performance -- 265 to 300nm
Unique design for high volume applications
Applications
Sanitize – Air, water, or surfaces
Cure – Printed coatings, Polymers, Adhesives
Measure – Gases, Contaminants
Fluorescence
Semiconductor
Food & Beverage
Water Distribution
Hospitality
Environmental
Printing
Imaging
Dermatology
Hematology
Frequently Asked Questions
What applications can the High Power SMD 265nm be used for?
What are the advantages of the High Power SMD 265nm?
What is the size of the High Power SMD 265nm?
What is the expected lifetime of the High Power SMD 265nm?
What is the power output of the High Power SMD 265nm?
