Description
Our all-purpose miniature surface mount device is small – just 3.5 mm square – but packed with power offering 30 mW resulting in superior precision, reliability and efficiency over other models. Custom wavelengths and power levels available upon request.

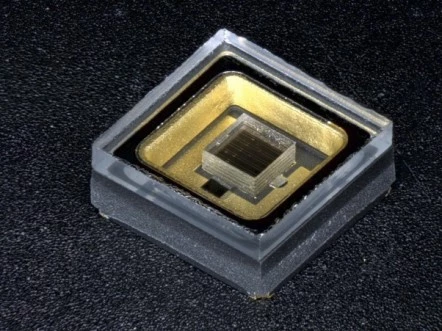

High Power SMD 280nm
Specifications
| Wavelength: | 280 nm |
|---|---|
| Size (horizontal): | 3.5 mm |
| Size (vertical): | 3.5 mm |
| Output Power (typical): | 30 mW |
| Emission Angle: | 130 degree |
| Driving Current: | 350 mA |
| Driving Voltage: | 5.6 V |
| Expected Lifetime: | > 10,000 hours |
Download Data Sheet
Features
- High Power Output 30 mW (285 nm, 300 nm)
- Standard 3.5 mm x 3.5 mm SMD
- Expected Lifetime >10,000 hours (L70 / 285 nm, 300 nm)
Applications
- Disinfection
- Analytical
- Medical
Frequently Asked Questions
What is the expected lifetime of the High Power SMD 280nm laser instrument?
The expected lifetime of the High Power SMD 280nm laser instrument is over 10,000 hours (L70 / 285 nm, 300 nm).
What are the applications of the High Power SMD 280nm laser instrument?
The High Power SMD 280nm laser instrument can be used for disinfection, analytical, and medical purposes.
Can custom wavelengths and power levels be requested for the High Power SMD 280nm laser instrument?
Yes, custom wavelengths and power levels can be requested for the High Power SMD 280nm laser instrument.
What is the power output of the High Power SMD 280nm laser instrument?
The High Power SMD 280nm laser instrument has a power output of 30 mW (285 nm, 300 nm).
What is the size of the High Power SMD 280nm laser instrument?
The High Power SMD 280nm laser instrument is a standard 3.5 mm x 3.5 mm SMD.
