Description
Our all-purpose miniature surface mount device is small – just 3.5 mm square – but packed with power offering 30 mW resulting in superior precision, reliability and efficiency over other models. Custom wavelengths and power levels available upon request.

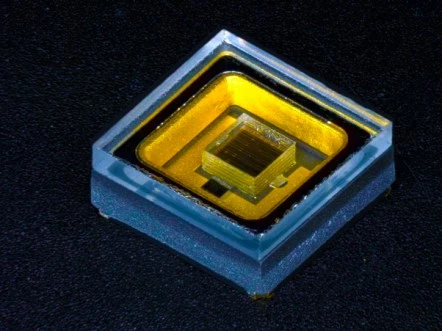

High Power SMD 285nm
Specifications
| Wavelength: | 285 nm |
|---|---|
| Size (horizontal): | 3.5 mm |
| Size (vertical): | 3.5 mm |
| Output Power (typical): | 30 mW |
| Emission Angle: | 130 degree |
| Driving Current: | 350 mA |
| Driving Voltage: | 6.0 V |
| Expected Life: | > 10,000 hours |
Download Data Sheet
Features
- High Power Output 30 mW (285 nm, 300 nm)
- Standard 3.5 mm x 3.5 mm SMD
- Expected Lifetime >10,000 hours (L70 / 285 nm, 300 nm)
Applications
- Disinfection
- Analytical
- Medical
Frequently Asked Questions
What are the applications of the High Power SMD 285nm?
The applications of the High Power SMD 285nm include disinfection, analytical, and medical purposes.
Is it possible to request custom wavelengths and power levels for the High Power SMD 285nm?
Yes, custom wavelengths and power levels are available upon request for the High Power SMD 285nm.
What is the expected lifetime of the High Power SMD 285nm?
The expected lifetime of the High Power SMD 285nm is over 10,000 hours (L70 / 285 nm, 300 nm).
What is the size of the High Power SMD 285nm?
The High Power SMD 285nm is a miniature surface mount device that is 3.5 mm square.
What is the power output of the High Power SMD 285nm?
The High Power SMD 285nm offers a power output of 30 mW.
