2nd Generation High Power SMD

Name: 2nd Generation High Power SMD
Brand: Hellma USA INC
Availability: InStock

Description

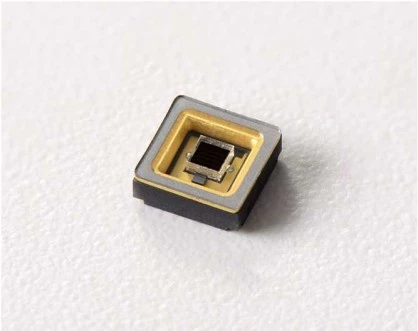

Our all-purpose miniature surface mount device is small – just 3.5 mm square – but packed with power offering 30 mW resulting in superior precision, reliability and efficiency over other models.

Alternative Power Output Options:

Power output of 12 mW at 265 nm
Power output of 30 mW at 285 nm
Power output of 30 mW at 300 nm

Custom wavelengths and power levels available upon request.

Advantages:

Mercury-free
Non-Ozone producing
Energy Efficient
Instant on / off Capability
Precision Optical Control
Low Heat Generation
Compact and Rugged
Consistent Output over Time

Specifications

Wavelength:	285 nm
Size (horizontal):	3.5 mm
Size (vertical):	3.5 mm
Output Power (typical):	45 mW
Emission Angle:	120 degree

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Leveraging state-of-the-art epitaxy, wafer
fabrication and packaging, Nikkiso delivers
unmatched performance and reliability in the UVB
and UVC portions of the spectrum.

Compact 3.5 x 3.5 mm footprint
Proven reliability exceeding 10,000 hours
Industry leading performance -- 265 to 300nm
Unique design for high volume applications

Applications

Sanitize – Air, water, or surfaces
Cure – Printed coatings, Polymers, Adhesives
Measure – Gases, Contaminants

Fluorescence
Semiconductor
Food & Beverage
Water Distribution
Hospitality
Environmental
Printing
Imaging
Dermatology
Hematology

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Ships from:

United States

Sold by:

Hellma USA INC

On FindLight:

since 2016

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What are the applications of the 2nd Generation High Power SMD?

The applications of the 2nd Generation High Power SMD include sanitizing air, water, or surfaces, curing printed coatings, polymers, and adhesives, measuring gases and contaminants, fluorescence, semiconductor, food and beverage, water distribution, hospitality, environmental, printing, imaging, dermatology, and hematology.

What are the advantages of the 2nd Generation High Power SMD?

The advantages of the 2nd Generation High Power SMD include being mercury-free, non-ozone producing, energy efficient, having instant on/off capability, precision optical control, low heat generation, compact and rugged, and consistent output over time.

What are the alternative power output options for the 2nd Generation High Power SMD?

The alternative power output options for the 2nd Generation High Power SMD are 12 mW at 265 nm, 30 mW at 285 nm, and 30 mW at 300 nm. Custom wavelengths and power levels are also available upon request.

What is the expected lifetime of the 2nd Generation High Power SMD?

The expected lifetime of the 2nd Generation High Power SMD is greater than 10,000 hours.

What is the power output of the 2nd Generation High Power SMD?

The 2nd Generation High Power SMD offers a power output of 30 mW.
