Superluminescent Diodes (SLED) for Precision Optics
Did You Know?
Superluminescent Diodes (SLEDs) are a hybrid of laser diodes and LEDs, offering the best of both worlds—high brightness and broad spectral output with low coherence. This makes them especially valuable in imaging technologies like Optical Coherence Tomography (OCT), where high-resolution and interference-free imaging is critical.
What sets SLEDs apart is their ability to produce light via amplified spontaneous emission, rather than stimulated emission like lasers. As a result, they minimize speckle and interference patterns while maintaining excellent brightness. Their wide bandwidth also enables ultra-fine axial resolution in medical and industrial imaging systems.
SLEDs are also widely used in fiber optic gyroscopes, spectroscopy, and structural health monitoring, where their stability and spectral properties enhance accuracy and performance.
Read more in our Blog
Related Resources
Frequently Asked Questions
A Superluminescent Diode (SLED) is a semiconductor light source that combines high spatial coherence similar to a laser with low temporal coherence similar to an LED. It operates near or slightly above the lasing threshold but suppresses lasing feedback, producing broadband, low-coherence emission with higher optical power and better beam quality than typical LEDs. Compared with lasers, SLEDs provide much broader spectral bandwidth and greatly reduced coherence-induced artifacts such as speckle and interference noise.
SLEDs use a laser-diode-like active region with strong optical gain but incorporate design measures (e.g., angled or anti-reflection coated facets, tilted waveguides, or integrated absorbers) to strongly reduce cavity feedback and prevent stable lasing modes. The device is typically driven at currents where amplified spontaneous emission dominates and multiple longitudinal modes overlap, resulting in a smooth broadband spectrum. The short coherence length comes from the wide optical bandwidth, which is critical in applications like OCT and interferometric sensing.
Common SLED variants include Fabry–Pérot-like ridge waveguide SLEDs, slanted-stripe or angled-facet SLEDs, and tapered or booster-amplifier-integrated designs. Ridge and angled-facet devices are often optimized for single transverse mode and moderate output power with broad spectral bandwidth, while tapered or SOA-based SLEDs can deliver higher output power at the cost of increased beam divergence and sometimes narrower bandwidth. There are also polarization-maintaining and fiber-coupled versions, which integrate waveguides or fiber pigtails to control polarization extinction ratio, coupling efficiency, and long-term stability.
Important parameters include center wavelength, spectral bandwidth (FWHM), output power (typically specified as fiber-coupled power), and spectral shape or flatness. You should also consider polarization properties (polarization-maintaining vs. non-PM), coherence length, relative intensity noise (RIN), and spectral ripple if the source is used in interferometric or imaging systems. Packaging (free-space vs. fiber-pigtailed, connector type, and thermal design) and drive conditions (recommended operating current, maximum current, and stability) are also critical for system integration.
For OCT, prioritize spectral bandwidth and smoothness (to achieve high axial resolution and low sidelobes), fiber-coupled output power, and center wavelength matching your detection optics and tissue transparency window; also review coherence length and RIN specifications. For fiber-optic sensing and telecom, match center wavelength and bandwidth to your components and standards (e.g., C- or L-band), and examine spectral stability vs. temperature, polarization extinction ratio for PM devices, and qualification data such as lifetime and Telcordia compliance. When comparing datasheets, normalize performance by drive current and case temperature, and check typical vs. minimum/maximum values rather than only typicals.

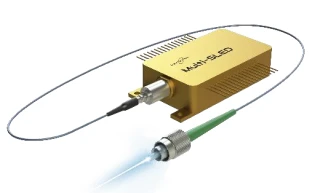

Pricing is mainly driven by wavelength band (e.g., 840 nm vs 1310/1550 nm), output power level, bandwidth, packaging complexity (butterfly, C-Mount, fiber-pigtailed, PM fiber), and qualification level (standard vs. telecom- or space-qualified). Lead times are typically a few weeks for standard catalog parts and longer for custom wavelengths, custom fiber pigtails/connectors, higher-reliability screening, or OEM-specific driver/TEC integration. Many manufacturers offer customization of center wavelength binning, spectral shaping, fiber type and length, connectorization, and, in some cases, multi-SLED modules for extended bandwidth or higher total power.
On FindLight, navigate to Incoherent Light Sources → Light Emitting Diode (LED) → Superluminescent Diodes (SLED) to see all listed devices, then use filters for center wavelength, spectral bandwidth, output power, fiber type, and package to narrow results. You can open multiple product pages in separate tabs and compare key datasheet parameters such as spectrum, power-current curves, and package drawings directly. To request a quote without registration, use the inquiry or “Request Quote” form on each product page; your message is sent directly to the supplier, and they will respond to you via email with pricing, lead time, and any customization options.
Overview of Superluminescent Diodes (SLED)
Superluminescent Diodes (SLED) are broadband semiconductor light sources that combine laser-like brightness with LED-like spectral width. They operate in a regime between spontaneous and stimulated emission, providing low spatial coherence and high optical power. On FindLight, you can compare Superluminescent Diodes (SLED) across multiple OEMs without registration and contact suppliers directly for technical clarification or quotation.
Key Specifications to Evaluate
When selecting Superluminescent Diodes (SLED) for a system, procurement engineers and R&D users typically compare:
- Center wavelength: Common bands include 750–980 nm, 1.0–1.1 µm, 1.3 µm, and 1.55 µm, matched to OCT, telecom, or sensing windows.
- Spectral bandwidth (FWHM): Often 10–100 nm. Broader bandwidth improves axial resolution in interferometric applications.
- Output power: Single-mode fiber-coupled power from a few milliwatts up to >50 mW, specified at a given drive current and temperature.
- Beam delivery: Options include single-mode fiber (SMF), polarization-maintaining fiber (PMF), or free-space outputs with integrated collimation.
- Polarization and coherence: Degree of polarization and coherence length are critical for interferometry and speckle reduction.

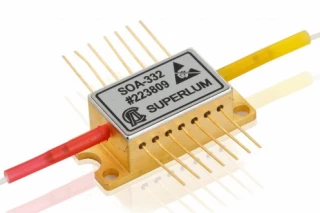

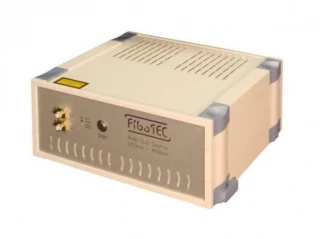

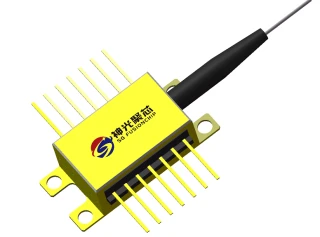

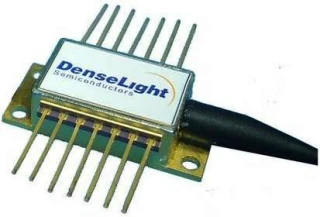

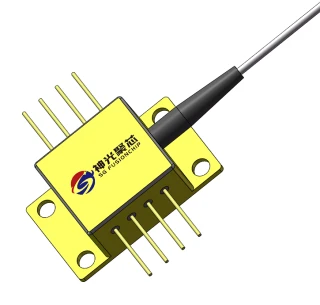

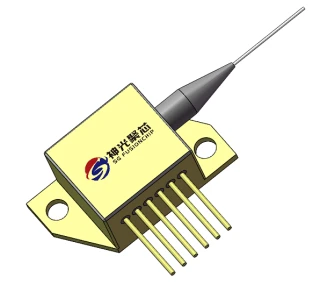

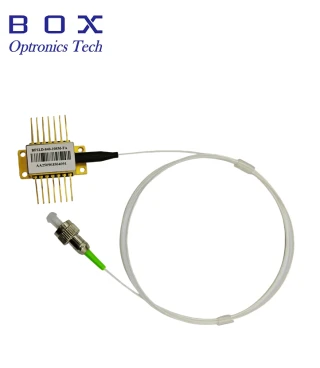

- Package type: Butterfly (14-pin), C-mount, TO-can, and turnkey SLED modules with integrated drivers and TEC control.
- Drive and thermal limits: Maximum forward current, operating temperature range, and recommended heat sinking or TEC requirements.
Typical Applications of Superluminescent Diodes (SLED)
Superluminescent Diodes (SLED) are widely used in optical coherence tomography (OCT) for biomedical imaging, fiber-optic gyroscopes, and interferometric sensors where low coherence reduces fringe artifacts. Additional uses include spectroscopy, component characterization in telecom bands, white-light interferometry, and test sources for fiber components and photonic integrated circuits.
Buyer Guidance on FindLight
For efficient sourcing of Superluminescent Diodes (SLED), start by filtering products by center wavelength and output power to match your system loss budget and detector sensitivity. Next, compare spectral bandwidth and fiber type (SMF vs PMF) against your required axial resolution and polarization stability. Review reliability data such as mean time to failure (MTTF), storage and operating temperature ranges, and recommended drive circuitry. On each product page you can request quotes or technical details from vendors directly on FindLight with no registration required, enabling quick iteration on specifications and lead times before design freeze.
