Description

Introducing the Broadband Source, a cutting-edge solution designed to meet the rigorous demands of fiberoptic component testing and white light interferometry. This advanced device combines the light of multiple Superluminescent Diodes (SLDs) to deliver a flat broadband spectrum with exceptional spectral power density. The innovative use of a Lyot-type depolarizer ensures that the light is depolarized, enhancing the accuracy and reliability of your testing processes.

Each SLD within the Broadband Source is individually stabilized, providing remarkable power stability that is crucial for precise testing. This high power-density and stability make it an ideal choice for testing fiberoptic components within a high dynamic range, especially when used alongside an optical spectrum analyzer (OSA). The device's robust performance is further complemented by its user-friendly operation, making it accessible for both novice and experienced users.

The Broadband Source is engineered for convenience and efficiency, featuring two parallel light outputs (FC/APC) and a key switch for secure operation. It operates seamlessly with a wall-plug power supply, accommodating a wide voltage range of 100-240 V / 50-60 Hz. This ensures that the device can be used in various settings without the need for additional power converters. Compact and lightweight, it is designed for easy integration into your existing setup, providing a reliable and stable light source for all your fiberoptic testing needs.

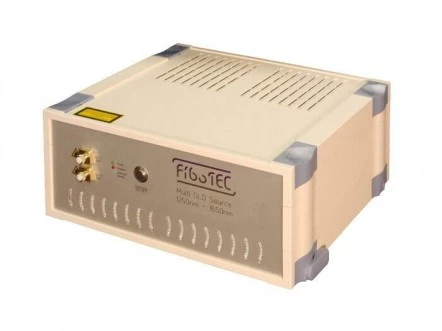

Multi-SLD Fibolux Broadband Source

Specifications

SLED Type: Fiber Coupled
Operating Power (typical): 10 mW
Center Wavelength (typical): 1450 nm
Bandwidth (FWHM): 400 nm
Optical Ports: 2
Spectral Power Density: -30 dBm/nm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wide Spectral Range: Operates within a spectral range of 1250 nm to 1650 nm, making it ideal for a variety of fiberoptic testing applications.
  • High Spectral Power Density: Offers a minimum spectral power density of –35 dBm/nm, ensuring precise and reliable measurements.
  • Stable Power Output: Features individually stabilized SLDs for high power stability, with a power stability of ± 20 mdB over 15 minutes.
  • Dual Light Outputs: Equipped with 2 parallel light outputs (FC/APC) for versatile testing configurations.
  • Easy Operation: User-friendly design with a key switch for secure operation.
  • Wall-Plug Operation: Compatible with 100-240 V / 50-60 Hz input, allowing for global use.
  • Compact and Lightweight: Dimensions of 310x270x150 mm and a weight of 2 kg make it easy to integrate into various setups.
  • Environmental Conditions: Operates in non-condensing environments between 5°C and 35°C, with storage conditions from -20°C to 60°C.
  • Regulatory Compliance: CE certified for safety and reliability.

Applications

  • Fiber Optic Component Testing: Enables precise evaluation of insertion loss, reflection, and spectral response.
  • White-Light Interferometry: Provides stable, depolarized broadband light for accurate measurements.
  • Optical Spectrum Analysis: Supports characterization across a wide dynamic range when paired with OSAs.
  • Laboratory and R&D Environments: Ideal for research institutions and industrial testing setups.

Frequently Asked Questions

What is the purpose of the Multi-SLD Fibolux Broadband Source?
The Multi-SLD Fibolux Broadband Source is used for accurate testing of fiberoptic components within a high dynamic range along with an optical spectrum analyzer (OSA).
How does the Multi-SLD Fibolux Broadband Source achieve a flat broadband spectrum?
The Multi-SLD Fibolux Broadband Source combines the light of multiple SLDs to achieve a flat broadband spectrum with high spectral power density.
What are the features of the Multi-SLD Fibolux Broadband Source?
The Multi-SLD Fibolux Broadband Source features 2 parallel light outputs, a Lyot-depolarizer, easy operation, and wall-plug operation with 100-240 V / 50-60 Hz input.
What are the applications of the Multi-SLD Fibolux Broadband Source?
The Multi-SLD Fibolux Broadband Source is used for testing of fiberoptic components and white light interferometry.
What are the specifications of the Multi-SLD Fibolux Broadband Source?
The Multi-SLD Fibolux Broadband Source has a spectral range of 1250 nm - 1650 nm, a spectral power density of min. -35 dBm/nm, a total power of 2x typ. 8 mW, and a power stability of ± 20 mdB @15 min. It weighs 2 kg and operates in non-condensing environmental conditions of 5°C - 35°C.

Got more questions? Use the inquiry form to ask the supplier directly.
