1550 nm Wide Band Superluminescent LED

Name: 1550 nm Wide Band Superluminescent LED
Brand: CSRayzer Optical Technology
Availability: InStock

Description

Introducing the RZSLD-1550-xx-xx--xx-14, a 1550 nm wide band superluminescent LED with exceptional performance characteristics. With a typical fiber output power of 10mW and a typical 3dB bandwidth of 100nm, this LED is a reliable and efficient option for a variety of applications.

The LED's spectrum covers a wide 1510-1590nm bandwidth with -25dBm/0.1nm resolution, and features a spectral modulation of less than 0.5dB. It comes in a 14-pin BTF package and is compatible with single mode fiber.

This LED is a versatile choice for a range of applications, including fiber optic gyroscope, optical test instruments, fiber optic sensors, fiber optic communications, optical coherence tomography, biomedical imaging devices, and clinical healing equipment.

With its outstanding technical specifications and compatibility with various applications, the RZSLD-1550-xx-xx--xx-14 is a reliable and efficient choice for any project.

Specifications

SLED Type:	Fiber Coupled, No Fiber Coupling
Operating Power (typical):	10 mW
Center Wavelength (typical):	1550 nm
Bandwidth (FWHM):	30 nm
Reverse Voltage:	2 V
Forward Current:	650 mA
Forward Voltage:	3.0 V
SLED Temperature:	0 - 70 degC
TEC Voltage:	3.60 V
TEC Current:	2.6 A
ESD:	500 V
Central Wavelength Range:	1540 - 1570 nm
Power Range:	8 - 10 mW
Fiber:	SMF-28
MFD:	10 um
Cladding Diameter:	125 um
Coating Diameter:	245 um
Fiber Pigtail Length:	1 m
Fiber Bending Radius:	>40 mm

Download Data Sheet

Features

Typical Ex-fiber output power of 10mW

Typical 3dB bandwidth of 100nm

Spectrum covers 1510-1590nm bandwidth -25dBm/0.1nm resolution

Spectral modulation of <0.5dB

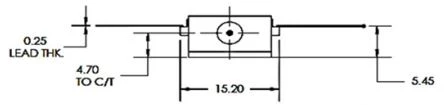

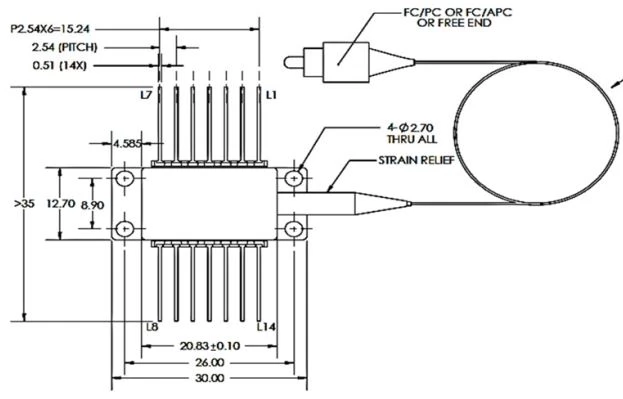

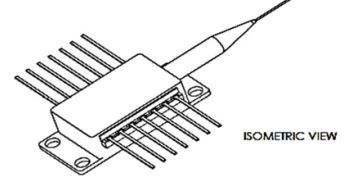

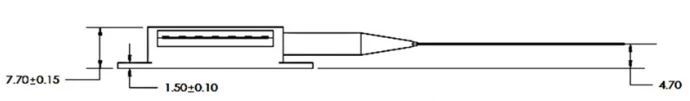

14-pin BTF package

Single mode fiber

Applications

Fiber Optic Gyroscope

Optical Test Instrument

Fiber Optic Sensors

Fiber Optic Communications

Optical Coherence Tomography

Biomedical Imaging Device

Clinical Healing Equipment

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

CSRayzer Optical Technology

On FindLight:

since 2020

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is a superluminescent LED?

A superluminescent LED (SLED) is a type of light-emitting diode that emits a broad spectrum of light with high optical power. It is used in applications where a high-power, broadband light source is required.

What is the wavelength of the 1550 nm Wide Band Superluminescent LED?

The 1550 nm Wide Band Superluminescent LED emits light within the wavelength range of 1520-1580 nm, with a central wavelength of 1550 nm.

What is the output power of the 1550 nm Wide Band Superluminescent LED?

The output power of the LED varies depending on the specific model. Please refer to the product datasheet for detailed specifications.

What is the typical bandwidth of the 1550 nm Wide Band Superluminescent LED?

The typical bandwidth of the LED is 50-70 nm.

What is the application of the 1550 nm Wide Band Superluminescent LED?

The LED can be used in a variety of applications, including optical coherence tomography (OCT), fiber optic gyroscopes, fiber optic sensors, and more.

What is the lifespan of the 1550 nm Wide Band Superluminescent LED?

The lifespan of the LED varies depending on the specific model and operating conditions. Please refer to the product datasheet for detailed specifications.

What is the typical fiber output power of the RZSLD-1550-xx-xx--xx-14 LED?

The typical fiber output power of the RZSLD-1550-xx-xx--xx-14 LED is 10mW.

What is the typical 3dB bandwidth of the RZSLD-1550-xx-xx--xx-14 LED?

The typical 3dB bandwidth of the RZSLD-1550-xx-xx--xx-14 LED is 100nm.

What is the spectrum coverage of the RZSLD-1550-xx-xx--xx-14 LED?

The spectrum of the RZSLD-1550-xx-xx--xx-14 LED covers a wide 1510-1590nm bandwidth.

What is the spectral modulation of the RZSLD-1550-xx-xx--xx-14 LED?

The spectral modulation of the RZSLD-1550-xx-xx--xx-14 LED is less than 0.5dB.

What type of fiber is the RZSLD-1550-xx-xx--xx-14 LED compatible with?

The RZSLD-1550-xx-xx--xx-14 LED is compatible with single mode fiber.
