Description

The Distributed Feedback Laser (DFB) from DAYY Photonics Corporation is a cutting-edge optical solution designed to meet the demanding needs of modern telecommunications and spectroscopy applications. This product family offers a broad selection of wavelengths, ranging from 1530nm to 1610nm, ensuring comprehensive coverage of the ITU grid for Dense Wavelength Division Multiplexing (DWDM) systems. The DFB laser module is particularly well-suited for gas detection applications, including tunable diode laser spectroscopy and cavity ring down spectroscopy, thanks to its precise wavelength control and high output power.

Each DFB laser is crafted with a high-performance, multi-quantum well (MQW) distributed-feedback laser chip, ensuring exceptional reliability and performance. The laser's center wavelength tolerance is maintained at CW +/- 0.2nm, with typical linewidths (FWHM) ranging from 1-3MHz. This precision makes it an ideal choice for applications requiring high spectral purity and stability. The laser module is available with a variety of light output options, including FC/APC connectors, with optional FC/PC or SMA configurations.

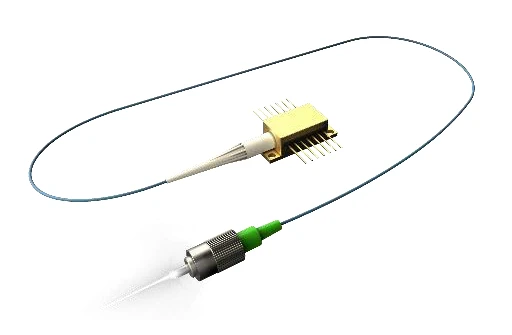

DAYY Photonics' DFB lasers are housed in industry-standard 14-pin butterfly packages or TO-Can packages, both of which are hermetically sealed to protect the internal components. These packages include a built-in thermoelectric cooler, thermistor, monitor diode, and integrated isolator, ensuring optimal performance and longevity. The product family is compliant with Telcordia GR-468 standards and adheres to RoHS/Reach regulations, underscoring its commitment to quality and environmental responsibility.

DAYY Photonics DFB Laser for DWDM and Gas Detection Applications

Visit the RPMC Lasers, Inc. Store

Specifications

SLED Type: Fiber Coupled, No Fiber Coupling
Operating Power (typical): 10 mW
Center Wavelength (typical): 1550 nm
Center Wavelength Range: 1530nm – 1610nm
Center Wavelength Tolerance: CW +/- 0.2nm
Linewidths (FWHM): 1-3MHz
High Output Power: ≥10mW
Package Type: 14-pin butterfly package and TO-Can packages
Compliance: Telcordia GR-468, RoHS/Reach

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-performance, multi-quantum well (MQW) distributed-feedback (DFB) laser chip
  • Center Wavelengths: Ranging from 1530nm to 1610nm
  • Center Wavelength Tolerance: CW +/- 0.2nm
  • Linewidths (FWHM): Typical 1-3MHz
  • High Output Power: ≥10mW
  • Light Output: FC/APC Connector (Optional FC/PC or SMA)
  • Product Family: Covers full ITU grid for 100GHz spacing in DWDM systems
  • Package Options: Industry standard 14-pin butterfly package and TO-Can packages available
  • Built-in Components: Thermoelectric cooler, thermistor, and monitor diode
  • Integrated Isolator
  • Fiber Options: Single mode (SM) or Polarization maintaining (PM) fiber available
  • Compliance: Meets Telcordia GR-468 standard and is RoHS/Reach compliant

Applications

Applications for the DAYY Photonics OSE3 Distributed Feedback Laser DFB Module

  • DWDM Optical Communication Systems: Ideal for dense wavelength division multiplexing networks using ITU-grid wavelengths across the 1530 nm to 1610 nm C-band and L-band.
  • Telecommunications Network Equipment: Suitable for high-performance telecom transmitters, optical transport platforms, metro networks, access networks, and long-haul fiber optic communication systems.
  • 100 GHz ITU Grid Channel Sources: Supports wavelength-specific laser sourcing for DWDM systems requiring stable center wavelengths and narrow linewidth operation.
  • Tunable Diode Laser Absorption Spectroscopy TDLAS: Excellent for precision gas detection using narrow linewidth DFB laser emission in the near-infrared wavelength range.
  • Cavity Ring-Down Spectroscopy CRDS: Well suited for high-sensitivity trace gas analysis, environmental monitoring, and laboratory spectroscopy requiring stable, narrow linewidth laser sources.
  • Industrial Gas Detection: Can be used in optical gas sensing systems for detecting compatible absorption lines of gases such as carbon dioxide, acetylene, hydrogen cyanide, carbon monoxide, and other near-infrared absorbing species.
  • Environmental Monitoring: Supports remote and in-situ monitoring of greenhouse gases, industrial emissions, air quality, and atmospheric trace gases.
  • Fiber Optic Sensor Systems: Designed for use in distributed fiber sensing, fiber Bragg grating interrogation, structural health monitoring, strain sensing, temperature sensing, and pressure sensing applications.
  • Optical Time-Domain Reflectometry OTDR: Applicable as a narrow linewidth laser source for fiber characterization, fault location, link diagnostics, and optical network maintenance systems.
  • Biomedical Sensing: Suitable for near-infrared biomedical sensing platforms, optical diagnostics, photonic biosensing, and spectroscopy-based analysis systems.
  • Laser Source Modules: Ideal for integration into turnkey laser source instruments, benchtop optical test systems, OEM photonics modules, and laboratory research platforms.
  • Coherent Optical Systems: Can be used as a stable seed laser or optical carrier source in coherent detection, coherent communication, and phase-sensitive optical measurement systems.
  • Optical Component Testing: Useful for testing filters, multiplexers, demultiplexers, modulators, isolators, circulators, photodetectors, and other fiber optic components operating in the C-band and L-band.
  • Photonic Integrated Circuit Testing: Supports characterization of silicon photonics, InP photonic integrated circuits, optical waveguides, resonators, and telecom-band photonic devices.
  • Optical Frequency Reference Systems: Suitable for wavelength calibration, frequency stabilization, gas-cell referencing, and precision photonics experiments requiring stable DFB laser emission.
  • Research and Development Laboratories: A strong choice for universities, national labs, and industrial R&D facilities working in fiber optics, spectroscopy, optical communications, and laser-based sensing.
  • Remote Sensing and Lidar Seed Sources: Applicable as a seed laser for eye-safer 1550 nm band lidar, coherent lidar, FMCW lidar, and remote optical sensing systems where narrow linewidth and wavelength stability are required.
  • Metrology and Instrumentation: Supports high-precision optical measurement instruments, interferometry systems, wavelength meters, spectrum analysis setups, and calibration platforms.
  • Optical Amplifier Testing: Useful for EDFA and Raman amplifier characterization, gain measurement, noise figure testing, and C-band or L-band optical amplifier development.
  • OEM Integration: The 14-pin butterfly package, TO-Can options, built-in TEC, thermistor, monitor photodiode, optical isolator, and SM or PM fiber options make the module suitable for compact OEM photonic systems.

Frequently Asked Questions

What is the DAYY Photonics OSE3 Distributed Feedback (DFB) laser used for?
The DAYY Photonics OSE3 DFB laser is designed for applications requiring a stable, narrow-linewidth near-infrared laser source, including DWDM telecommunications systems, gas detection, tunable diode laser spectroscopy (TDLAS), cavity ring-down spectroscopy, fiber optic sensors, OTDR systems, biomedical sensing, and general laser source applications.
What wavelength range is available for the OSE3 DFB laser?
The OSE3 DFB laser product family covers center wavelengths from 1530 nm to 1610 nm. This range supports the full ITU wavelength grid for 100 GHz spaced DWDM systems, making it suitable for C-band and L-band optical communication and sensing applications.
Is the OSE3 DFB laser suitable for DWDM telecom systems?
Yes. The OSE3 DFB laser is optimized for DWDM systems with center wavelengths covering the full ITU grid at 100 GHz spacing. It offers narrow linewidth performance, high output power, integrated optical isolation, and industry-standard packaging, all of which are important for dense wavelength division multiplexing and fiber optic telecommunications.
What is the linewidth of the DAYY Photonics OSE3 DFB laser?
The typical full width at half maximum (FWHM) linewidth of the OSE3 DFB laser is 1 MHz to 3 MHz. This narrow linewidth makes it well suited for spectroscopy, gas sensing, coherent optical applications, and precision fiber optic sensing where spectral purity is important.
What output power does the OSE3 DFB laser provide?
The OSE3 DFB laser provides high optical output power of at least 10 mW. The actual output power may depend on the selected wavelength, package type, fiber option, and operating conditions.
What package and fiber options are available for the OSE3 DFB laser?
The OSE3 DFB laser is available in hermetically sealed industry-standard 14-pin butterfly packages and TO-Can packages. Fiber output options include single-mode (SM) fiber or polarization-maintaining (PM) fiber, with FC/APC connector as standard and optional FC/PC or SMA connectors.
Does the OSE3 DFB laser include temperature control and monitoring components?
Yes. The OSE3 DFB laser module includes an integrated thermoelectric cooler (TEC), thermistor, monitor photodiode, and optical isolator. These built-in components help stabilize wavelength and output power, monitor laser performance, and improve reliability in telecom, spectroscopy, and sensing systems.

Got more questions? Use the inquiry form to ask the supplier directly.
