Surface Emitting LED SD03S
Dowa Electronics Materials Co Ltd
Surface Emitting LED.
  • Wavelength: 810 nm
  • Size (horizontal): 0.00035 mm
  • Size (vertical): 0.00035 mm
  • Output Power (typical): -- mW
  • Emission Angle: -- degree
Data Sheet
Surface Emitting LED NR4J-33
Dowa Electronics Materials Co Ltd
Surface Emitting LED.
  • Wavelength: 730 nm
  • Size (horizontal): 0.00032 mm
  • Size (vertical): 0.00032 mm
  • Output Power (typical): -- mW
  • Emission Angle: -- degree
Data Sheet
Surface Emitting LED PR7A
Dowa Electronics Materials Co Ltd
Surface Emitting LED.
  • Wavelength: 660 nm
  • Size (horizontal): 0.00028 mm
  • Size (vertical): 0.00028 mm
  • Output Power (typical): -- mW
  • Emission Angle: -- degree
Data Sheet
QuasarBrite Light Emitting Diodes SMD-LX0707RGB-TR
Lumex
A pioneer in the art of LED technology, Lumex offers one of the industry\'s largest selections of through-hole and surface-mount LEDs with an expansive selection of viewing and packaging options.
  • Wavelength: 630 nm
  • Size (horizontal): -- mm
  • Size (vertical): -- mm
  • Output Power (typical): -- mW
  • Emission Angle: 260 degree
Data Sheet
QuasarBrite Light Emitting Diodes SMD-LXR1204RGBC-TR
Lumex
A pioneer in the art of LED technology, Lumex offers one of the industry\'s largest selections of through-hole and surface-mount LEDs with an expansive selection of viewing and packaging options.
  • Wavelength: 630 nm
  • Size (horizontal): -- mm
  • Size (vertical): -- mm
  • Output Power (typical): -- mW
  • Emission Angle: 260 degree
Data Sheet
QuasarBrite Light Emitting Diodes SMD-LX5050RGB-TR
Lumex
A pioneer in the art of LED technology, Lumex offers one of the industry\'s largest selections of through-hole and surface-mount LEDs with an expansive selection of viewing and packaging options.
  • Wavelength: 625 nm
  • Size (horizontal): -- mm
  • Size (vertical): -- mm
  • Output Power (typical): -- mW
  • Emission Angle: 260 degree
Data Sheet

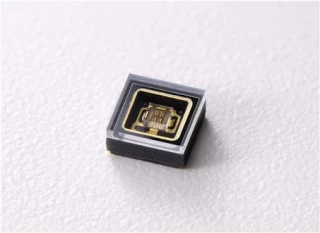

Our all-purpose miniature surface mount device is small – just 3.5 mm square – but packed with power offering 30 mW resulting in superior precision, reliability and efficiency over other models. Alternative Power Output Options: Power output of 12 mW at 265 nm Power output of 30 mW at 285 nm Power output of 30 mW at 300 ...
  • Wavelength: 285 nm
  • Size (horizontal): 3.5 mm
  • Size (vertical): 3.5 mm
  • Output Power (typical): 45 mW
  • Emission Angle: 120 degree
Data Sheet
Our all-purpose miniature surface mounted device (SMD) deep ultraviolet (DUV) LED is small – just 3.5 mm square – but packed with power offering 30 mW resulting in superior precision, reliability and efficiency over other models. Custom wavelengths and power levels available upon request. *See data sheet for ...
  • Wavelength: 265 nm
  • Size (horizontal): 3.5 mm
  • Size (vertical): 3.5 mm
  • Output Power (typical): 12 mW
  • Emission Angle: 130 degree
  • ...
Data Sheet

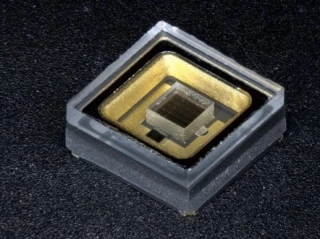

Our all-purpose miniature surface mount device is small – just 3.5 mm square – but packed with power offering 30 mW resulting in superior precision, reliability and efficiency over other models. Custom wavelengths and power levels available upon request.
  • Wavelength: 280 nm
  • Size (horizontal): 3.5 mm
  • Size (vertical): 3.5 mm
  • Output Power (typical): 30 mW
  • Emission Angle: 130 degree
  • ...
Data Sheet
Our all-purpose miniature surface mount device is small – just 3.5 mm square – but packed with power offering 30 mW resulting in superior precision, reliability and efficiency over other models. Custom wavelengths and power levels available upon request.
  • Wavelength: 300 nm
  • Size (horizontal): 3.5 mm
  • Size (vertical): 3.5 mm
  • Output Power (typical): 30 mW
  • Emission Angle: 130 degree
  • ...
Data Sheet
HSMF-A203-A00J1
WIN SOURCE
LED GREEN/RED CLEAR 4PLCC SMD / Surface Mount LED Indicators, PLCC-4 SMT LEDs.
  • Wavelength: 558 nm
  • Size (horizontal): 3.2 mm
  • Size (vertical): 2.8 mm
  • Output Power (typical): -- mW
  • Emission Angle: 120 degree
Data Sheet
WP1503CB/GD
WIN SOURCE
5MM RA.GRN.LED / T-1 3/4 (5mm) RIGHT ANGLE LED INDICATOR.
  • Wavelength: 565 nm
  • Size (horizontal): 5 mm
  • Size (vertical): 5 mm
  • Output Power (typical): -- mW
  • Emission Angle: 60 degree
Data Sheet

Did You know?

SMD stands for Surface Mounted Device, a special category of LEDs, which have tiny metallic contacts that can be directly soldered to circuit boards. Mass produced electronic circuit boards need to be manufactured in a highly mechanized fashion in order to save on manufacturing costs. However, traditional leaded electronic components do not lend themselves to such an approach. In industry, SMDs have largely replaced the through-hole-technology (THT) construction method of fitting components with wire leads into holes in the circuit board. The most common example of an SMD is the smart phone. It has components that need to be packed very tightly in a very slim case, so it is not feasible use THT. Surface mounted technologies can be smaller than THT because they have smaller leads, or no leads at all, making them easier to shrink down.
