Description

EQ Photonics offers a large number of different SLEDs in cooled butterfly or TO packages. The superluminescent diode emission ranges from 1200 – 1700 nm.
On one hand SLDs are broadband light sources (typically 50 nm) with a low temporal coherence, as is known for LEDs. On the other hand superluminescent diodes have a high brightness (power) and a high spatial coherence – comparable to lasers.
This makes them particularly suitable for applications that require a high beam quality (including coupling into single-mode fibers), but do not tolerate any disruptive interference effects (speckle-free).

Enabled by DensePICTM spread spectra bandgap engineering technology, future generations of DenseLight SLEDs promise higher chip powers (up to 50mW possible), and broader spectral bands (beyond 120nm). Higher levels of integration may feature integrated SLEDs with phase modulators, optical couplers and photodetectors into a complete optical sensor chipset.

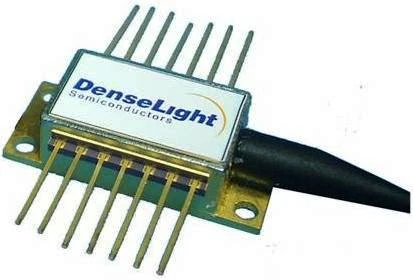

EQ Photonics GmbH - Superluminescent Diode - DL-CS5169A

EQ Photonics

Specifications

SLED Type: Fiber Coupled
Operating Power (typical): 16 mW
Center Wavelength (typical): 1550 nm
Bandwidth (FWHM): 80 nm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Output power: 0.1 …40 mW
  • Wavelength 1200 nm … 1700 nm
  • Bandwidth up to 100 nm
  • Low spectral ripple (typ. < 0.3 dB)
  • Symmetric gaußian spectrum
  • FC/APC Single-mode-fiber output SMF
  • Optional polarisation maintain fiber PMF
  • Optional SLED sets with 450 nm bandwidth
  • Optional with monitor diode Output power: 0.1 …40 mW
  • Wavelength 1200 nm … 1700 nm
  • Bandwidth up to 100 nm
  • Low spectral ripple (typ. < 0.3 dB)
  • Symmetric gaußian spectrum
  • FC/APC Single-mode-fiber output SMF
  • Optional polarisation maintain fiber PMF
  • Optional SLED sets with 450 nm bandwidth
  • Optional with monitor diode

Applications

  • Quality Assurance
  • Tomography
  • Thickness Measurement
  • Fiber Optic Sensing FOS
  • White light Interferometry
  • Optical Coherence Tomography
  • Temperature and Strain Measurement
  • Navigation FOG
